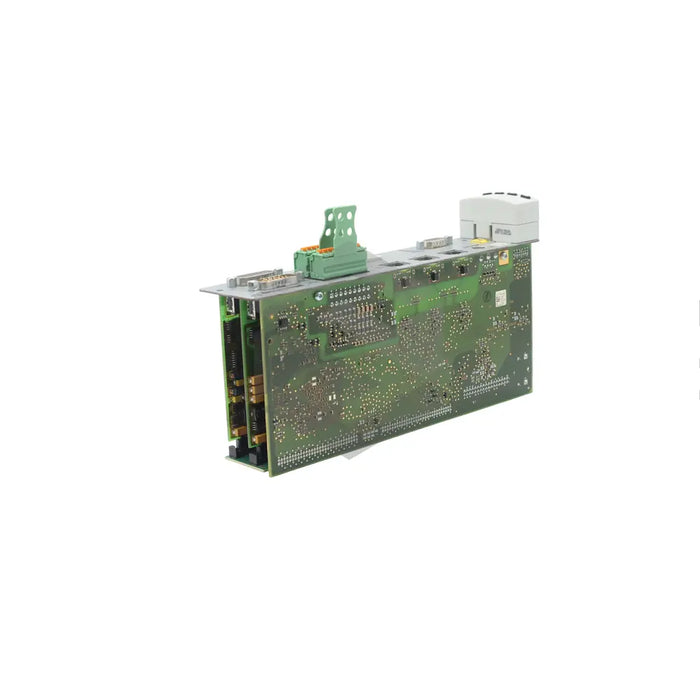

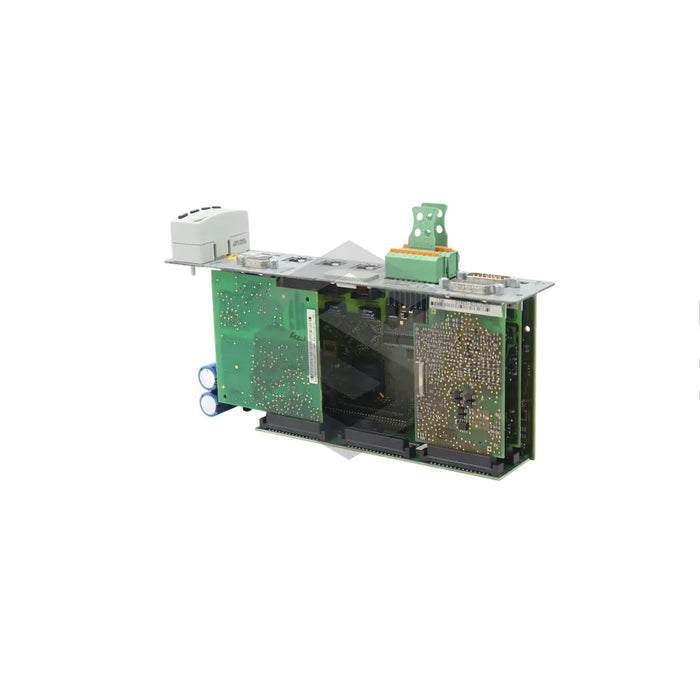

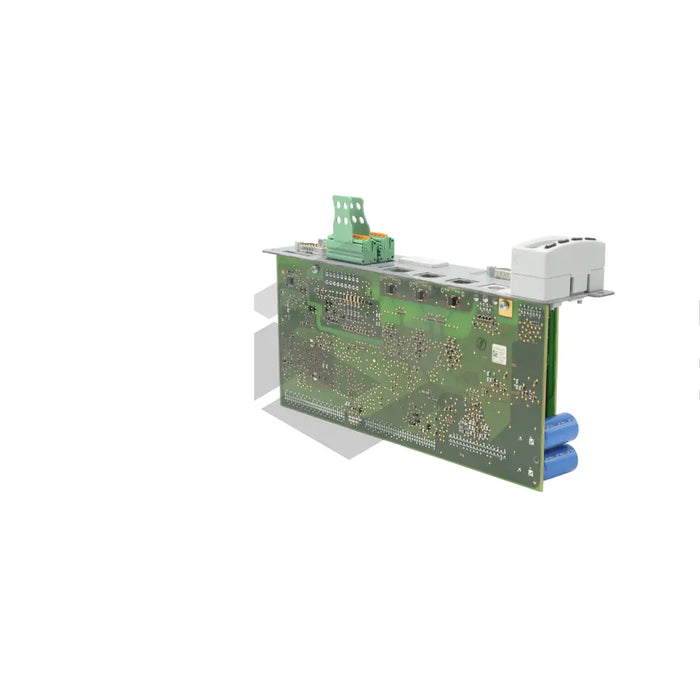

S image of CSH01.3C-PB-EN1-EN2-CCD-NN-S-NN-FW

CSH01.3C-PB-EN1-EN2-CCD-NN-S-NN-FW

by Bosch Rexroth Indramat
$2,346.34 - $19,129.22
$2,346.34
$2,346.34 - $19,129.22
$2,346.34
The CSH01.3C-PB-EN1-EN2-CCD-NN-S-NN-FW is a top-tier CSH control section produced by Bosch Rexroth Indramat, recognized for its commitment to delivering highly-functional drive and motion control systems. Integral to the acclaimed IndraDrive system, this control section wields numerous interfaces within the ADVANCED collection. Its encoder evaluation interface caters to multiple encoders with a 5V supply voltage, used for capturing speed, position, and rotation details inside the system. The control section is also equipped with a Resolver and HSF encoder evaluation interface for 8V DC or 18.2V peak-peak systems. Ideal for industrial usage, its category C3 classification under IEC 61800‑3 indicates the need for remedial interference measures in residential settings. It supports a PROFIBUS communication module for swift data transfer and control, alongside a cross communication module for intra-system interactions. Furthermore, this model accepts firmware utilization.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

IndraDrive

Component

CSH Control Section

Range Type

ADVANCED

Encoder Evaluation Interface

Supports encoders with a supply voltage of 5V

Supported Encoders

Sin-cos encoder (1 Vpp) with EnDat 2.1 and sense lines, sin-cos encoder (1 Vpp) with reference track, 5V-TTL square-wave encoder

Additional Encoder Interface

Resolver and HSF encoder for supply voltage of DC 8V or AC 18.2V peak-peak

Usage Environment

Industrial areas (IEC 61800-3 Category C3)

Communication Module

PROFIBUS

Additional Module

Cross communication module for system interaction

Firmware Capability

Permitted
