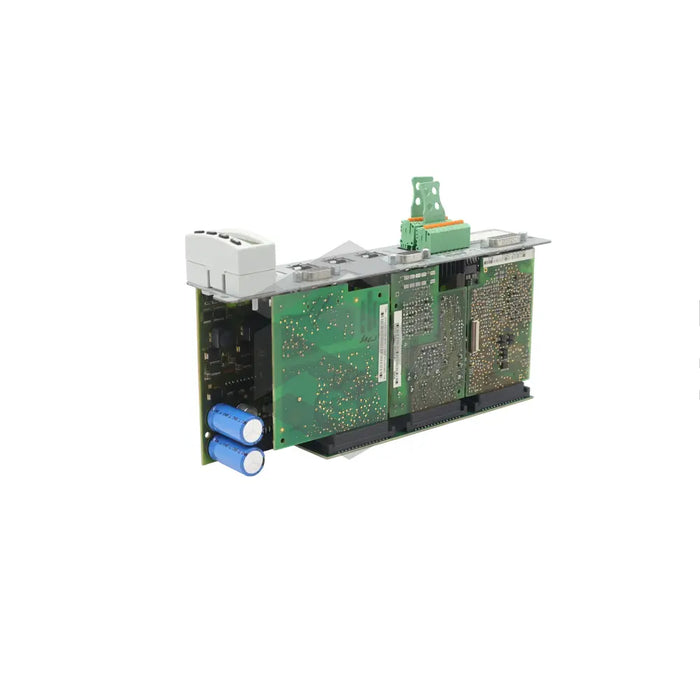

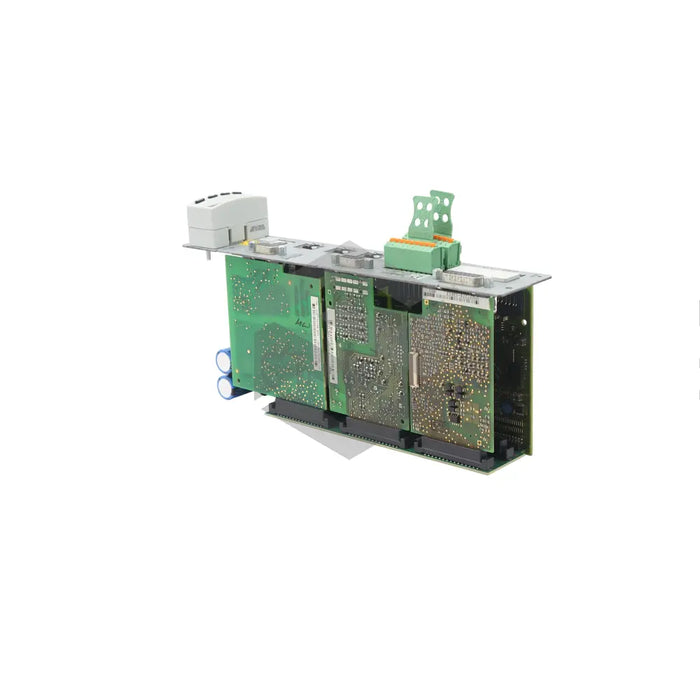

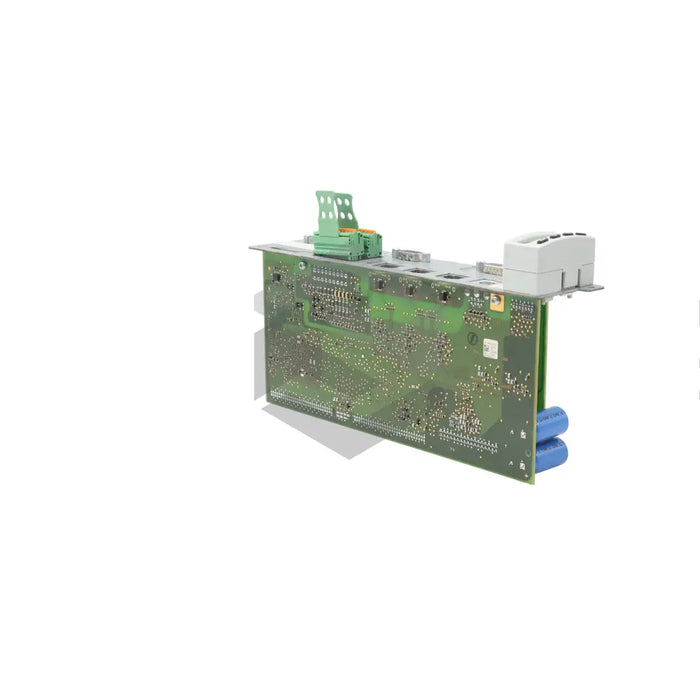

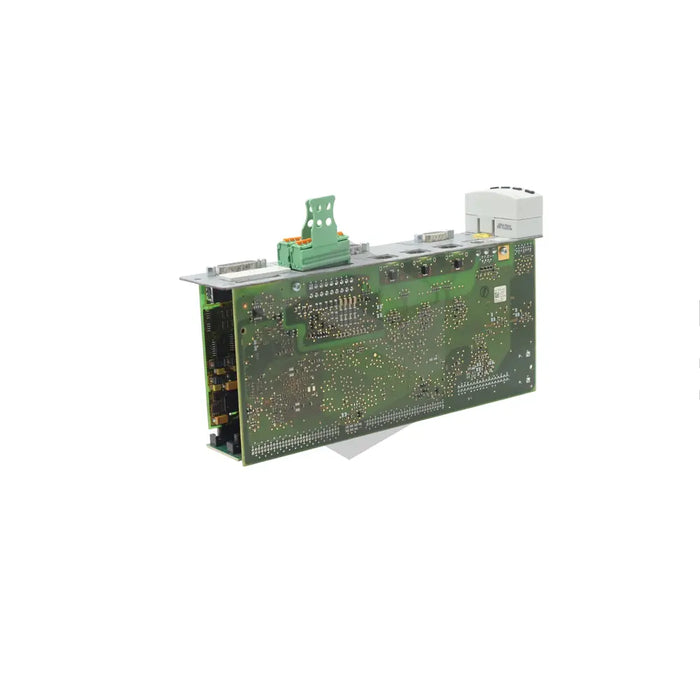

S image of CSH01.3C-PB-EN1-NNN-CCD-L2-S-NN-FW

CSH01.3C-PB-EN1-NNN-CCD-L2-S-NN-FW

by Bosch Rexroth Indramat
$2,346.34 - $19,129.22
$2,346.34
$2,346.34 - $19,129.22
$2,346.34
The CSH01.3C-PB-EN1-NNN-CCD-L2-S-NN-FW is a compact single-axis control section in the Bosch Rexroth Indramat CSH series, designed to control electric motors and oversee their function. As part of Rexroth IndraDrive system, it facilitates efficient and safe automation. It features a standard control panel that allows a wide range of control functions, including setting the drive address and setting the analog outputs. The unit employs a PROFIBUS communication module and a cross-communication module that corresponds to the IEEE 802.3 standard for smooth automation tasks. It works with encoders having a supply voltage of DC 8V or AC 18.2V peak-peak, like Resolver without data memory and Digital servo feedback. Stable, vibration-resistant connections are ensured by spring terminals and screw terminal blocks. The model also includes a Safe Torque Off safety module.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Manufacturer

Bosch Rexroth Indramat

Product Type

Drive Controller

Series

CSH

Control Functions

Setting the drive address, Establishing the position data reference, Starting the basic load defaults procedure, Setting the analog outputs

Communication Modules

PROFIBUS, Cross communication module

Compatible Encoders

Resolver without data memory, Hall sensor box SHL01.1, Digital servo feedback by Rexroth

Encoder Interface

Resolver and HSF encoder evaluation

Connection Points

Spring terminals and screw terminal blocks

Safety Technology Module

Safe Torque Off

Suitability

Industrial environments

Encoder Supply Voltage

DC 8V or AC 18.2V peak-peak

IEEE Standard

802.3

Indicator

LEDs for operating states and data transmission statuses
