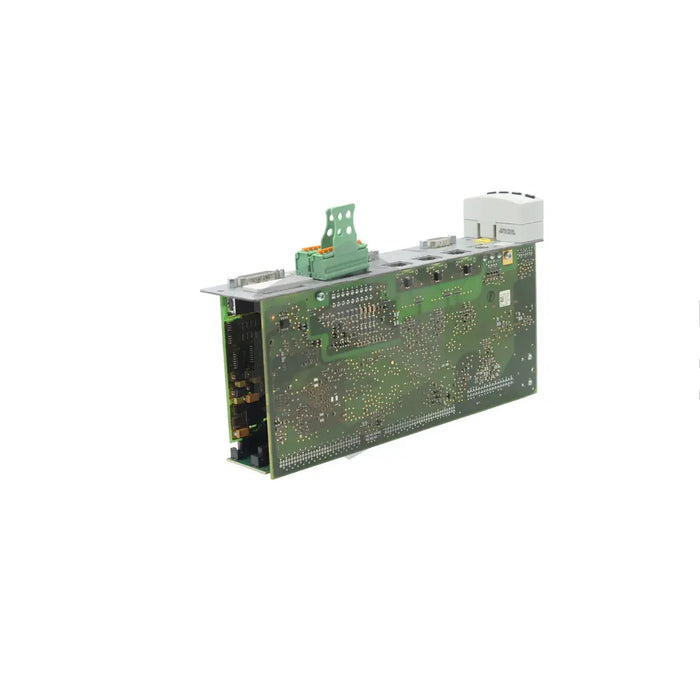

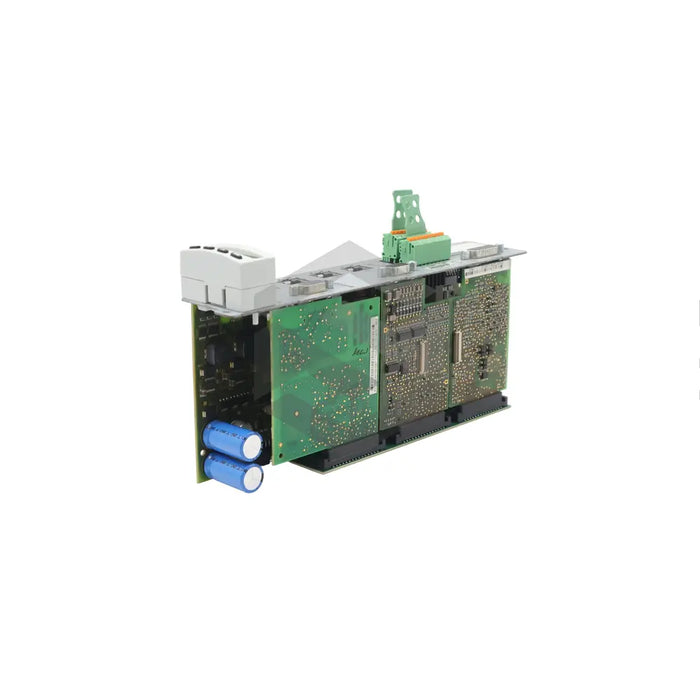

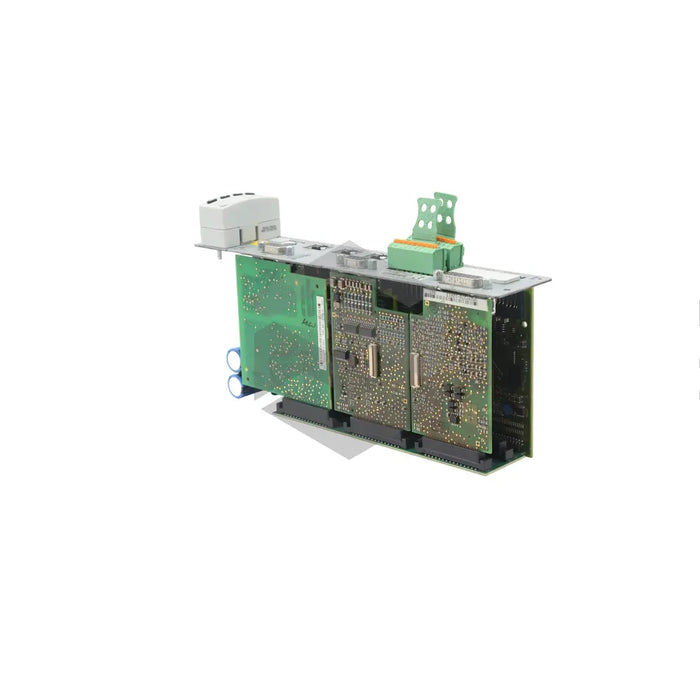

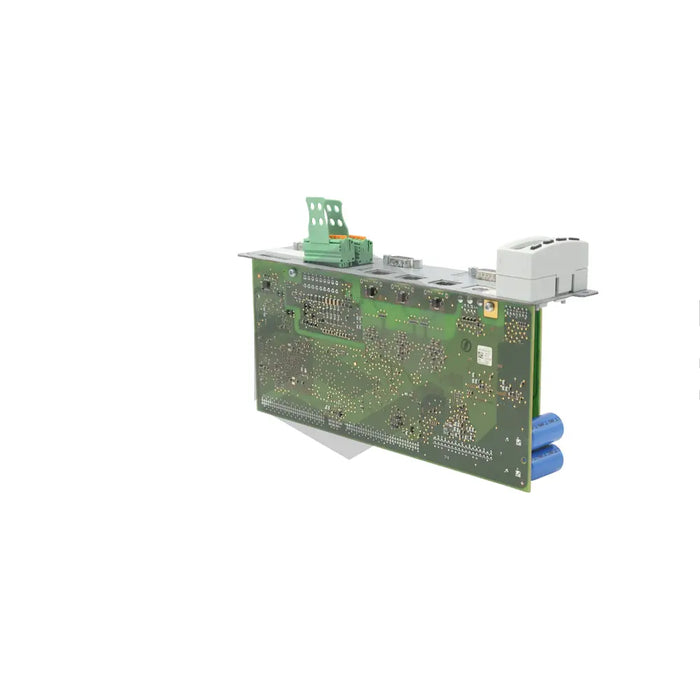

S image of CSH01.3C-PB-EN1-NNN-CCD-S2-S-NN-FW

CSH01.3C-PB-EN1-NNN-CCD-S2-S-NN-FW

by Bosch Rexroth Indramat
$2,346.34 - $19,129.22
$2,346.34
$2,346.34 - $19,129.22
$2,346.34
Produced by Bosch Rexroth Indramat, the CSH01.3C-PB-EN1-NNN-CCD-S2-S-NN-FW is a single-axis CSH control section from the IndraDrive ADVANCED range. It's a reconfigurable model known for precision, reliability, and accuracy. It functions as part of drive controllers to manage and track electric motor operations. It has an inrush current of 4A, a maximum pulse width of 100ms, and is outfitted with a communication module that adheres to the IEEE 802.3 standards for fast information transfer. To monitor connection and data transmission, LEDs are installed. The control section also includes a PROFIBUS communication module ideal for applications requiring high-speed control and motion synchronization. The product also features Safe Motion, with safety functions for speed, direction, and communication. This control section connects to encoder systems via a Resolver and HSF encoder evaluation interface and operates at switching frequencies of 2, 4, 8, 12, and 16 kHz. Software firmware updates are also supported.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

IndraDrive

Product Category

Single-axis CSH control sections in the ADVANCED range

Product Type

CSH01.3C-PB-EN1-NNN-CCD-S2-S-NN-FW

Inrush Current

4A

Maximum Pulse Width

100ms

Communication Standard

IEEE 802.3

Control Feature

Built-in LEDs for connection and data transmission status monitoring

Communication Protocol

PROFIBUS

Integrated Feature

Safe Motion for application-related safety functions

Supply Voltage for Encoder Connection

DC 8 V or AC 18.2 V peak-peak

Encoder Evaluation Interface

Resolver and HSF

Compatible Encoders

SHL01.1 Hall sensor box, Resolver without data memory, Digital servo feedback by Rexroth (encoder interface HSF for MHD motors)

Switching Frequencies

2 kHz, 4 kHz, 8 kHz, 12 kHz, and 16 kHz

Additional Feature

Can be used with firmware.
