CSH01.3C-PB-EN2-EN1-CCD-S2-S-NN-FW

by Bosch Rexroth Indramat
$2,346.34 - $19,129.22
$2,346.34
$2,346.34 - $19,129.22
$2,346.34

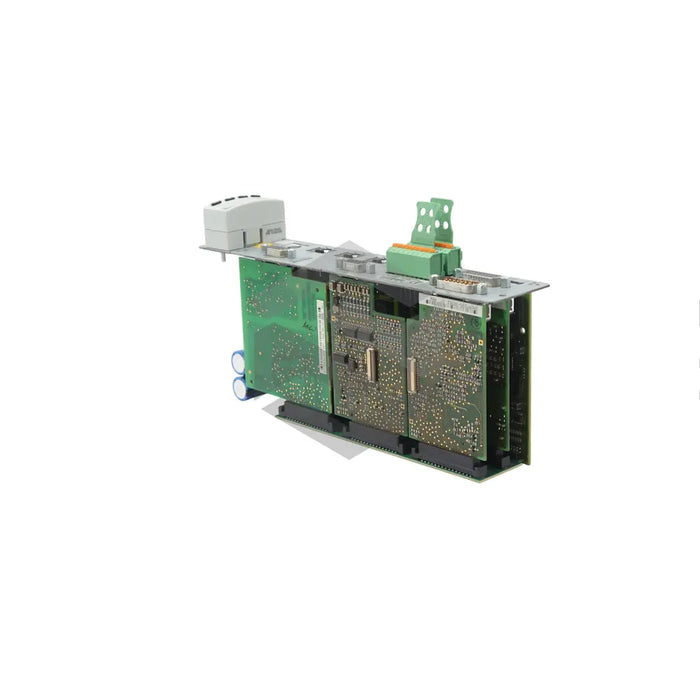

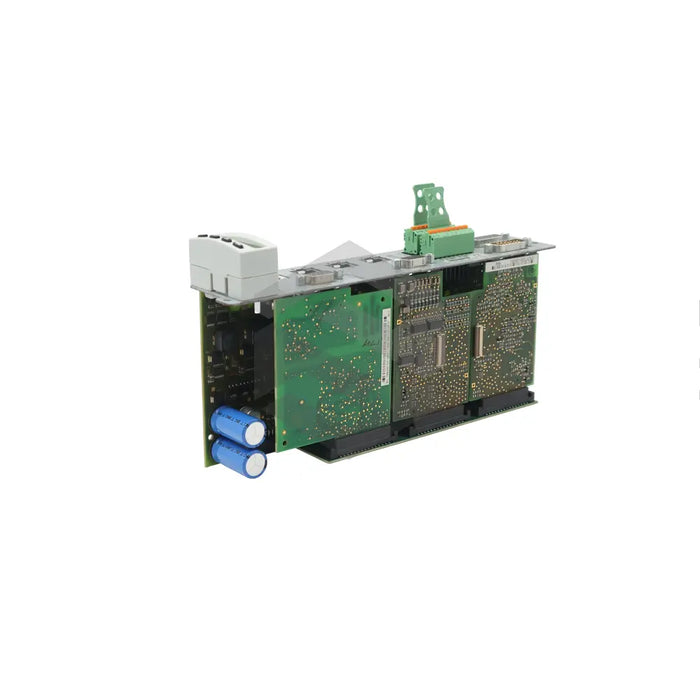

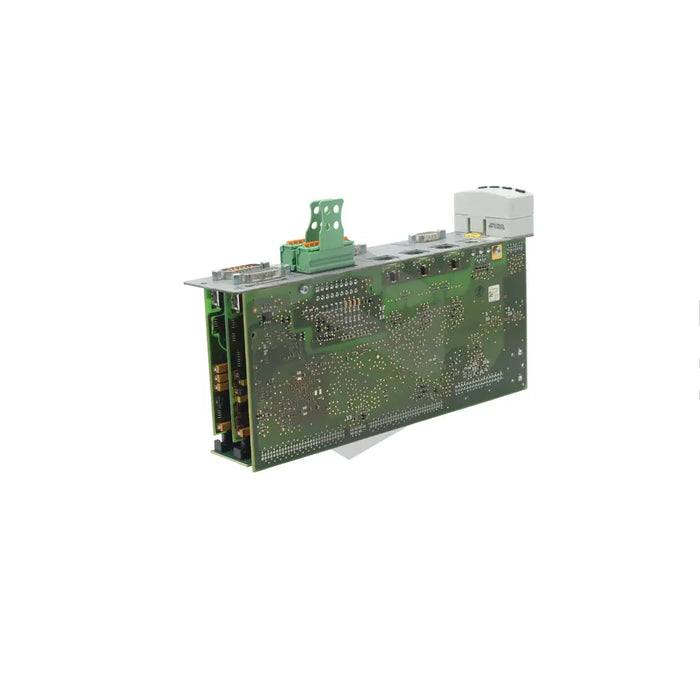

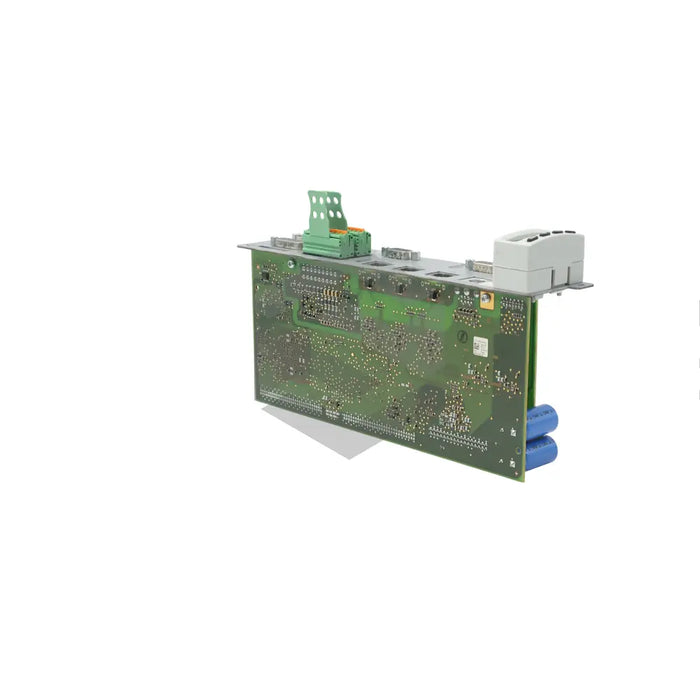

The CSH01.3C-PB-EN2-EN1-CCD-S2-S-NN-FW is a single-axis control section unit manufactured by Bosch Rexroth Indramat, designed for use in the company's IndraDrive system. The unit's compact size facilitates its installation within the drive controller's power section. It's equipped with vibration-resistant spring and screw terminal connectors, aiding its reliable operation in industrial settings. The control section is characterized by a typical inrush current of 4A and a maximum pulse width of 100ms, and it requires separate firmware ordering. The CSH01.3C-PB-EN2-EN1-CCD-S2-S-NN-FW can connect to various encoder types via its 15-pole D-sub type encoder evaluation interface or Resolver and HSF evaluation interface, supporting 5V sin-cos and 5V-TTL square-wave encoders, as well as DC 8V or AC 18.2V peak-peak encoder systems.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

CSH control section

Series

IndraDrive

Product Code

CSH01.3C-PB-EN2-EN1-CCD-S2-S-NN-FW

Design line

Design-3

Construction

Compact

Installation Frequency

Should not exceed 20 times

Connection points

Spring terminals and screw terminal blocks

Inrush current

4A

Maximum Pulse width

100ms

Maintenance

Easy

Vibration Resistance

Yes

Firmware

Must be ordered separately

Encoder evaluation interface

D-sub type with 15 poles

Supply Voltage of Encoder evaluation interface

5V

Encoders Supported

Sin-cos encoder (1 Vpp) with EnDat 2.1 and sense lines, Sin-cos encoder (1 Vpp) with reference track, 5V-TTL square-wave encoder with reference track

Resolver and HSF encoder evaluation interface

D-sub type with 15 poles

Supply Voltage of Resolver and HSF encoder evaluation

DC 8 V or AC 18.2 V peak-peak.
