S image of CSH01.3C-PB-EN2-EN2-CCD-NN-S-NN-FW

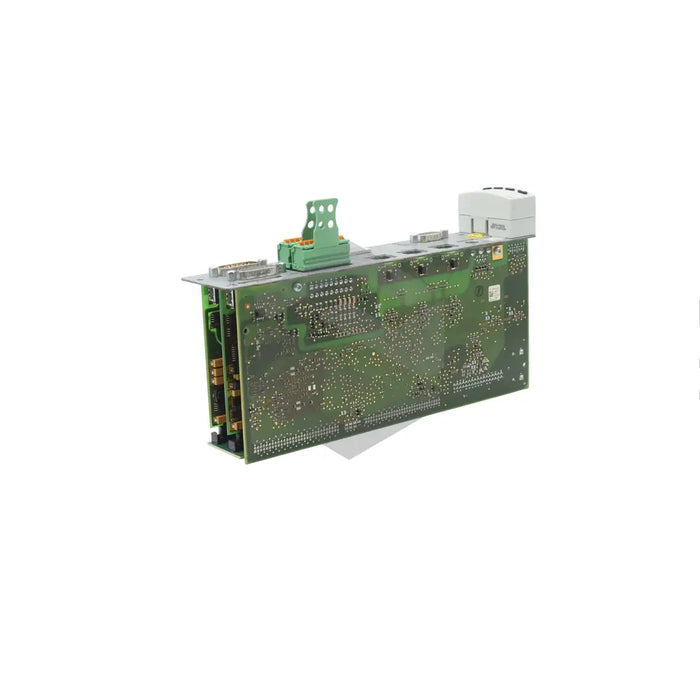

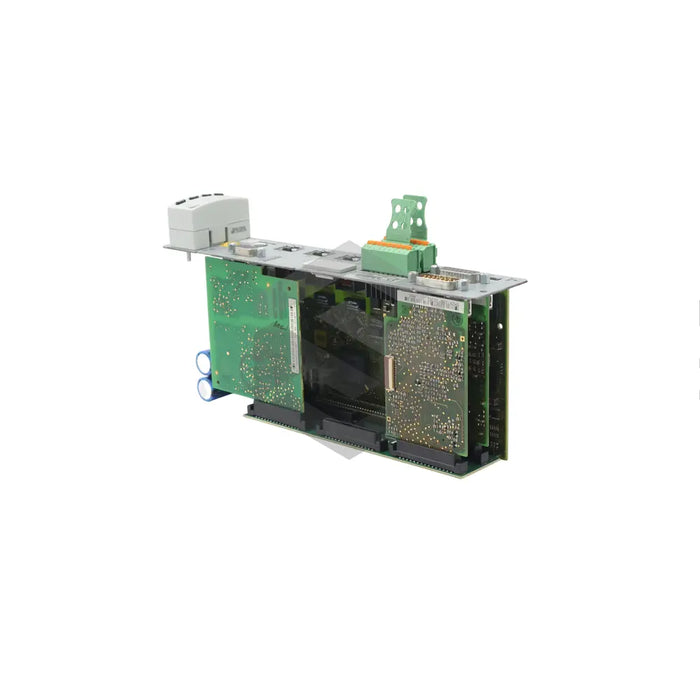

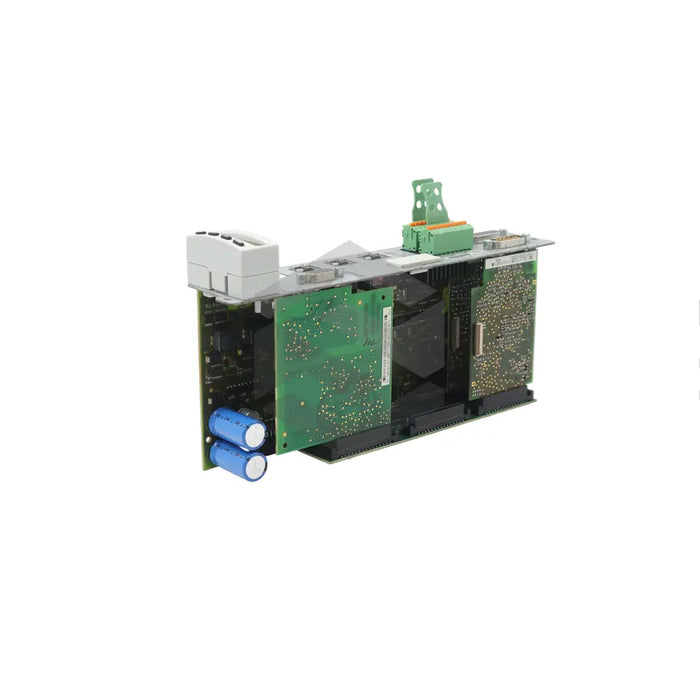

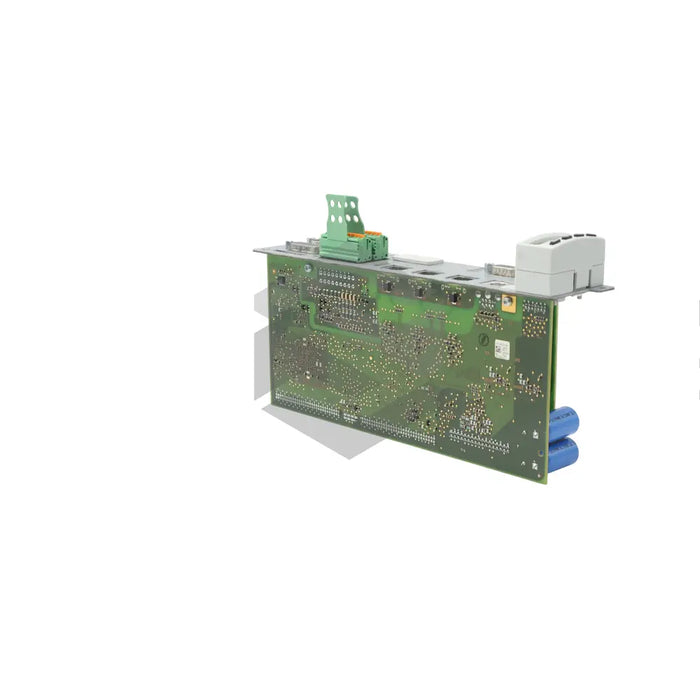

CSH01.3C-PB-EN2-EN2-CCD-NN-S-NN-FW

by Bosch Rexroth Indramat
$2,346.34 - $19,129.22
$2,346.34
$2,346.34 - $19,129.22
$2,346.34
Bosch Rexroth Indramat's CSH01.3C-PB-EN2-EN2-CCD-NN-S-NN-FW is a crucial component of the IndraDrive system, serving as a control section for electric motor operations in handling and mounting mechanisms as well as machine tools. Featuring dual 15-pole D-sub-type interfaces, it supports various 5V supply voltage encoders including sin-cos encoders with EnDat 2.1 and Sense lines, sin-cos encoders with reference tracks, and 5V-TTL square-wave encoders with reference tracks. The interfaces help interpret motor operations for consistent speed and position control. The CSH model boasts a standard inrush current of 4A and a maximum 100ms pulse width. Facilitating communication is PROFIBUS which also strengthens the product against electromagnetic disturbances. The product contains a cross-communication module per IEEE 802.3 standards, though external firmware is needed. The user-friendly CSH model is suitable for industrial use complying with IEC 61800‑3’s category C3 standards.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CSH01.3C-PB-EN2-EN2-CCD-NN-S-NN-FW

Product Type

CSH control section

Encoder Interfaces

Two D-sub-type interfaces with 15 poles each

Encoder Supply voltage

5V

Encoder types

Sin-cos encoder (1 Vpp) with EnDat 2.1 and Sense lines, Sin-cos encoder (1 Vpp) with reference track, 5V-TTL square-wave encoder with reference track

Inrush current

4A

Maximum pulse width

100ms

Communication protocol

PROFIBUS

Electromagnetic interference resistance

Yes

Error detection and correction

Yes

Cross communication module

Yes, corresponding to the IEEE 802.3 standard

Firmware

Compatibility yes, but must be ordered separately

Product category

IEC 61800‑3 category C3

Control panel

User-friendly standard control panel.
