S image of CSH01.3C-PB-EN2-EN2-CCD-S2-S-NN-FW

CSH01.3C-PB-EN2-EN2-CCD-S2-S-NN-FW

by Bosch Rexroth Indramat
$2,267.40 - $19,129.22
$2,267.40
$2,267.40 - $19,129.22
$2,267.40

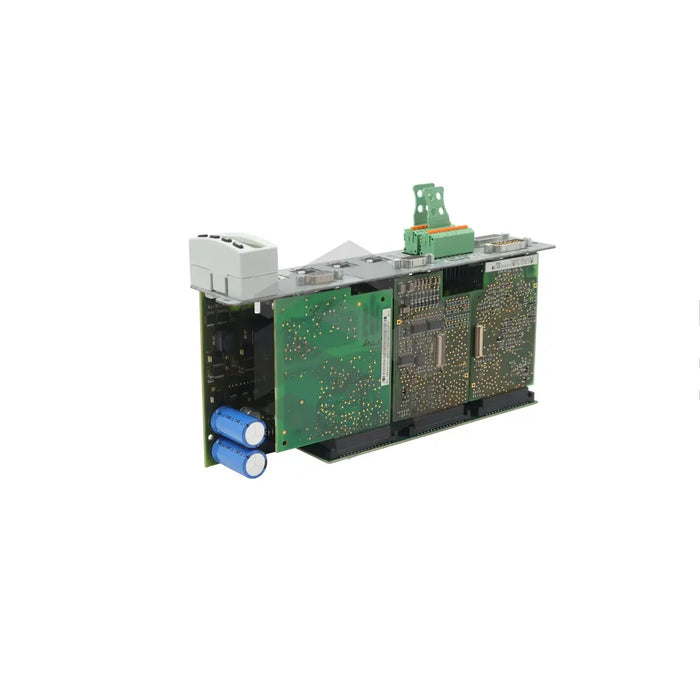

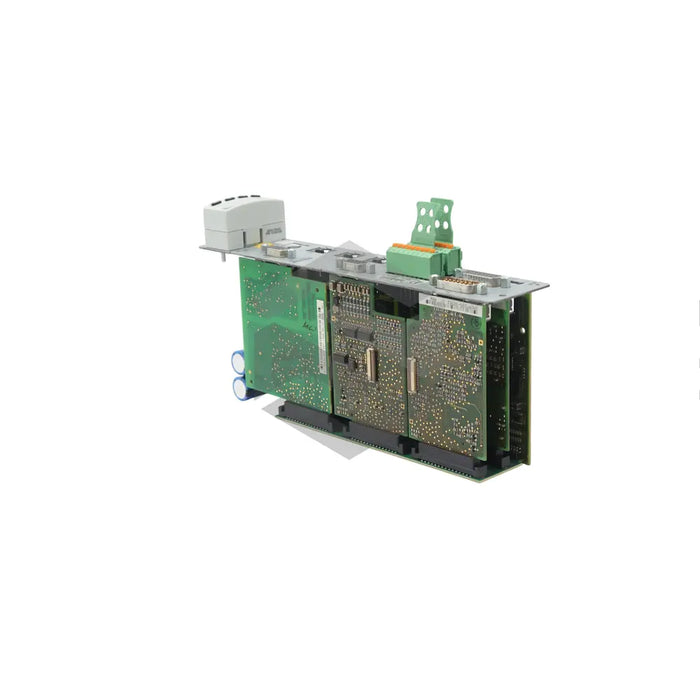

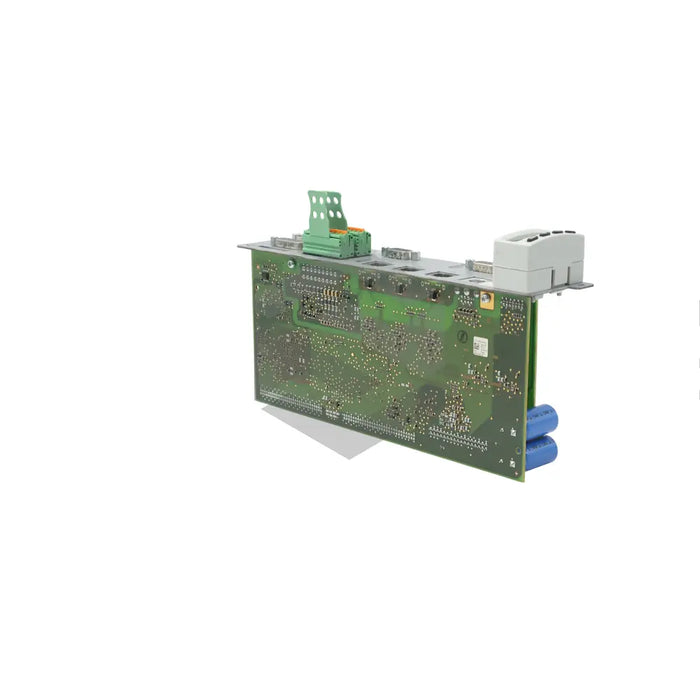

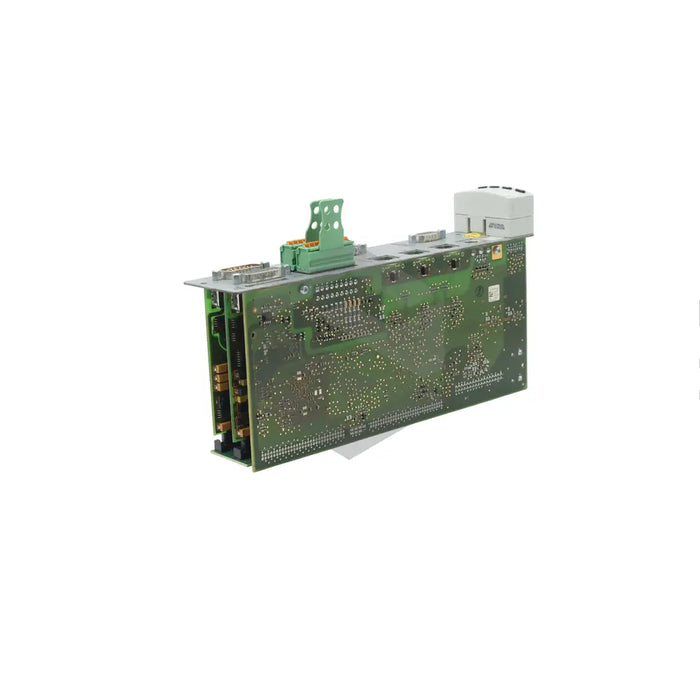

The CSH01.3C-PB-EN2-EN2-CCD-S2-S-NN-FW is a single-axis type, compact CSH model drive controller, developed by Bosch Rexroth Indramat. Operated at varying switching frequencies from 2 kHz to 16 kHz, this innovative piece of technology is fitted with a "Safe Motion" module, providing a plethora of application-related safety features. Communication is enabled via PROFIBUS and cross communication, fostering efficient data exchange. The controller also houses dual encoder evaluation interfaces, meant for encoders with a 5V supply voltage. A standard control panel, equipped with a single-line display further enhances operability, providing users with critical data including operation states, error diagnoses, and warnings. This control panel also initiates the basic load defaults procedure and enables the setting of drive address and error memory access. Firmware compatibility is an additional feature.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

IndraDrive drive controllers

Model

CSH01.3C-PB-EN2-EN2-CCD-S2-S-NN-FW

Type

Configurable single-axis

Typical Inrush Current

4A

Maximum Pulse Width

100ms

Switching Frequencies

2 kHz, 4 kHz, 8 kHz, 12 kHz, 16 kHz

Safety Features

Safely-limited speed, safe maximum speed, safe direction, safe homing procedure, safe diagnostic outputs

Communication Modules

PROFIBUS, Cross communication

Encoder Evaluation Interfaces Voltage Supply

5V

Supported Encoders

Sin-cos encoder (1 Vpp) with EnDat 2.1 and Sense lines, sin-cos encoder (1 Vpp) with reference track, 5V-TTL square-wave encoder with reference track

Control Panel

Standard, single-line display

Firmware

Supported

Applications

Handling and mounting systems, machine tools, food processing and packaging machines
