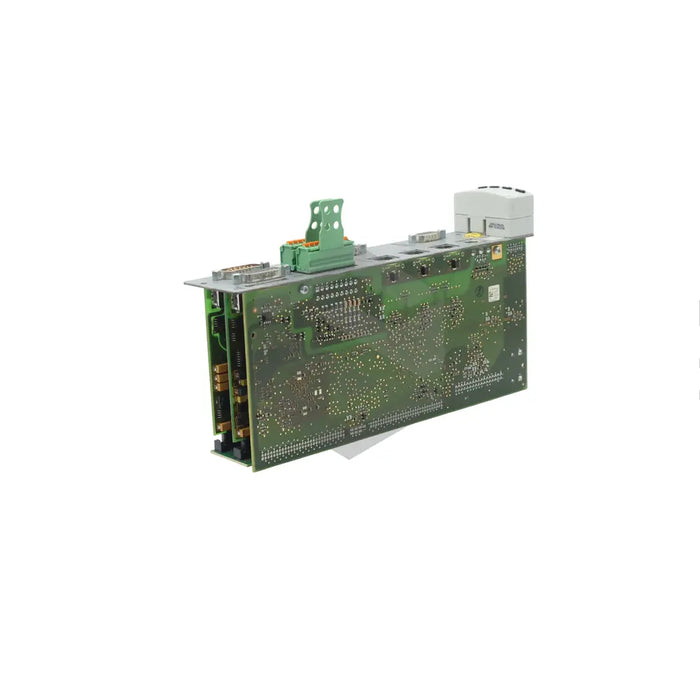

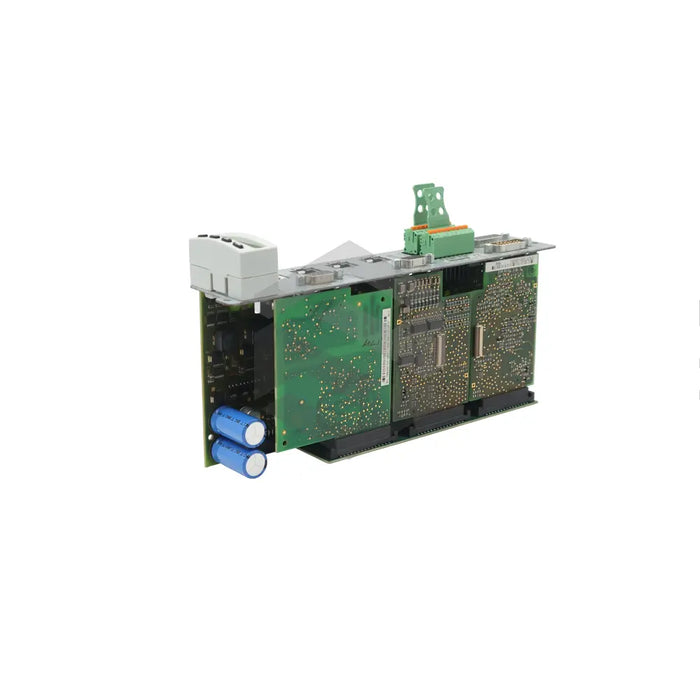

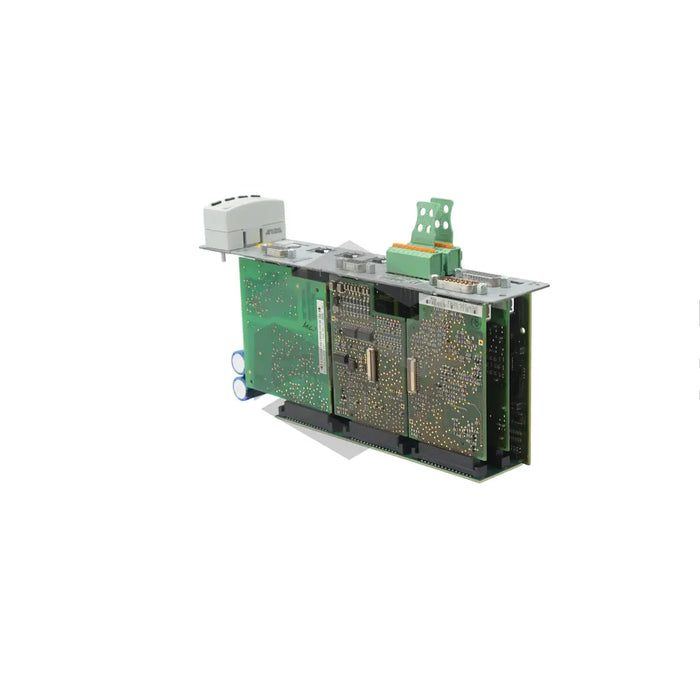

S image of CSH01.3C-PB-EN2-MA1-CCD-S2-S-NN-FW

CSH01.3C-PB-EN2-MA1-CCD-S2-S-NN-FW

by Bosch Rexroth Indramat
$2,346.34 - $19,129.22
$2,346.34
$2,346.34 - $19,129.22
$2,346.34
The CSH01.3C-PB-EN2-MA1-CCD-S2-S-NN-FW, produced by Bosch Rexroth Indramat, is an advanced control unit. Its PROFIBUS module connection employs a bus cable in accordance with DIN EN 50170 standards and it does not support compatibility with any comfort control panel. For safety technology, it utilizes a Safe Motion module linked to an encoder. This device features a standard control panel with a single-line display and four keys for simplified operation and enables analog input settings. It supports two types of multimedia cards for data storage. The control unit, capable of handling both asynchronous and synchronous motors, hosts 1ADC current carrying capacity and features digital inputs/outputs as per IEC 61131 standards. To ensure safety, it includes specified guidelines for its utility and maintenance, which include controlled connections to power sections, adherence to national EMC regulations, correct handling of batteries, installation of covers, cleaning without power supply, and cabinet-only mounting. The product is available for worldwide distribution.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

CSH01.3C-PB-EN2-MA1-CCD-S2-S-NN-FW

Bus Cable Standards

DIN EN 50170 (PROFIBUS optional module)

Control Panel Compatibility

None

Connector for Safety Technology

X41 Point (For Safe Motion module)

Control Panel Features

Single-line display and four keys

Multimedia Card Support

Two variants

Current Carrying Capacity

1ADC (Type 2 relay contact)

Digital Input/Output Standards

IEC 61131

Digital Input/Output Type

One combined with an E-Stop factory setting

Drive Controller Compatibility

Asynchronous or synchronous motors

Operating Restrictions

Limited connections and removal from power section, adherence to national EMC regulations, proper battery handling, installation of covers and guards, cleaning only when unconnected to electric power

Installation Location

Inside a control cabinet

Shipping Availability

Worldwide.
