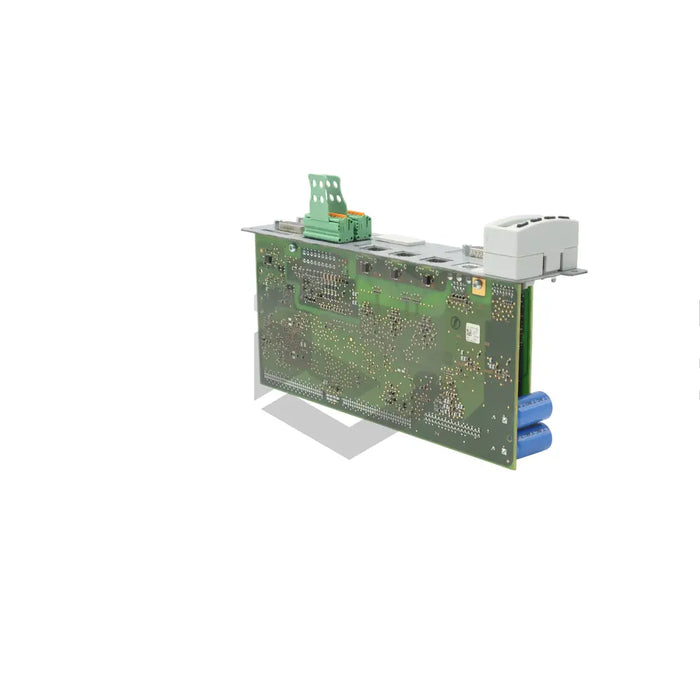

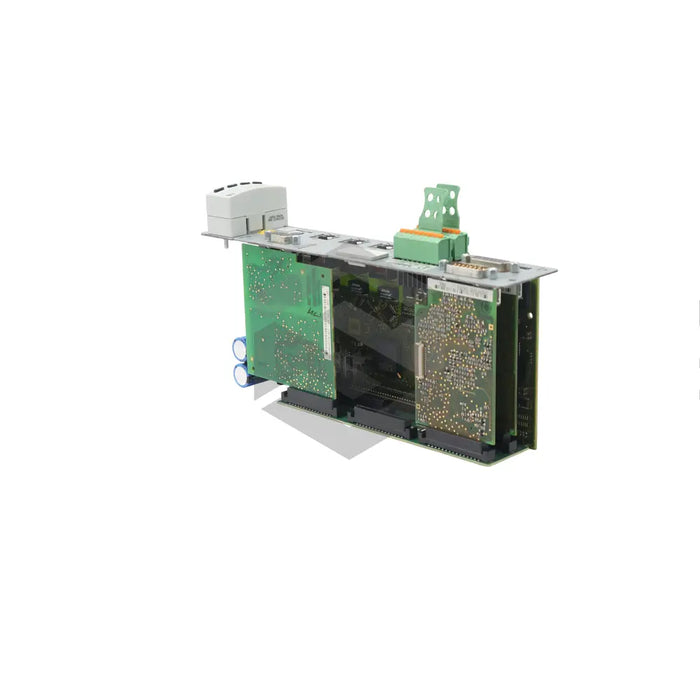

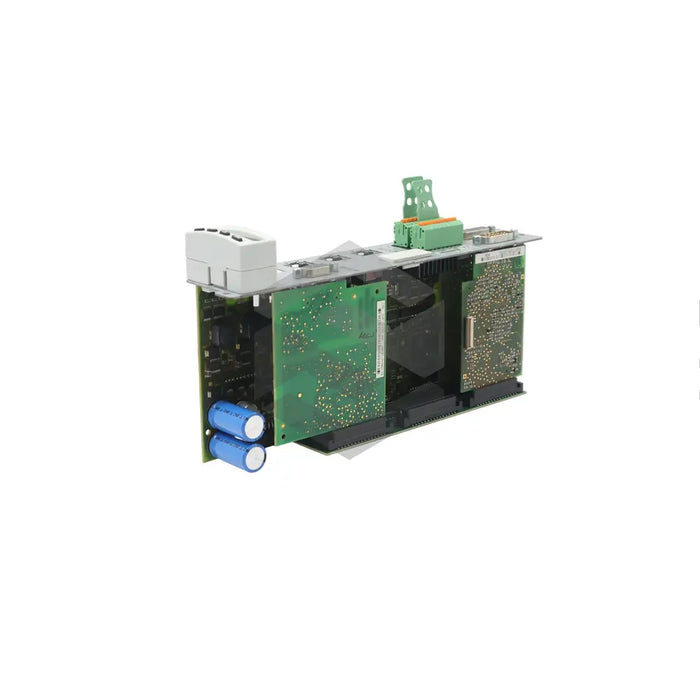

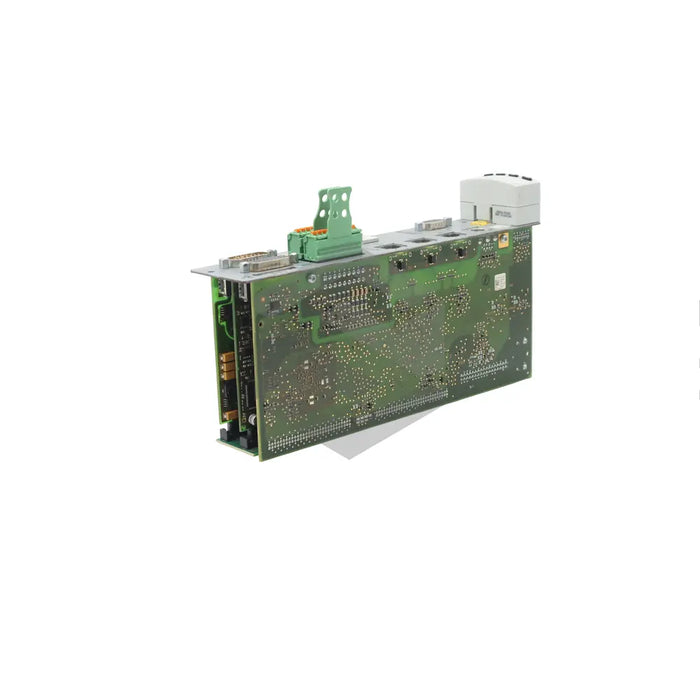

S image of CSH01.3C-PB-EN2-MEM-CCD-NN-S-NN-FW

CSH01.3C-PB-EN2-MEM-CCD-NN-S-NN-FW

by Bosch Rexroth Indramat
$2,370.32 - $19,114.47
$2,370.32
$2,370.32 - $19,114.47
$2,370.32
The CSH01.3C-PB-EN2-MEM-CCD-NN-S-NN-FW is a superior control section produced by Bosch Rexroth Indramat, outfitted with an encoder interface emulation courtesy of a MEM module. The exceptional features the product brings include its self-sufficient power supply for encoding signals, a specifically designated memory card slot, and dual Type 2 probe inputs. The 241 x 103 x 49.5mm unit demands a parallel connection between its digital and analog inputs to diminish the analog input's resistance. It boasts advanced safety features, including safe stop, safe communication, and safe direction. The unit employs a 15-pole D-Sub female connector allowing direct cable wiring at the connector for certain applications. The control section also includes the HAS05.1-003 signal-level converter, essential for encoder emulation. Power is supplied through 0V and 24V terminal connectors, and it's components are eco-friendly. This advanced control section is backed by a one-year support warranty.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CSH01.3C-PB-EN2-MEM-CCD-NN-S-NN-FW

Interface Encoder Emulation

Supported with MEM optional module

Power Supply Requirement

No external supply needed for generated encoder signals

Dimensions

241 x 103 x 49.5mm

Memory Card Slot

Dedicated Slot

Analog and Digital Inputs

Requires Parallel connection

Probe Inputs

Two Type 2

Analog Input Channels

Two with MA1 module, 12 bits resolution, +/-10V voltage rating

Connector Type

D-Sub female, 15 poles

Safety Functions

Safe stop, safe communication, safe direction, and more

Voltage Supply

0V and 24V terminal connectors at power section

Wiring

Individual cables at D-Sub connector for one or two analog I/Os

Signal-Level Converter

HAS05.1-003 for encoder emulation

Material

Eco-friendly components

Protection

Use at mains with protection using residual current-operated circuit-breakers

Monitoring Functions

Incorporated in components

Operating Temperature

High surface temperature during and after operation

Packaging

Custom military-grade packaging.
