CSH01.3C-PB-EN2-NNN-CCD-L2-S-NN-FW

by Bosch Rexroth Indramat
$2,370.32 - $19,114.47
$2,370.32
$2,370.32 - $19,114.47
$2,370.32

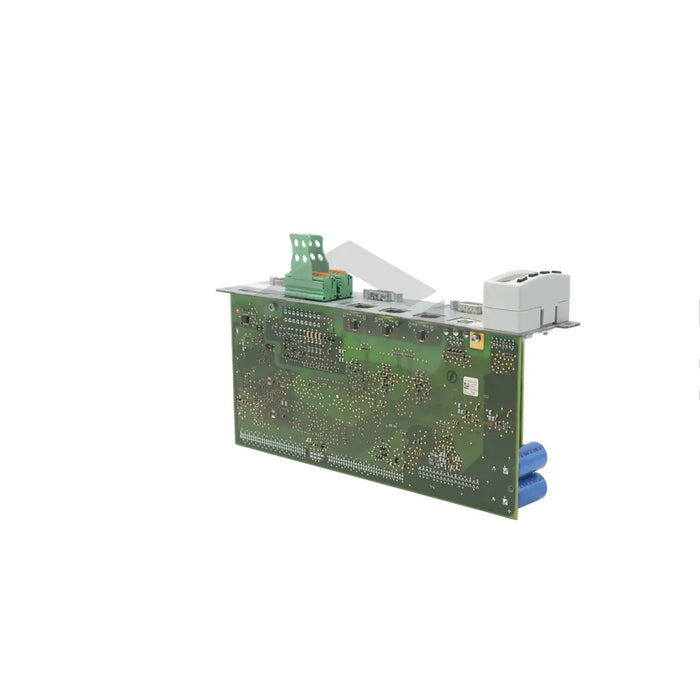

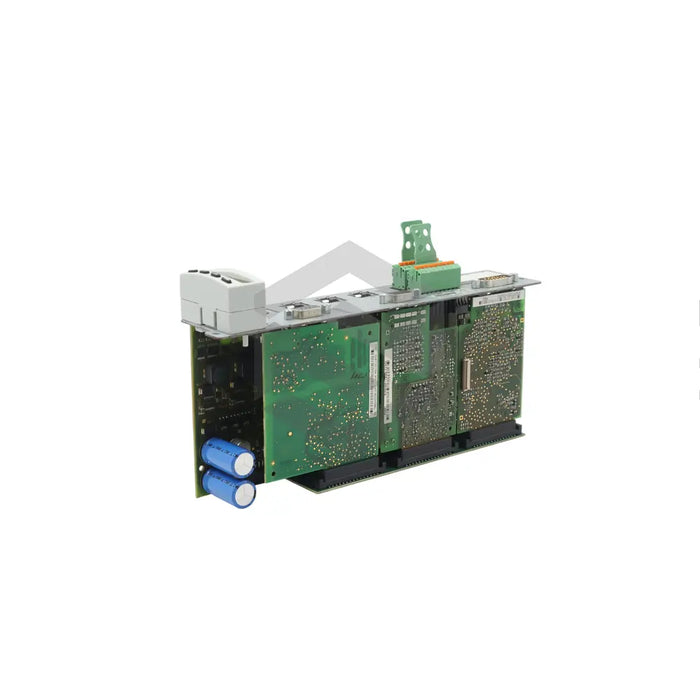

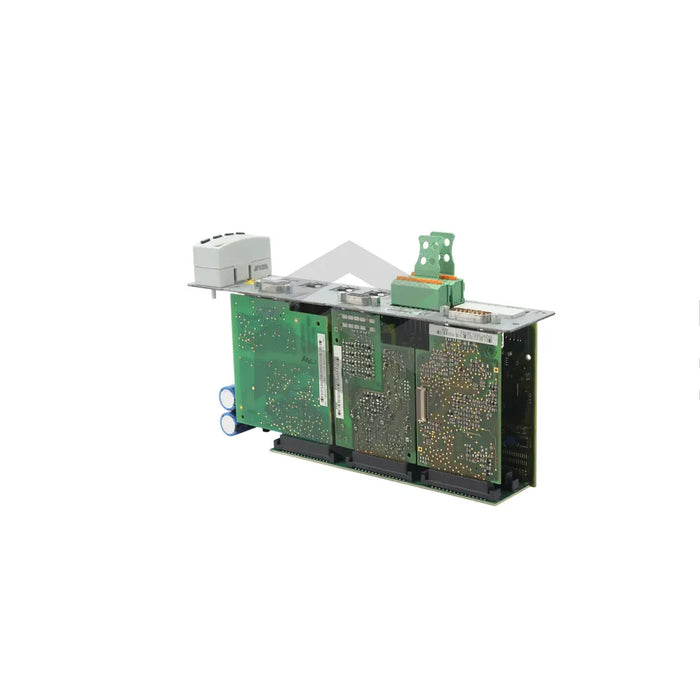

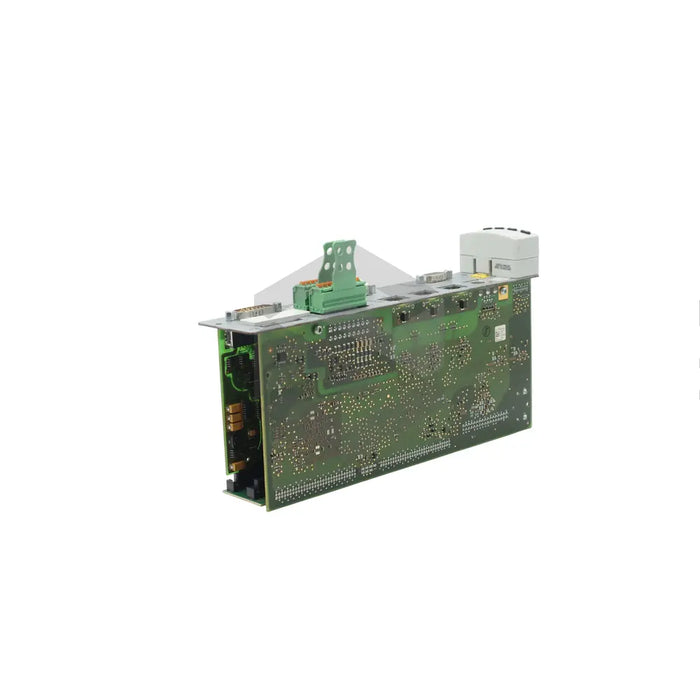

The CSH01.3C-PB-EN2-NNN-CCD-L2-S-NN-FW control section, manufactured by Bosch Rexroth Indramat, is an advanced industrial device that incorporates a PROFIBUS interface for master communication, an EnDat 2.1 / 1Vpp / TTL encoder for encoder evaluation, and a RS 232 serial interface. The power needs of its optional modules are taken into account in its design. This control section has one differential input for the encoder that can generate sine or square-wave signals and includes a safety technology slot. It connects to the encoder module through a cable with at least 0.5mm2 cross-section wires for power supply. The device implements Safe Torque Off functionality, has screw and spring terminals for the connection, and must not have any structural changes. Care must be taken when handling, installing and storing this device to avoid safety hazards. Its housing is closed and designed for the industrial use, not residential. It includes a one-year backup support.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

CSH01.3C-PB-EN2-NNN-CCD-L2-S-NN-FW

Power Consumption

Does not specify, has power consumption of optional modules

Line Code

1 line code

Communication Interface

PROFIBUS

Encoder Evaluation

EnDat 2.1 / 1Vpp / TTL encoder

Differential Input Type

Sine or square-wave signals

Configuration Slot Type

Safety technology

Connection to Encoder Module

Cable with wires of 0.5mm2 cross-section

Additional Interface

RS 232 serial interface

Safety Functionality

Safe Torque Off with L2 optional module

Device Terminals

Screw and spring terminals

Contact Precaution

Do not make contact with exposed conductive parts until discharged

Structural Changes

Cannot be modified

Use Restrictions

Not suitable for use in residential areas with public low-voltage mains

Backup Support Duration

One year

Mounting, Installation, Transport and Storage

Must be handled properly for safe and optimum operation

Handling Precautions

Do not touch electrical connection points while power is on, do not jam or crush device

Housing

Mounted inside a closed housing

Leakage Current

Greater than 3.5mA

Safety Mechanisms

Vertical axes must be secured against falling after motor power is switched off, additional braking mechanism is required.
