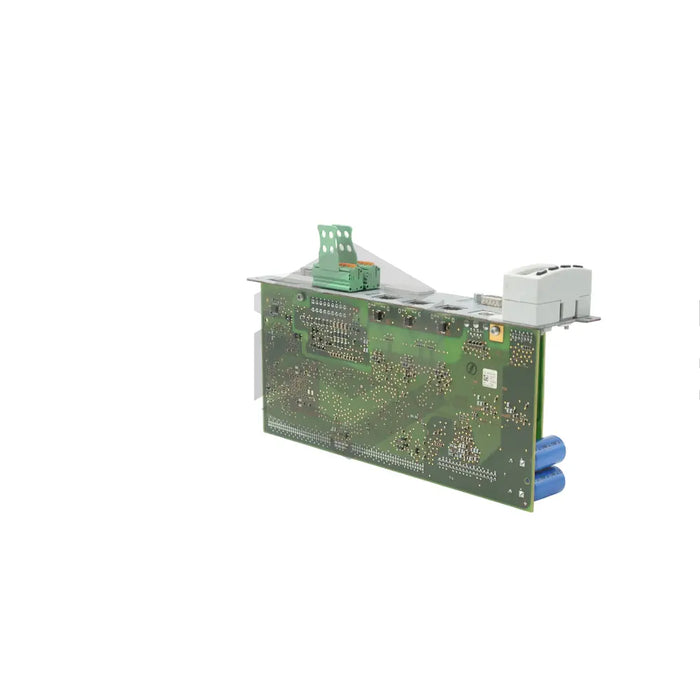

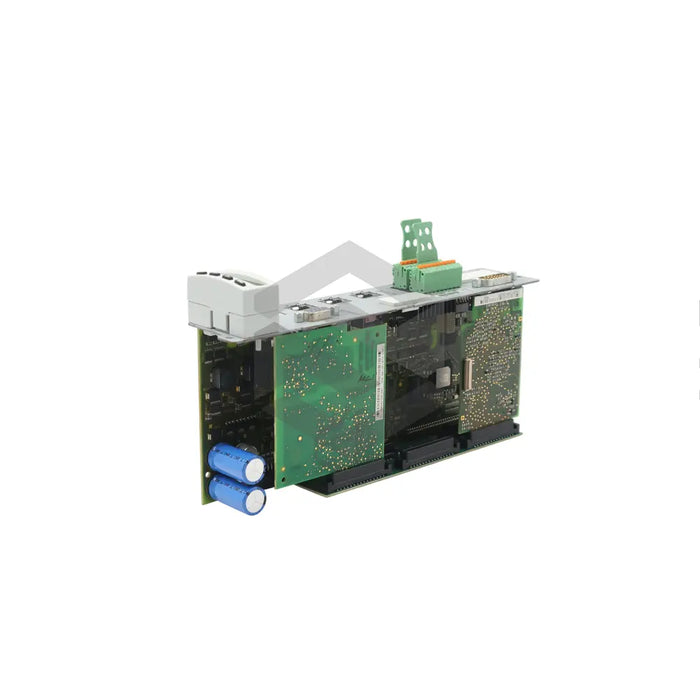

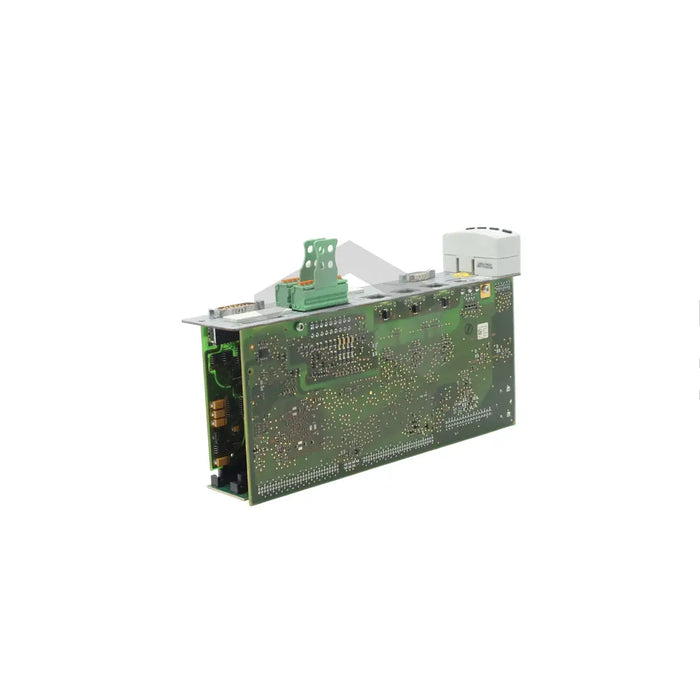

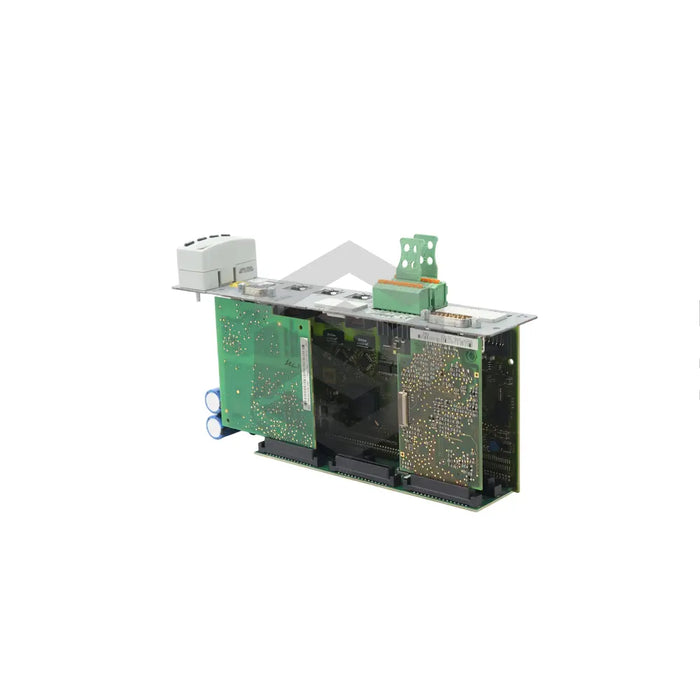

S image of CSH01.3C-PB-EN2-NNN-CCD-NN-S-NN-FW

CSH01.3C-PB-EN2-NNN-CCD-NN-S-NN-FW

by Bosch Rexroth Indramat
$2,370.32 - $19,114.47
$2,370.32
$2,370.32 - $19,114.47
$2,370.32
The CSH01.3C-PB-EN2-NNN-CCD-NN-S-NN-FW by Bosch Rexroth Indramat is an advanced control unit customizable to users' needs. Specific handling and mounting procedures are required to avoid frequent damage. It incorporates an optional module for cross-communication, adhering to IEEE 802.3 standards, using an 8-pole MiniDin female connector for its RS 232 serial interface. The unit consumes a maximum of 8.5kW power at 24VDC, inclusive of control panel and multimedia card. It features isolated input/output at X31 and X32 connection points. The device is environmentally friendly, and any unsupported components or accessories are not recommended. The control section provides a year-long backup support from Servo Supplier. Strict safety measures are required when operating and maintaining the unit, including prior programming of the drive controller before commissioning. The device contains batteries within a solid casing and requires careful handling.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

CSH01.3C-PB-EN2-NNN-CCD-NN-S-NN-FW

Mounting Method

Use appropriate equipment

Control Panel

Not hot plug operation support

Configurability

Yes

Additional Feature

Optional module for cross-communication support

Connector Interface

RS 232 serial via circular MiniDin female connector with eight poles

Power Consumption

8.5kW at 24VDC at max output load (includes control panel & multimedia card)

I/O Connections

X31 and X32 connecting points are isolated

Damage Susceptibility

High with frequent mounting and dismounting

Contact Procedure

Discharge parts and tools on a conductive support prior to contact

Cross-communication Interface Standard

IEEE 802.3

Unsupported Components

Accessories and components not supported by manufacturer

Environmental Impact

Negligible

Drive Controller

Must be programmed before commissioning

Backup Support Duration

1 year

User Requirement

Trained, authorized or instructed individuals

Safety Precautions

Permanent connection of equipment grounding conductor

Battery Details

Batteries with active chemicals in solid housing

Working Precautions

Hands to be protected before working on hot surface

Mounting Requirement

Type plate must not be covered

Delivery

Worldwide.
