S image of CSH01.3C-PB-EN2-NNN-CCD-S2-S-NN-FW

CSH01.3C-PB-EN2-NNN-CCD-S2-S-NN-FW

by Bosch Rexroth Indramat
$2,346.34 - $19,129.22
$2,346.34
$2,346.34 - $19,129.22
$2,346.34

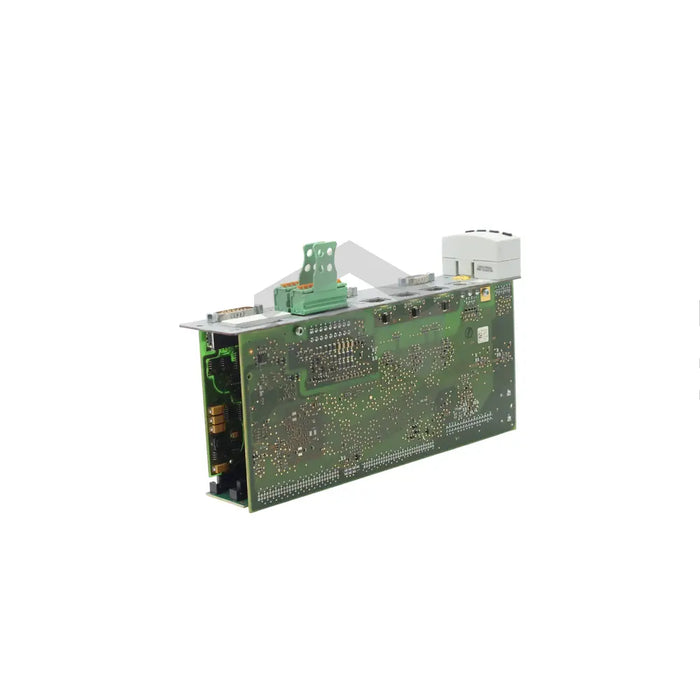

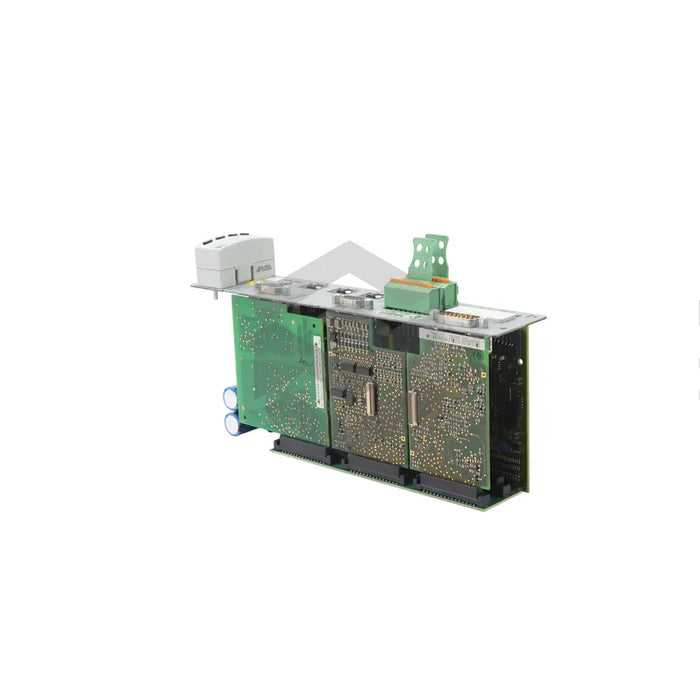

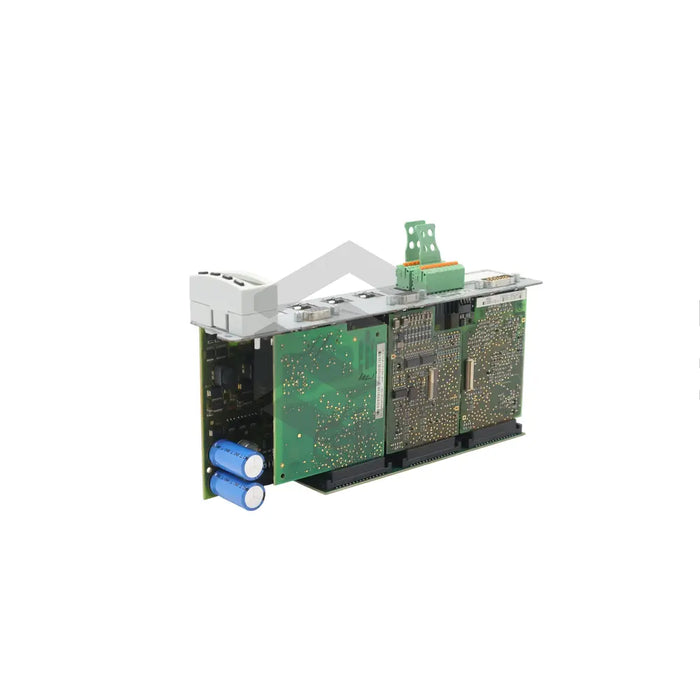

The CSH01.3C-PB-EN2-NNN-CCD-S2-S-NN-FW, by Bosch Rexroth Indramat, is a control section that employs a multimedia card for data storage and retrieval. The device includes a single protective diode for protection against incorrect connection and signal sources for reducing linearity error. It comprises quick probe inputs, an analog input, two analog outputs, and an EnDat 2.1 / 1 Vpp / TTL encoder with a 5V supply voltage. The device’s cross-communication module, with two yellow and two green LEDs, supports both Ethernet and 100Base-TX standards. It's compatible with short RKB0013 or long RKB0011 cables from the manufacturer and should only be handled when powered off. The device's relay contact can handle 1ADC of current and 30VDC of voltage load. During operation, it develops a surface temperature above 60°C.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CSH01.3C-PB-EN2-NNN-CCD-S2-S-NN-FW

Data Storage

Multimedia Card

Factory Setting

Normally Open for Type 2 relay contact

Protection Feature

One protective diode in power supply at X31.8 connector

Input

One analog

Output

Two analog

Encoder Support

EnDat 2.1 / 1 Vpp / TTL

Supply Voltage

5V +/-5%

Communication Module

Cross communication module with 2 yellow and 2 green LEDs at X24 and X25 connecting points

Connection Cable Options

Short RKB0013 cable or long RKB0011 cable

Connector Feature

Cannot be plugged or removed when powered on

Ethernet Compatibility

100Base-TX according to IEEE 802.3u standards

Control Panel Feature

Setting for analog inputs

Relay Contact

1ADC current carrying capacity and 30VDC voltage load capacity

Temperature

Surface temperature of over 60°C during use
