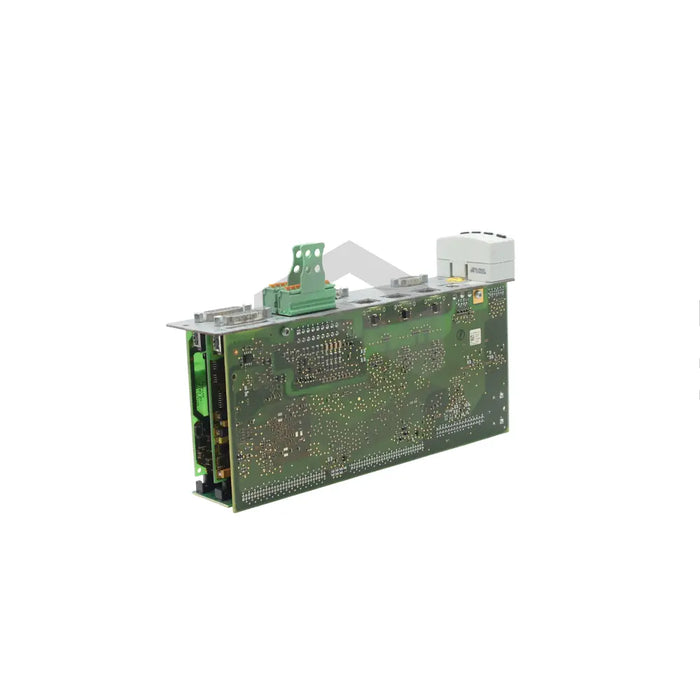

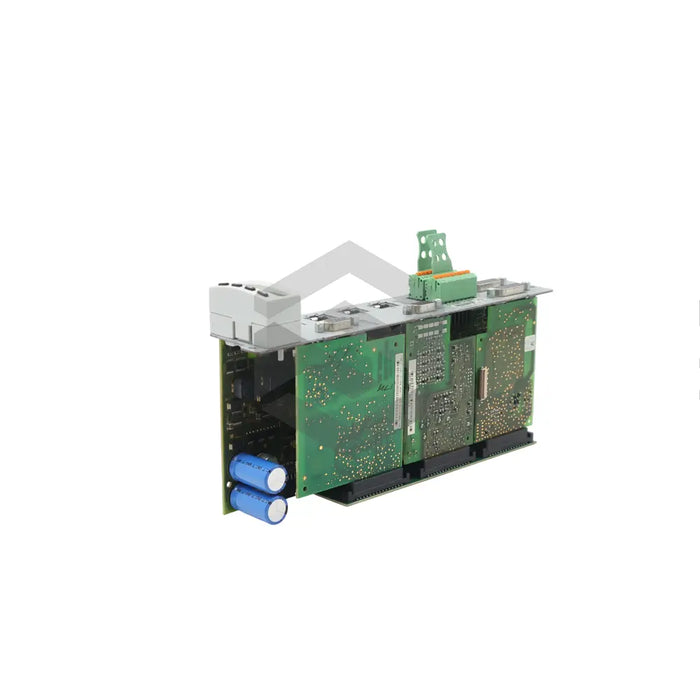

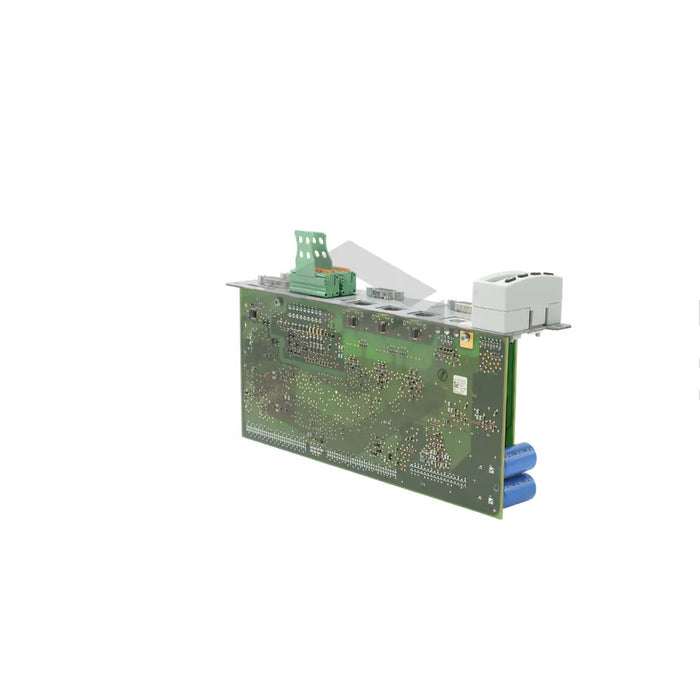

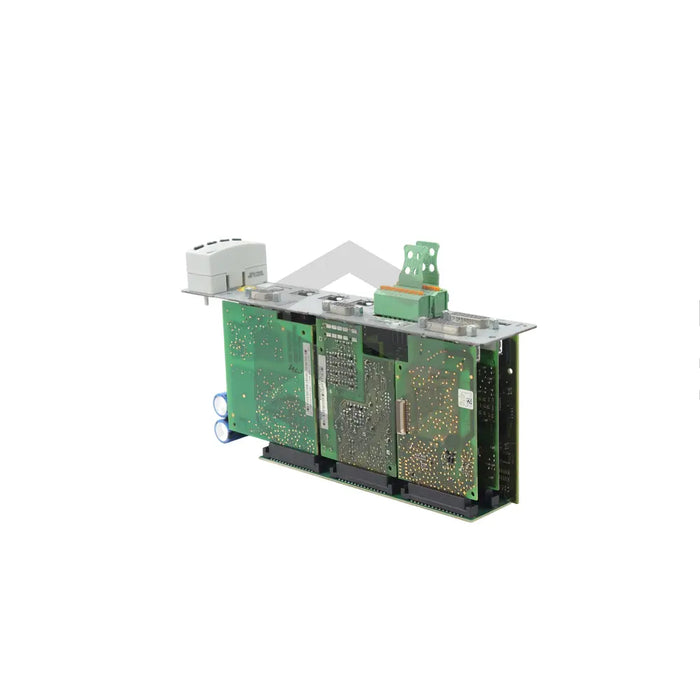

S image of CSH01.3C-PB-ENS-EN1-CCD-L2-S-NN-FW

CSH01.3C-PB-ENS-EN1-CCD-L2-S-NN-FW

by Bosch Rexroth Indramat
$2,370.32 - $19,114.47
$2,370.32
$2,370.32 - $19,114.47
$2,370.32
The CSH01.3C-PB-ENS-EN1-CCD-L2-S-NN-FW control section by Bosch Rexroth Indramat includes an IndraDyn / Hiperface / 1Vpp / TTL encoder, and exclusively uses the manufacturer's cables for connection. The product features firmware-loaded multimedia cards or preformatted cards for easy parameter transmission. It features two analog voltage inputs, functionable as a digital input, consistent with IEC 61131 specifications. The device also houses components composed of synthetic materials and metals like aluminum, copper, and steel. Please ensure proper battery replacement to avoid damage. Operation can commence once the accessible emergency stop switch is verified. The device has an operation-dependent need for a 15-minute minimum cooling time. Interaction for programming and diagnostic functions, as well as status indication, is executed through its serial interface. Deliveries are made through reliable logistical partners.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CSH01.3C-PB-ENS-EN1-CCD-L2-S-NN-FW

Encoder

IndraDyn / Hiperface / 1 Vpp / TTL Encoder

Voltage Rating

+/-10V

Analog Input Resistance

160 kiloOhms

Cooling Time

15 minutes minimum

Material

Synthetic materials and metals including aluminum, copper, and steel

Analog Inputs

Designed according to IEC 61131 specifications

Analog Inputs Features

8-fold oversampling, 1.4kHz input bandwidth and 1.23mV/inc resulting resolution

Backup support period

1 Year

Interface

Serial interface for programming, diagnosis and parameterization

LED indicators

Green for network connection availability; Yellow for data transmission status

Encoder Output Current Rating

500mA

Encoder Voltage Rating

11.6V

Encoder Supply Voltage Rating

12V

Connection Cable Type

RKG4200 cables from Bosch Rexroth Indramat

Inrush Current

Typical 4A

Maximum Pulse Width

100ms.
