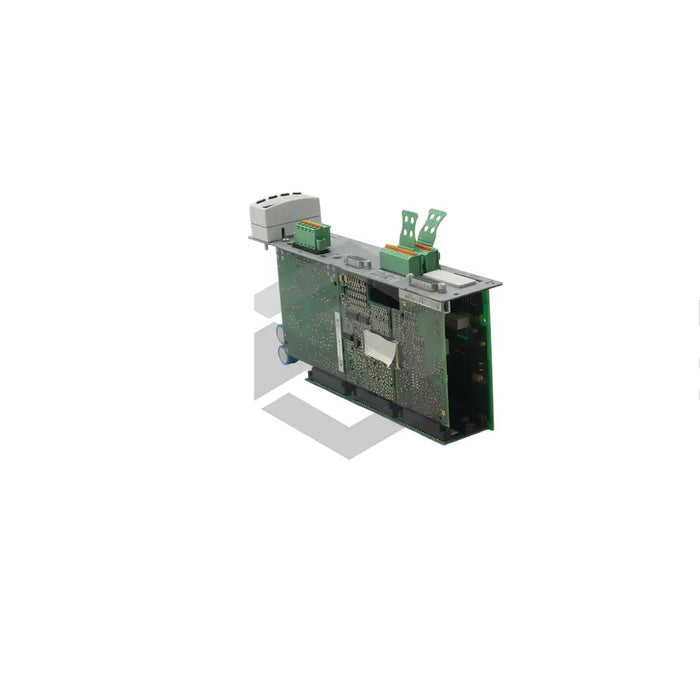

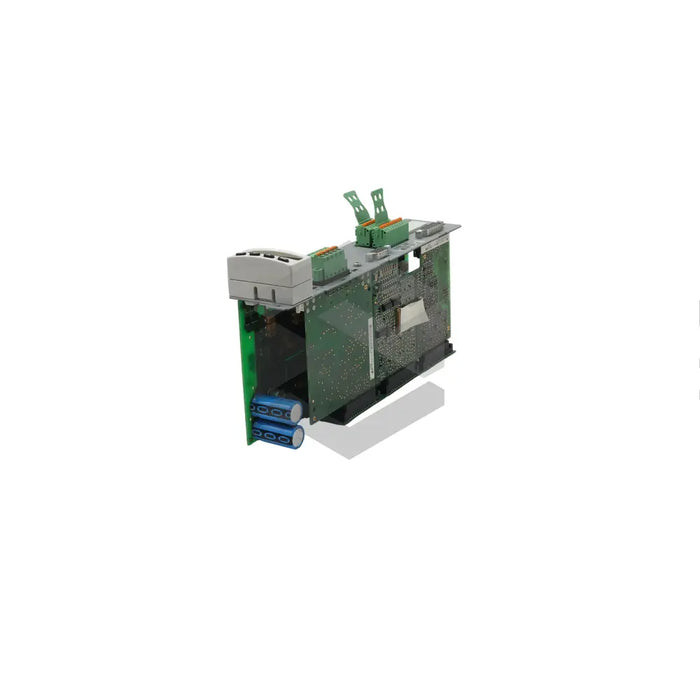

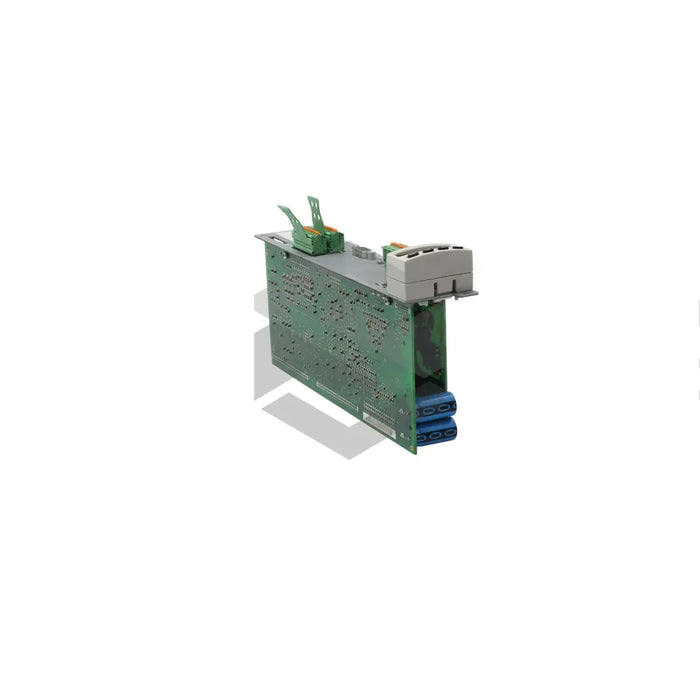

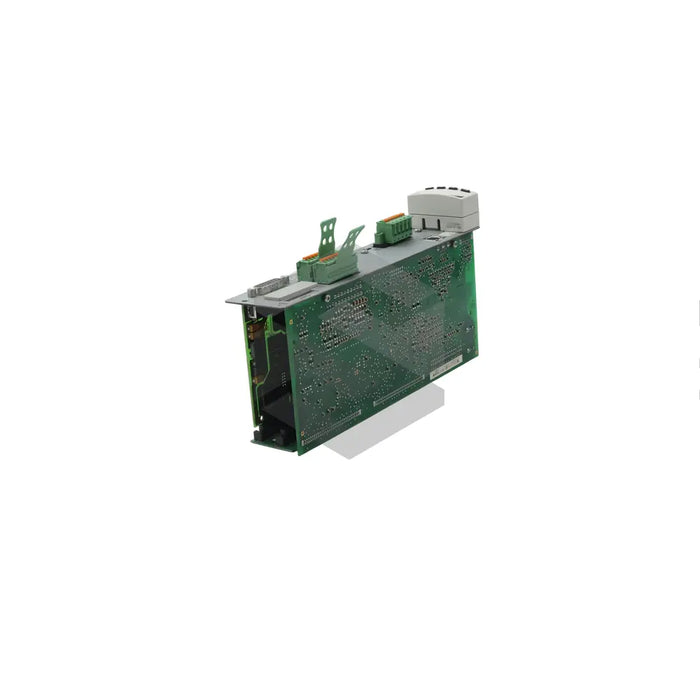

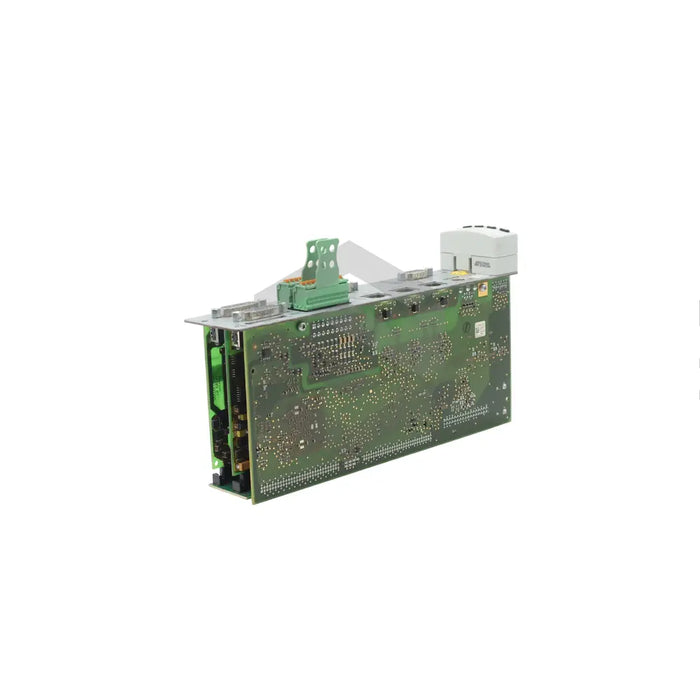

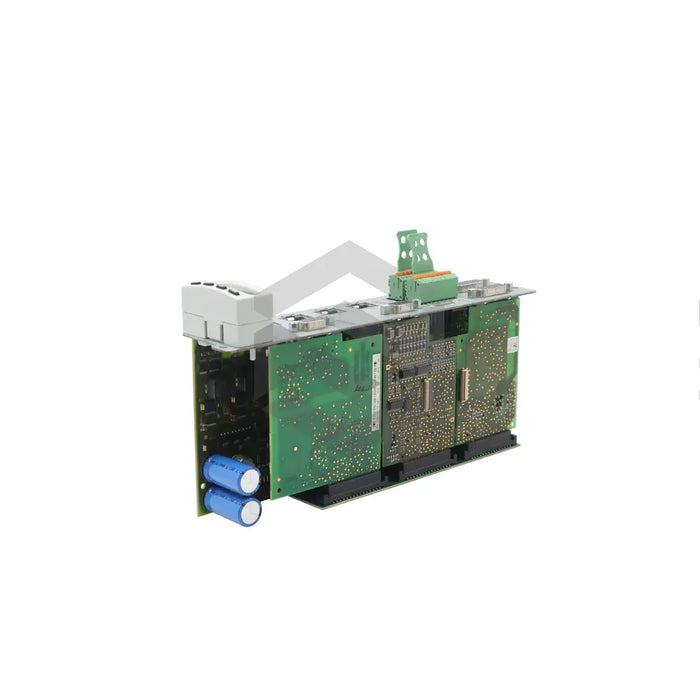

C image of CSH01.3C-PB-ENS-ENS-CCD-S2-S-NN-FW | Main (Front Left)

CSH01.3C-PB-ENS-ENS-CCD-S2-S-NN-FW

by Bosch Rexroth Indramat
$2,346.34 - $19,129.22
$2,346.34
$2,346.34 - $19,129.22
$2,346.34
The Bosch Rexroth CSH01.3C-PB-ENS-ENS-CCD-S2-S-NN-FW is a control section designed to accommodate two 12V encoder modules. It's compatible with a variety of sin-cos encoders, as well as the IndraDyn S motor's encoder system. The unit also supports a cross-communication module with two Ethernet interfaces, complying with IEEE 802.3 standards, which can connect to higher units via a 100m Cat-5e cable. The control section also features a safety module that supports numerous application-related safety functions. It can interface with a standard, non-hot-pluggable control panel. Keep in mind that the firmware for the control section is sold separately, but this unit has a dedicated type plate for easy identification of installed versions. Make sure to verify this information upon delivery. Installations should only be performed by qualified personnel.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Control Section

Encoder Module Support

Yes

Compatible Encoder Types

IndraDyn S motors encoders, sin-cos encoders with Hiperface support, sin-cos encoders with EnDat 2.1 interface, sin-cos encoders with reference track, 5V-TTL square-ware encoders with reference track

Encoder Operation Voltage

12 Volts

Cross-Communication Module Support

Yes

Cross-Communication Module Features

Two Ethernet interfaces, IEEE 802.3 compliant

Cable Connect Type

100 meter Cat-5e

Minimum Bend Radius for Long Cables with Flexible Installation

48.75 millimeters

Minimum Bend Radius for Long Cables with Permanent Installation

32.50 millimeters

Safety Module Support

Yes

Safety Features

Safe door locking, safe diagnostic outputs, safe inputs/outputs, safe parking axis, single-axis acknowledgment and more

Control Panel Compatibility

Standard control panel with single-line display

Hot Plug Suitability

No

Firmware

Sold Separately

Type Identification

Via type plate on unit

Installation Requirements

Must be performed by qualified personnel.
