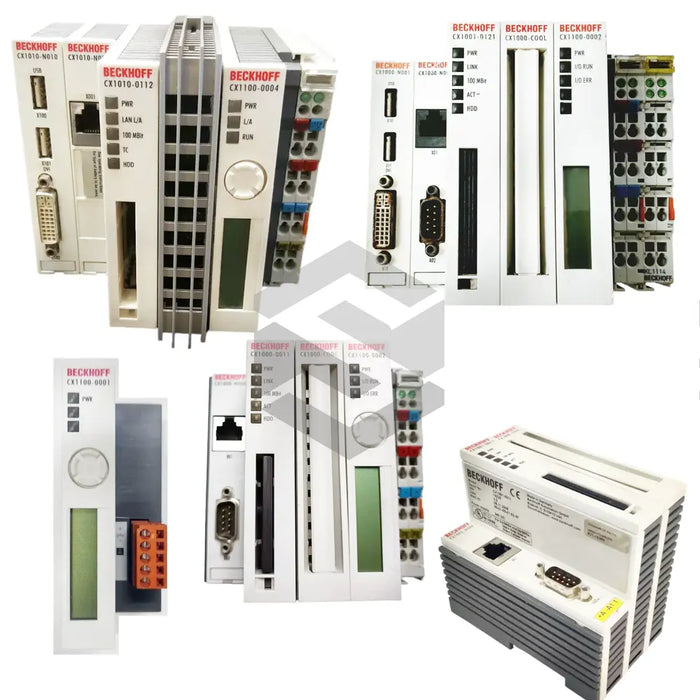

S image of CX1001-0022

CX1001-0022

by Beckhoff
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The Beckhoff CX1001-0022 Embedded PC embodies the rugged versatility of the CX Embedded PC Systems lineup from Beckhoff, delivering industrial-grade control and data acquisition in a compact footprint. Powered by a 266 MHz AMD Geode CPU, this module offers robust processing capabilities optimized for energy efficiency in automated environments. With 128MB RAM and integrated Compact Flash (CF) storage, the CX1001-0022 supports demanding tasks in motion control and PLC applications. A native Windows XP Embedded operating system ensures seamless integration with Beckhoff’s TwinCAT software suite for advanced real-time control. Its modular architecture and DIN-rail mountable chassis facilitate rapid deployment in space-constrained control cabinets.

Featuring a comprehensive set of critical specifications, the CX1001-0022 provides Ethernet (RJ-45) connectivity for high-speed network integration and an RS232 COM port for legacy device interfacing. Expansion compatibility adheres to the PC104 bus standard for add-on I/O and communication modules, while the unit’s IP20 protection rating shields internal components from solid foreign objects. Power is delivered via a standard 24 V DC power supply from the CX1100 module, with a green power LED diagnostic indicator for quick status checks. The recommended minimum CF card space of 128 MB ensures reliable storage for application programs and data logging. A one-year warranty underscores Beckhoff’s commitment to quality and uptime.

Operationally, the CX1001-0022 excels in industrial automation scenarios, offering deterministic performance through its real-time TwinCAT integration. The embedded CF slot supports non-volatile memory for event logs and recipe data, retaining critical information even during power cycles. Fieldbus flexibility is achieved through compatibility with Profibus, CANopen, DeviceNet, and EtherCAT, enabling seamless communication with sensors, drives, and I/O stations. Energy-efficient design and low heat output make it suitable for densely packed control racks, while the embedded CPU’s thermal profile simplifies cooling requirements.

System integrators will appreciate the unit’s modular design and DIN-rail mounting for rapid installation and serviceability. Full support for Beckhoff fieldbus modules allows tailored configurations for manufacturing lines, packaging systems, and process control platforms. The CX1001-0022’s blend of processing power, industrial connectivity, and rugged build quality renders it ideal for factories, building automation, and transportation control applications. With its proven reliability and straightforward expandability, it meets the exacting demands of modern industrial automation deployments.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Connectivity

Ethernet (RJ-45)

Diagnostic Indicator

Green power LED

Expansion Compatibility

PC104

Fieldbus Interface

Profibus, CANopen, DeviceNet, and EtherCAT

Memory

128MB RAM

Modular Design

Yes

Module

Embedded PC

Operating System

Windows XP Embedded

Power Supply

24 V DC

Processor

266 MHz AMD Geode CPU

Protection Rating

IP20

Serial Communication

RS232 COM port

Storage

Compact Flash (CF)

Storage Recommendation

CF card space of 128 MB

Warranty

One-year
