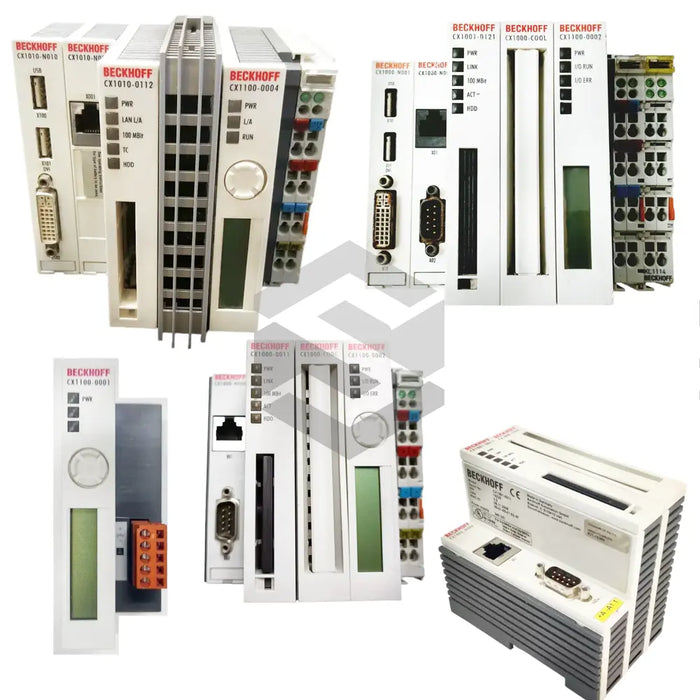

CX1030-0000

The CX1030-0000 is an industrial-grade embedded PC from Beckhoff in the CX Embedded PC Systems series, designed to meet demanding automation and control requirements. This compact unit is powered by an Intel Pentium M, 1.8 GHz processor with a single core, delivering reliable compute performance for real-time tasks. The system includes 256 MB DDR RAM as standard, expandable ex-factory to 1 GB, and features a 128 MB Compact Flash card slot for storage flexibility. Housed in an IP20-rated enclosure and weighing approximately 580 g, it provides a small footprint without compromising robustness in industrial environments. Diagnostic indicators and a replaceable cooling module ensure clear status monitoring and thermal management from the outset.

At the heart of the CX1030-0000’s technical capabilities is its system bus interface: a 16-bit ISA (PC/104) backbone enabling seamless integration with PC-104 I/O and expansion modules. Networking is facilitated by 2× RJ45 10/100 Mbit/s ports with an internal switch, supporting robust Ethernet communication and segmentation. Storage and firmware are handled through the CF Type I/II slot with eject mechanism, hosting the included 128 MB CF card and allowing upgrades as needed. Power is drawn via the system bus modules (CX1100-0012/0013/014), keeping cabling tidy while providing up to 32 W of consumption for CPU, memory, and peripherals. This configuration ensures deterministic performance and real-time responsiveness across a broad range of tasks.

Operational features emphasize reliability and maintainability in industrial contexts. The embedded PC employs a cooling module with speed-controlled fan cartridge, which is easily replaceable to maintain optimal temperatures under heavy load. Status is clearly communicated via diagnostic LEDs: 1 for power, 2 for LAN link/activity, 1 for TwinCAT (TC) status, and 1 for flash access. A battery-backed real-time clock with replaceable battery preserves time and date for logging and time-sensitive applications, even during power interruptions. With an IP20 housing, the unit balances protection against solid objects with accessible maintenance points, ensuring uptime and reducing mean time to repair.

Integration is streamlined through native support for Beckhoff’s automation ecosystem. The CX1030-0000 runs Windows CE 6 or Windows Embedded Standard 2009 and hosts TwinCAT 2 PLC, NC PTP, and NC I runtime control software, enabling coordinated motion and logic tasks. I/O connectivity is managed via the power-supply module, offering E-bus, K-bus, or K-bus/IP-Link interfaces for modular I/O terminals. Its compatibility with standard PC/104 I/O cards and Beckhoff’s CX-series modules makes it an ideal choice for machine control, process automation, and distributed intelligence applications across factory and process environments.
