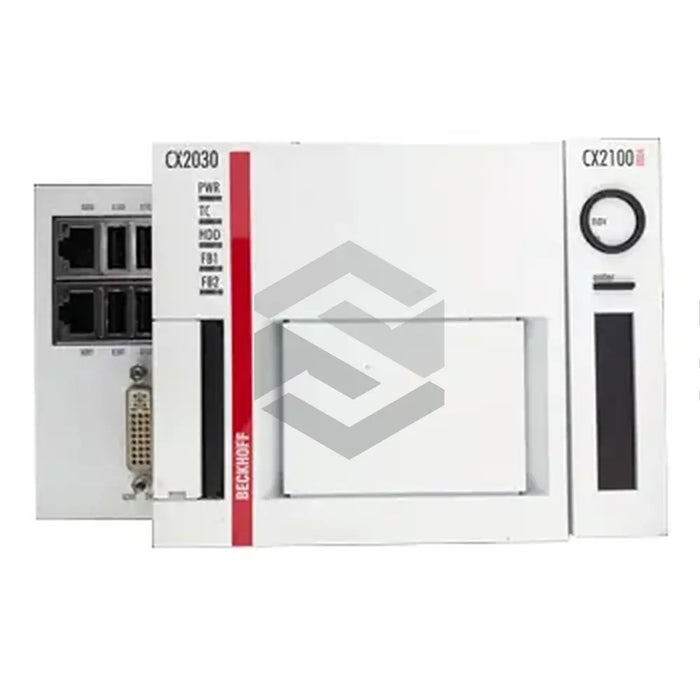

P image of CX2030-0155

CX2030-0155

by Beckhoff
$3,017.84 - $3,319.62
$3,017.84
$3,017.84 - $3,319.62
$3,017.84

In Stock, Ships 1 - 3 Days

The Beckhoff CX2030-0155 is a high-performance embedded PC, boasting compatibility with TwinCAT 3 runtime (XAR) control software and Windows 10 IoT Enterprise LTSB 64-bit operating system. The system integrates a GPU, memory controller, and CPU, and features a durable anti-glare LC display. The unit should be mounted using bar clips for maximum shock and vibration resistance. It adheres to EN 60068-2-6/EN 60068-2-27 standards for vibration and shock resistance but should only be installed horizontally in order to ensure adequate CPU ventilation. It includes a power supply with I/O interface and has a dielectric strength of 500Vrms. Housing four USB ports, two LAN interfaces with LED notifications for speed, and a DVI-I interface supporting a maximum resolution of 2560 x 1440 pixels, this device offers both functionality and versatility. The CX2030-0155 holds UL Listing and is CE certified, complying with EN 61000-6-2/EN 61000-6-4 EMC specifications.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Type

Embedded PC

Manufacturer

Beckhoff

Model

CX2030-0155

Compatible Software

TwinCAT 3 runtime (XAR)

Operating System

Windows 10 IoT Enterprise LTSB 64-bit

CPU Type

Integrated with graphic interface, memory controller, and computing unit

Display

Illuminated, anti-glare LC Display

Installation

Horizontal only

Vibration/Shock Resistance

EN 60068-2-6/EN 60068-2-27

Power Supply

Integrated, with I/O interface for bus terminals connections

Dielectric Strength

500Vrms

Resolution

Upto 2560 x 1440 (dependent on cable length and quality, and monitor)

DVI-I Interface

Supports connection to analog or digital display upto 5m away

USB Ports

Four, output current not more than 500mA each

LAN Interfaces

Two, with speed indication LEDs

EMC Immunity/Emission

Conforms to EN 61000-6-2/EN 61000-6-4

Certifications

UL Listed, CE Certified
