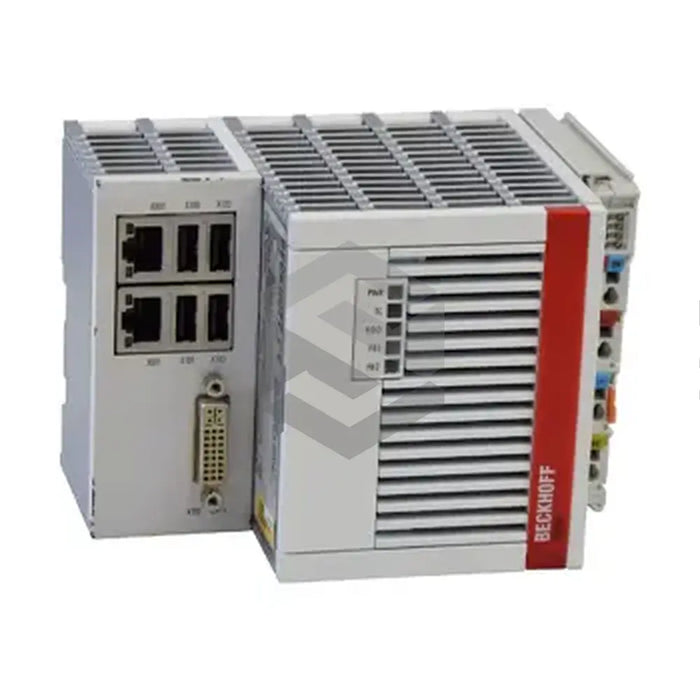

P image of CX5130-0121

CX5130-0121

by Beckhoff
$1,472.82 - $5,461.09
$1,472.82
$1,472.82 - $5,461.09
$1,472.82

In Stock, Ships Fast

The Beckhoff CX5130-0121 is a member of the CX5130 series of embedded PC control systems. Equipped with a dual-core Intel Atom processor, this compact, fan-less unit boasts two RJ45 interfaces that support a data transfer rate of 10/100/1000 Mbit/s and operates on a 32-bit Windows Embedded Compact 7 OS. It integrates seamlessly with TwinCAT 2 PLC runtime control software and includes an internal, battery-backed clock. Energy efficiency is optimal with a maximum power consumption of 20W with UPS load. Vendor specific connectors allow a current supply rate of 2A. The device's design ensures minimum space occupied, and airflow is sustained via ventilation openings at the top and bottom. For secure installation, additional bracketry is recommended. The CX5130-0121 conforms to EN 61000-6-2 or EN 61000-6-4 standards and has a protection rating of IP20 and a TC3 performance class of 40.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Beckhoff

Product Series

CX5130

Model

CX5130-0121

Processor

Dual-core Intel Atom

Interfaces

2 RJ45

Data Transfer Rate

10/100/1000 Mbit/s

Clock

Internal battery-backed

Power Consumption

Max 20W with loading UPS

Operating System

32-bit Windows Embedded Compact 7

Software Support

TwinCAT 2 PLC runtime control software

Design

Fan-less and compact

E-bus or K-bus current supply

2A

EMC Immunity

Conforms to EN 61000-6-2

EMC Emission

Conforms to EN 61000-6-4

Ventilation

Openings at bottom and top, minimum 30mm clearance above and below

Protection Class

IP20

TC3 Performance Class

40

Mounting

Latches at top and bottom, mounting rail must be either TS35/7.5 or TS35/15 in accordance to DIN EN 60715 specifications.
