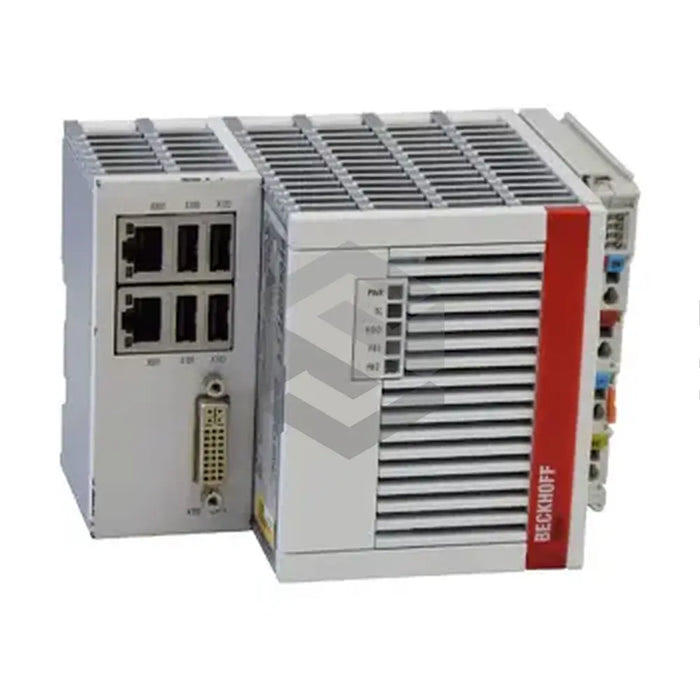

P image of CX5130-0122

CX5130-0122

by Beckhoff
$9,593.86 - $15,824.54
$9,593.86
$9,593.86 - $15,824.54
$9,593.86

In Stock, Ships Fast

The CX5130-0122 is an embedded PC designed by Beckhoff Automation for use as a control system. Part of their CX5130 series, this device includes diagnostic LEDs that display status for power, bus, TC and flash access. It accommodates both a microSD card slot and a CFast card slot for purposeful expansion, while the power supply cables should only be connected while de-energized to prevent damage. Operational controls call for a 24V DC power source with a maximum of 4A fuse for electrical safety, and full system configuration prior to starting. This device runs on a Windows Embedded Standard 7 P 32-bit OS and features the TwinCAT 2 NC PTP control software that should be properly shut down prior to device turn off. Environmentally, it requires an IP20-rated workspace to guard against certain foreign objects and should be stored in a temperature-controlled space. Its high performance is powered by an Intel Atom® dual-core processor and a solid 4GB DDR3 RAM capacity.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product

CX5130-0122

Manufacturer

Beckhoff Automation

Product Type

Embedded PC

Features

Diagnostics LEDs for TC status, power status, bus status and flash access

Memory Slot

MicroSD card and CFast card

Power Source

24V DC with max 4A fuse

Operating System

Windows Embedded Standard 7 P 32-bit

Control Software

TwinCAT 2 NC PTP runtime

Mounting Condition

In a terminal box or on a mounting rail

Working Environments

IP20 protection rating

Housing Protection Class

IP 54 for non-conductive dust and gas, IP6X for conductive dust

Operating Temperature

-25 to +60 degrees Celsius

Storage Temperature

-40°C to +85°C

Relative Humidity

95% without condensation

Processor

Intel Atom® dual-core

Memory

4GB DDR3 RAM (Not Expandable)
