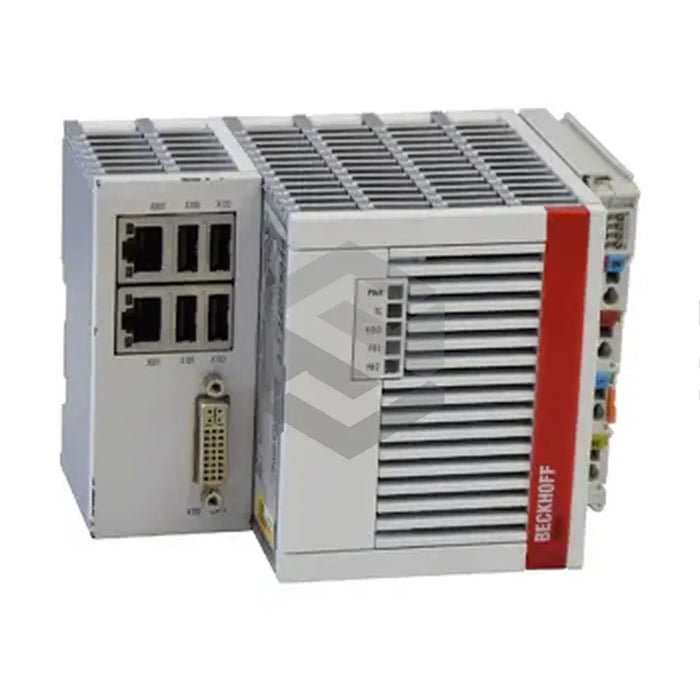

CX5130-0135

Original price $5,360.00 - Original price $5,360.00
Original price
$5,360.00
$5,360.00 - $5,360.00
Current price $5,360.00
In Stock, Shipping Varies
Request a quote
The Beckhoff CX5130-0135 is a CPU module from the globally praised CX5100 series. This Embedded PC, working on Windows Embedded Standard 7 P 64 Bit OS, boasts an Intel Atom E3827 processor with 1.75 GHz and 4GB DDR3 inbuilt RAM, guaranteeing superior performance. Designed for industrial use, its dimensions are 142mm x 100mm x 92mm and it weighs approximately 2 lbs. Equipped with Beckhoff's TwinCAT 3 runtime control software for PLC/motion and logic control, the CX5130-0135 offers numerous connectivity options ranging from two Gigabit-capable Ethernet interfaces, a DVI-I interface, and four USB 2.0 interfaces to an optional interface for K-bus or E-bus terminals. It draws a maximum of 20 watts during peak power consumption and operates between -25 and +60 degrees Celsius. Equipped with IP20, UL, CE, ATEX, and IECEx approval markings, this sturdy PC module offers additional CFast and microSD slots.
30 Day Warranty
Technical Specifications
  • Manufacturer: Beckhoff
  • Product Type: CPU Module
  • Series: CX5130
  • Dimensions: 142mm x 100mm x 92 mm (W x H x D)
  • Weight: Approximately 2 lbs
  • Operating System: Windows Embedded Standard 7 P 64 Bit
  • Control Software: Built-in TwinCAT 3 runtime (XAR)
  • Processor: Intel Atom® E3827, 1.75 GHz
  • Interfaces: Two Gigabit-capable Ethernet, DVI-I, Four USB 2.0, Optional K-bus or E-bus terminals
  • RAM: 4GB DDR3
  • Additional Storage: Slot for CFast card and microSD card (Cards not included)
  • Power Supply: 24 V DC
  • Power Consumption: 20 watts with UPS, 14 W without UPS
  • Operating Temperature: -25 to +60 degrees Celsius
  • Storage Temperature: -40 to +85 degrees Celsius
  • Protection Class: IP20
  • Approvals/Markings: UL, CE, ATEX, IECEx
