P image of CX5140-0155

CX5140-0155

by Beckhoff
$2,082.43 - $2,868.75
$2,082.43
$2,082.43 - $2,868.75
$2,082.43

In Stock, Ships 1 - 3 Days

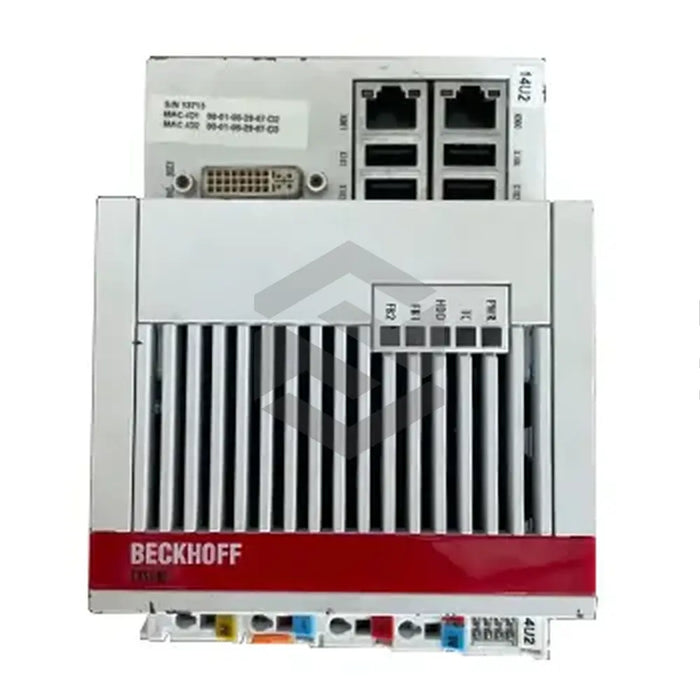

The Beckhoff CX5140-0155 is a specialized industrial embedded PC. This optimally-efficient computer is characterized by its low power demand, courtesy of a fanless design that features an effective quad-core 1.9GHz Intel Atom processor. Key features include various interfaces including two PCI lanes for Gigabit Ethernet controllers, a serial interface, and the handy battery compartment located beneath the front flap. This device also boasts Type A USB interface with a 2.0 specification and a max current of 500mA for each. Requiring a 24VDC power supply, the device is suitable for a wide operating temperature (-40°C to +85°C). In addition, the CX5140-0155 makes use of a 64-bit Windows 10 IoT Enterprise LSTB operating system, whilst being compatible with TwinCAT 3 runtime (XAR) control software. Lastly, this product features a DVI-D interface for digital data transfer and a DisplayPort for transmitting images and audio simultaneously.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Beckhoff

Model

CX5140-0155

Type

Embedded PC

Power Consumption

Low

CPU

Quad-core 1.9GHz Intel Atom

Design

Compact and fanless

USB

Type A with USB 2.0 specification, maximum current rating of 500mA per interface

Ethernet Port

Two PCI lanes for Gigabit Ethernet controllers

RJ45 Ethernet Interfaces

For internet or local network connections

Operating system

64-bit Windows 10 IoT Enterprise LSTB

Control software

Supports TwinCAT 3 runtime (XAR)

Power Supply Rating

24VDC

Storage Temperature Range

-40°C to +85°C

Multi-axis Function

Yes

Ethernet Speed LED indicator

No light - 10Mbits, Green - 100Mbits, Red - 1,000Mbits

DVI-D Interface

Used for the transfer of digital data, provides maximum resolution of 2560 x 1440 pixels, resolution depends on cable quality, monitor and cable length

DisplayPort

Transfers audio signals and images simultaneously
