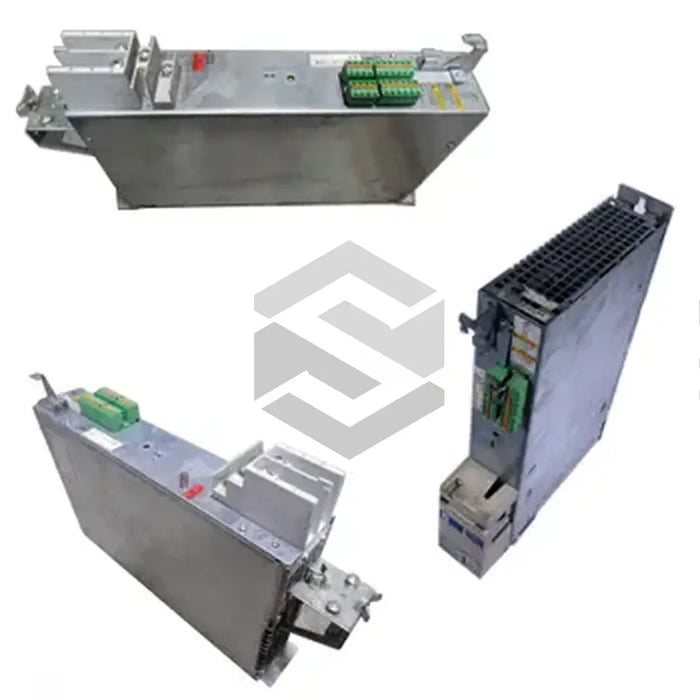

S image of CZM01.1-01-07

CZM01.1-01-07

by Bosch Rexroth Indramat
$1,751.50 - $1,751.50
$1,751.50
$1,751.50 - $1,751.50
$1,751.50

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat CZM01.1-01-07 is an auxiliary capacitance module designed to work with the DKC range of drive controllers. Optimized for use within a control cabinet, it operates when the controller's continuous regenerative power exceeds 0.15kW and the drive system's energy content is below 200W. The primary function of the module is to reduce power dissipation within the cabinet and store rotary energy for future acceleration procedures. Specifications include a 1mF rated capacity, DC bus wire cross-sections between 0.2mm2 and 4mm2, a 700V DC bus nominal voltage, and an installation distance of 70mm from the drive controller. Its X9 connector and protective conductor connection are located at the bottom front pane. The CZM01.1-01-07 is part of the CZM series, with dimensions of 233 x 210 x 333mm, and requires a minimum clearance of 80mm at the top and bottom within its cabinet.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

CZM01.1-01-07

Compatible Drive Controllers

DKC range

Operational Conditions

More than 0.15kW continuous regenerative power, Energy content of drive system below 200W

Application

Lowering power dissipation of the control cabinet

Wire Cross-section for DC bus connection

0.2mm2(min) - 4mm2(max)

Shipping

Worldwide

Function

Storing the rotary energy generated by the braking action of the connected drive

Version Code

1

Series Code

01

Rated Capacity

1mF

Installation Requirements

70mm distance from the drive controller

Product Components

X9 connector and protective conductor connection

Details on Rating Plate

Barcode, Part number, Machine type, Change index

Installation Clearance

80mm clearance at the top and bottom of the control cabinet

X9 Plug-in Screw Terminal Compliance

AWG 20-14 size wires

DC bus nominal voltage

700V

Dimensions

233 x 210 x 333mm

Product Series

CZM series
