CZM01.3-02-07

Original price $1,482.35 - Original price $6,409.47
Original price
$6,409.47
$1,482.35 - $6,409.47
Current price $6,409.47

In Stock, Ships Fast

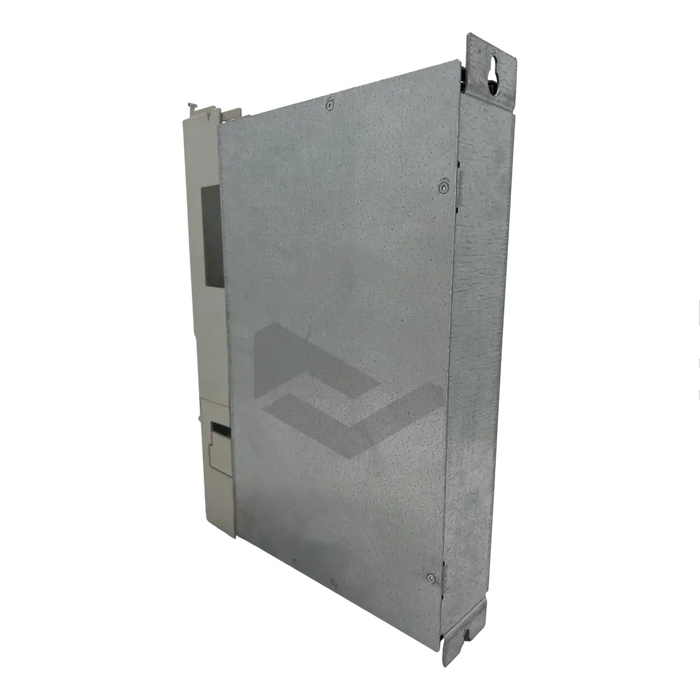

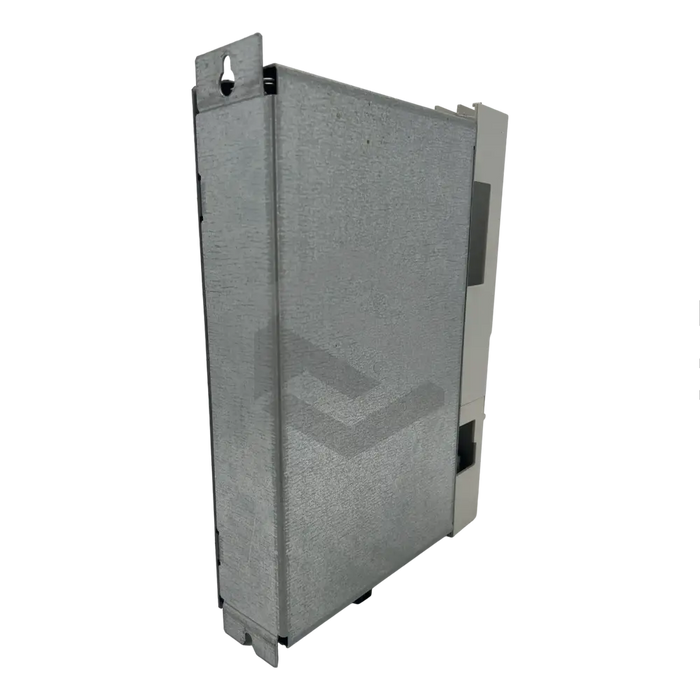

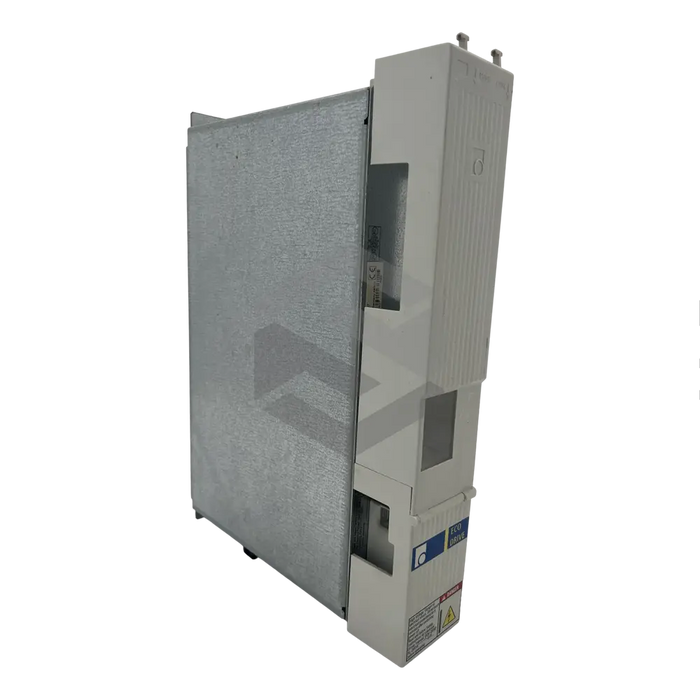

Bosch Rexroth's CZM01.3-02-07 auxiliary capacitance module is designed to reduce the DC bus capacitor load in drive controllers whilst also minimizing power loss inside the control cabinet. With a nominal DC bus capacity of 2.4mF, the module uses natural convection for cooling and offers a tightening torque range of 2.5-3Nm. Weighing 5kg and measuring 6.3 x 36.2 x 26 cm, the unit is constructed from silicone and asbestos-free materials, conforming to CE certification standards. The CZM series auxiliary capacitance module comes with a connection block comprising of 2 / 3 / 3 pins and a M5 ring terminal screw-in connection. It supports an input DC bus voltage ranging from 300 to 800VDC and boasts an insulation resistance of over 25MOhm at 500VDC. For optimal performance, ensure it's installed close to the drive with high DC bus continuous power and positioned with the X5 connection at the bottom.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Series


CZM

Product Model


CZM01.3-02-07

Manufacturer


Bosch Rexroth

Cooling Method


Natural convection

Construction Materials


Silicone and asbestos-free

Weight


5kg

Size


6.3 x 36.2 x 26 cm

CE Certification


Yes

Connector Type


X5

Connection Block Style


2 / 3 / 3 pins

Minimum Tightening Torque


2.5Nm

Maximum Tightening Torque


3Nm

Input DC Bus Voltage


300 to 800VDC

DC Bus Capacity


2.4mF

Positioning


Near the drive with high DC bus continuous power

Insulation Resistance


More than 25MOhm at 500VDC

Nominal Discharge Time Constant


43s

Power Dissipation


50W
