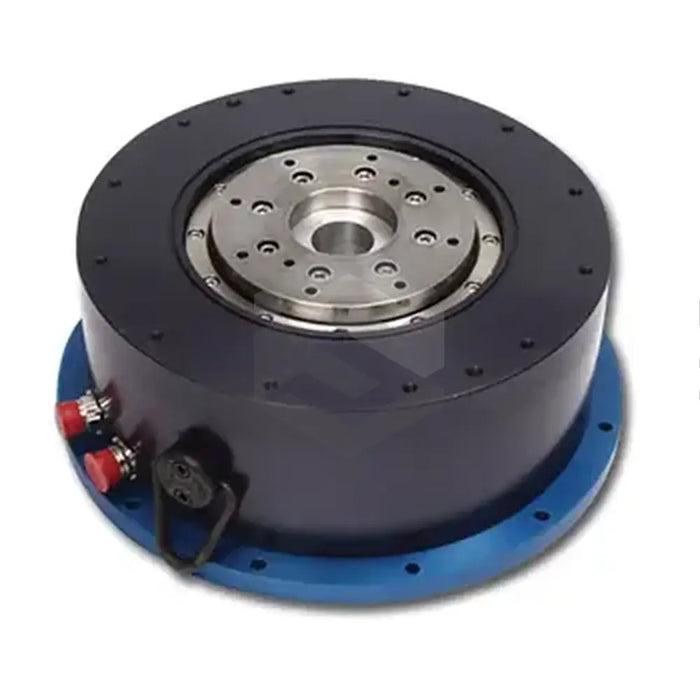

The D083M-22-1310, a Direct Drive Rotary (DDR) motor, is manufactured by Kollmorgen Inc. as part of their D series. This high-torque, low-speed motor is designed for high-precision motion applications, and eliminates the need for additional mechanical transmission systems. With a frame size of 8.6 inches, this DDR motor operates on both 115 volts and 230 volts AC power. Its product code signifies that it is a long stack motor with standard windings. It's fit for flange mounting and straight connectors. The D083M-22-1310 incorporates a straight through shaft with face coupling, a sine encoder feedback device, a single bearing design, and is a non-sealed unit.
30 Day Warranty
Technical Specifications
  • Product Code: D083M-22-1310
  • Manufacturer: Kollmorgen Inc.
  • Voltage: 115 volts, 230 volts AC
  • Frame size: 8.6 inches OD
  • Stack: Long
  • Winding Standard: M
  • Mounting Option: Flange
  • Connector Type: Straight
  • Shaft: Straight thru with face coupling
  • Feedback Device: Sine encoder
  • Bearing Design: Single
  • Seal Type: Non-sealed
