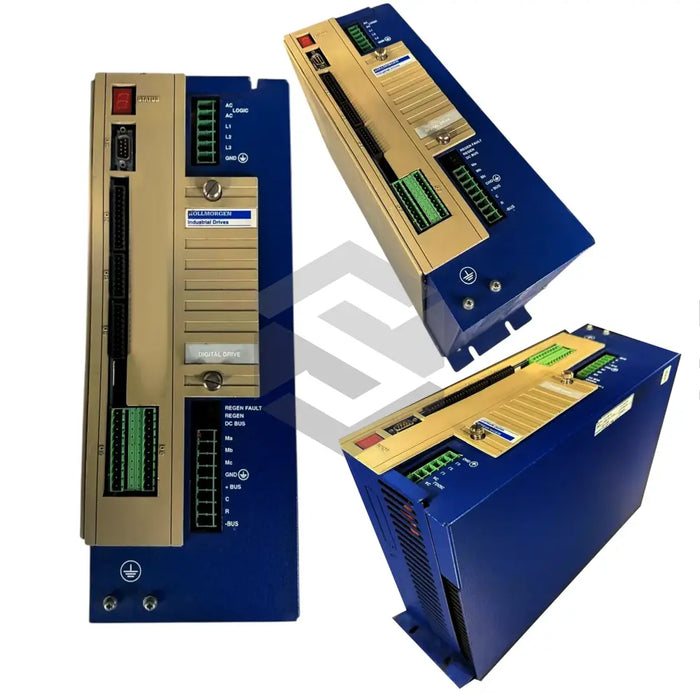

D55001-00000000
by Kollmorgen
The Kollmorgen D55001-00000000 is a high-performance Smart Drive in the Goldline Smart Drives series, designed for precision motion control in industrial automation. This controller module accepts an input voltage range of 100–240 VAC and delivers a rated output current of 55 A, ensuring robust and reliable operation. Key features include two CAN interfaces for networked control and electrically isolated interfaces for enhanced safety. Its primary function is to regulate three-phase motor speed and torque with exceptional accuracy.
In terms of technical specifications, the D55001-00000000 Smart Drive operates on a DC voltage range of 295 to 360 V and employs a 10 kHz PWM switching frequency for smooth, low-ripple current control. The drive can supply a peak current of 110 A for up to two seconds, supporting transient overloads with ease. Built-in safeguards protect against over-current, over-voltage (trip at 430 Vdc), under-voltage, control voltage loss, feedback loss, over-speed, resolver loss, and thermal overload. Data integrity is maintained via EEPROM checksum storage, and the drive maintains an RMS/Avg. current ratio of ≤1.01 for stable operation.
Additional features include a single-phase power supply of 95 to 254 VAC, consuming just 14.5 W at idle. The electrically isolated interfaces improve noise immunity and reliability in harsh industrial environments. Mounting is achieved via screw-in installation (TB712 terminal block ordered separately), facilitating modular upgrades. With its network capability, compact design, and comprehensive protection features, the D55001-00000000 Smart Drive enhances efficiency, reduces downtime, and delivers dependable performance in demanding industrial applications.
