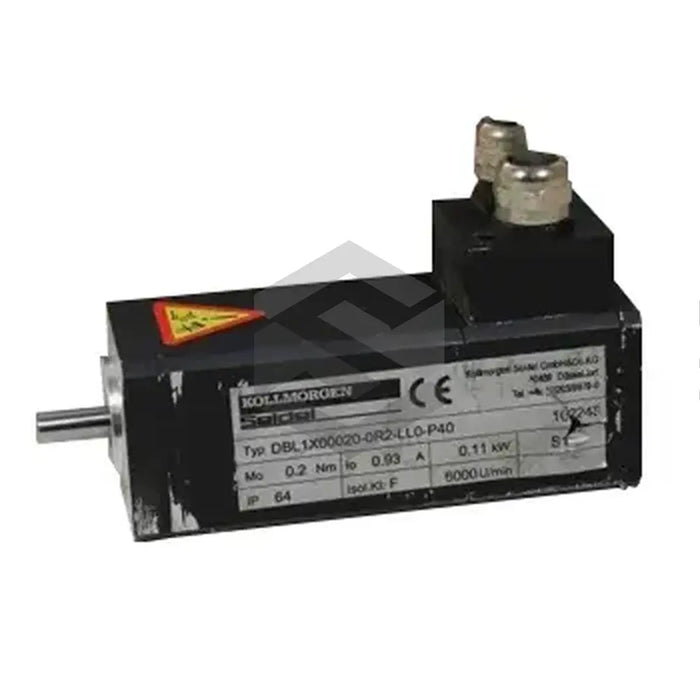

P image of DBL1X00020-0R2-LL0-P40

DBL1X00020-0R2-LL0-P40

by Kollmorgen
$1,177.28 - $1,177.28
$1,177.28
$1,177.28 - $1,177.28
$1,177.28

In Stock, Ships Fast

The Kollmorgen DBL1X00020-0R2-LL0-P40 is a brushless servo motor with a standard 37mm flange size. It operates at a rated torque of 0.20 Nm and current of 0.93 Amps, and is designed for 230V AC inputs. It offers a max speed of 6000 RPM and power output of 0.11 kilowatts, with the capacity to withstand peak current of 4.2 Amps. This motor neither comes with a holding brake, nor allows for later additions. It supports feedback via a 2-pole resolver, and is equipped with 0.8-meter flying leads for motor connections. The smooth-shaft motor comes in an IP54 rated housing, ensuring resistance against dust and water splashes from any direction. Key specifications include 0.08 kg cm2 rotor inertia and 0.01 Nm static friction torque. This motor weighs 0.45 kilos and is fit for ambient temperatures between +5 and +40 degrees Celsius. For temperatures above 0 degrees Celsius, consultation with the Kollmorgen's application department is recommended.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Motor Type

Standard Brushless Servo Motor

Flange Size

37 mm

Rated Torque

0.20 Nm

Rated Current

0.93 Amps

Input Rating

230 Volts AC

Motor Speed Rating

6000 RPM

Power Output

0.11 KW

Peak Motor Current

4.2 Amps

Holding Brake

Not Available

Feedback

2-Pole Resolver

Motor Connections

0.8-Meter Flying Leads

Shaft

Smooth

Motor Housing

IP54

Rotor Moment of Inertia

0.08 kg cm2

Static Friction Torque

0.01 Nm

Thermal Time Constant

20 Minutes

Weight

0.45 kg

Radial Load at Shaft End

60 N

Axial Load

60 N

Motor Length

83 mm

Motor Diameter

37 mm

Radial Forces

200 N at 500 RPM, 160 N at 1000 RPM, 100 N at 2500 RPM, 75 N at 6000 RPM

Magnet Type

Permanent

Winding Type

Three-Phase

Recommended Ambient Temperature

+5 to +40 degrees Celsius
