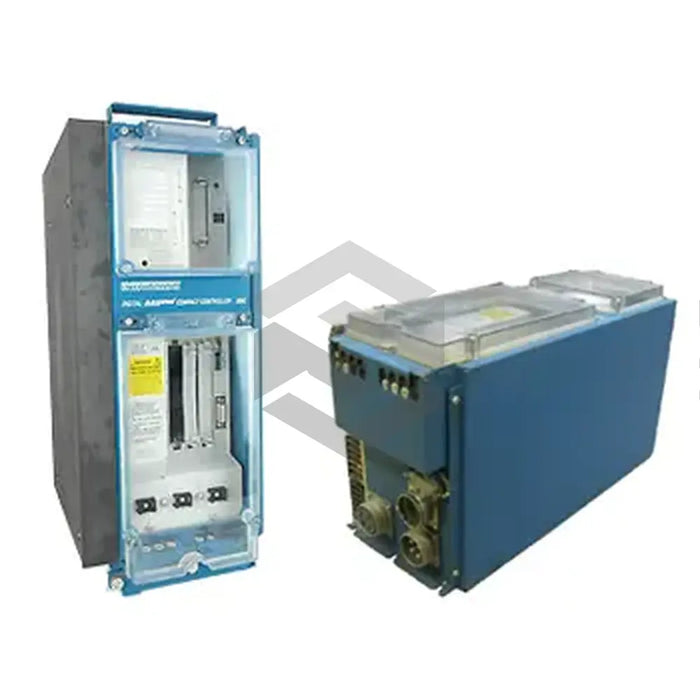

series image of DDC01.1-K050A-DG04-00

DDC01.1-K050A-DG04-00

by Bosch Rexroth Indramat
$2,250.81 - $2,250.81
$2,250.81
$2,250.81 - $2,250.81
$2,250.81
Available, Shipping Varies
The DDC01.1-K050A-DG04-00 is a drive controller, produced by Bosch Rexroth Indramat, with parameters input via a CTA programming display unit. These parameters are stored on a DLC card, complete with a lithium battery backup, expected to last ten years. The controller employs emulation software to replicate the VT-100 terminal. This interface is visualised on a PC monitor connected to the controller. Parameter inputs are made through several means like the motion manager and the DDS2PC input aid. The controller connects to a PC or a VT-100 terminal through an X2 connector utilizing an IN 391 service cable. To display the input parameters, the PC must be equipped with an IBM, MS-DOS, RS-232 interface, and disk storage for controller parameters, along with VT-100 terminal emulation software. An Interface Switch Box ISB-3 is used for the DLC single-Axis Positioning Module's setup and service.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product: DDC01.1-K050A-DG04-00 Drive Controller
  • Programming Unit: CTA
  • Parameter Storage: DLC card, backed up by lithium battery
  • Software Compatibility: Emulation software for VT-100 terminal
  • Parameter Input Methods: Motion Manager and DDS2PC Input Aid
  • PC or VT-100 Terminal Connection: X2 connector via IN 391 service cable
  • Required PC Specifications: IBM, MS-DOS, RS-232 interface, disk drive, emulation software for VT-100 terminal
  • Accessories: Interface Switch Box ISB-3 for service and startup of DLC Single-Axis Positioning Module
  • ISB-3 Functions: Parameterization and diagnoses of the DLC and drive controller via the CTA, E-stop cutoff, switching off the DLC system inputs, turning off seven freely-programmable inputs.
