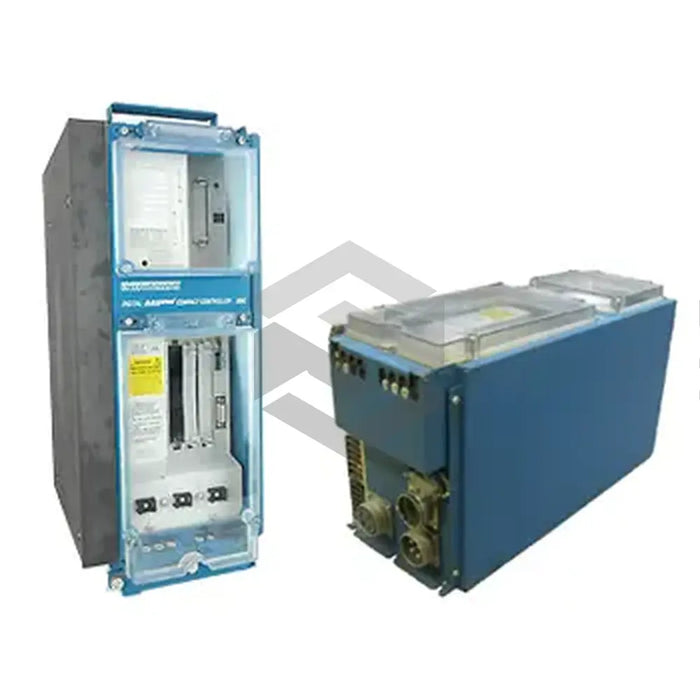

S image of DDC01.1-K100A-DA02-00

DDC01.1-K100A-DA02-00

by Bosch Rexroth Indramat
$2,263.77 - $2,263.77
$2,263.77
$2,263.77 - $2,263.77
$2,263.77

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat DDC01.1-K100A-DA02-00 requires sufficient air space for cooling during installation and a 300mm distance from heat-sensitive machine parts due to the bleeder resistor's heat generation. Connection to the feedback motor should ensure radial and axial compatibility with all machine parts. The re-circulating ball screw should be connected using a toothed belt reduction gear with an overhung lock washer. A reduction gear provides rigidity and dynamic stability to the feed axis, and front bearings facilitate quick pairing processes. The controller integrates with the DLC module for comprehensive and demanding operations. Guidelines for avoiding signal interference include connecting all analog signals on one side, using shields for digital signals, and maintaining specific distances and crossing angles between certain cables. IP 65 connectors facilitate power and interface connections, while other cables like the motor feedback are inserted into the controller via a cable lead-through at the base of the drive.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

DDC01.1-K100A-DA02-00

Installation Requirements

Units should be mounted with sufficient air space for cooling, 300mm distance maintained from heat-affected or flammable parts

Feedback Motor Compatibility

Must have enough radial and axial compensation with all other machine parts

Re-circulating Ball Screw Compatibility

Should be paired using a toothed belt reduction gear with a mounted overhung lock washer

Servo Motor Compatibility

Enabled by front bearings for easy and fast pairing operation

Module Integration

DLC module for comprehensive and demanding operations

Application

Intensive applications in transfer facilities and sequential finishing

Signal and Power Connection Guidelines

Analog signals on one side, shields on both ends of digital signals, signal and control leads 10cm away from power cables, control leads only cross power cables at a 90-degree angle, inductive loads operated with overvoltage limiters

Connectors

IP 65 connectors used for power connection, motor power line and interface to machine control

Additional Cable Connections

Motor feedback cable and optional plug-in modules inserted through cable lead-through on lower part of drive.
