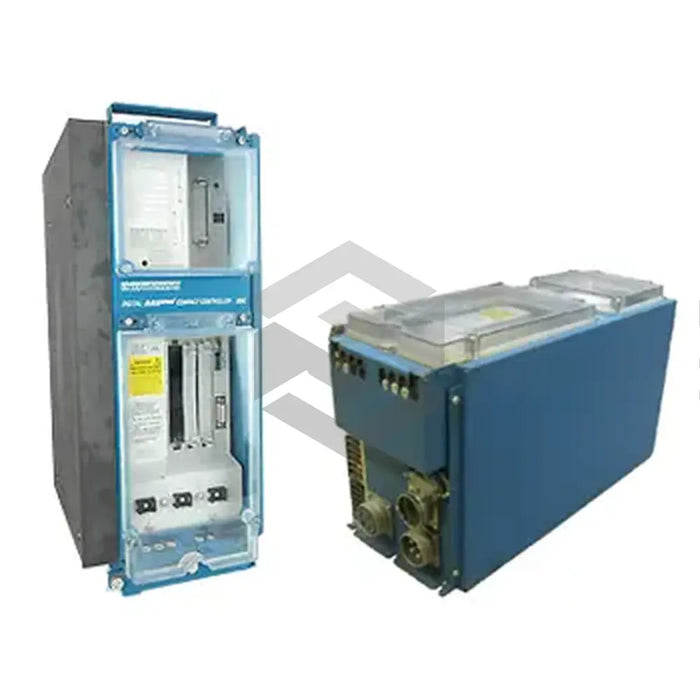

S image of DDC01.1-K100A-DL01-01-FW

DDC01.1-K100A-DL01-01-FW

by Bosch Rexroth Indramat
$2,365.47 - $2,365.47
$2,365.47
$2,365.47 - $2,365.47
$2,365.47

In Stock, Ships Fast

Produced by Bosch Rexroth Indramat, the DDC01.1-K100A-DL01-01-FW is a digital servo drive designed to function with a one-axis positioning module and a MDD series servomotor. This servomotor must be separately obtained. The X4 connector of this product facilitates motor feedback connection, and the unit's software module slot is found on the top half of the device's front panel. The drive enables perpendicular control and signal leads. Housed in compact or modular designs, it offers IP 65 and IP 10 protection levels respectively. With up to 3,000 blocks programming support, the drive needs regular cleaning. Connectivity features include an input/output interface or an interbus S interface module. To ensure smooth airflow, unrestricted installation is advised. At the base, you'll find the blower, mains, and motor power connectors while the X3 connector connects analog inputs and outputs.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Digital Servo Drive

Model

DDC01.1-K100A-DL01-01-FW

Compatibility

Servomotor of the MDD series and positioning module

Firmware

Must be procured separately

Connector X4 Usage

Motor feedback connection

Software Module Slot Location

Top half of the front panel

Signal Leads Requirement

Always be perpendicular to control leads

Functionality

Digital positioning controller with one axis

Housing Designs Supported

Both compact and modular

Compact Housing Protection Level

IP 65

Modular Housing Protection Level

IP 10

Servo Drive Connection

Motor power cable and motor feedback cable

Programming Support

Up to 3,000 blocks

Software Module

Incorporates drive parameters and operating software

Optional Add-Ons

Input/output interface or interbus S interface module

Interbus Module Functionality

Connectivity to an interbus S data highway

Installation Requirement

No restriction to air exit or entry

Bottom Connectors

Blower, mains, and motor power connectors

Connector X3 Usage

Analog inputs and outputs connection.
