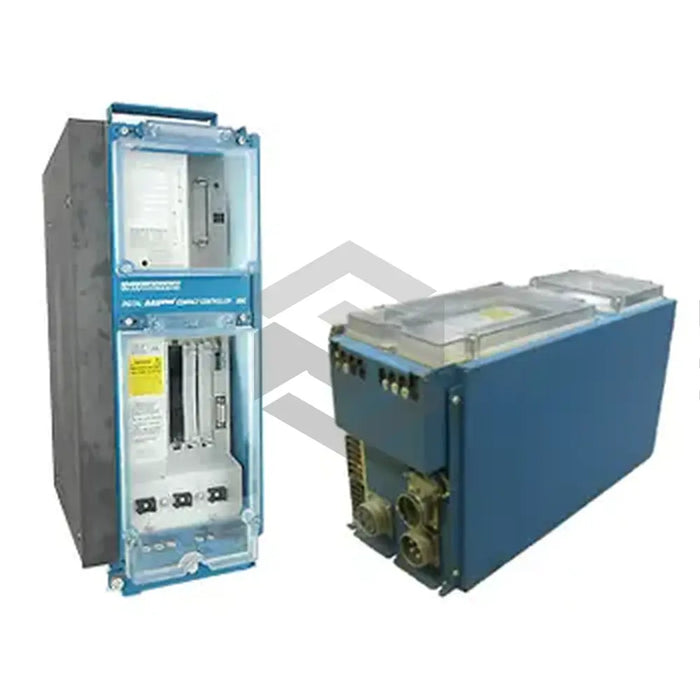

DDC01.1-K200A-DL02-01-FW
The Bosch Rexroth Indramat DDC01.1-K200A-DL02-01-FW servo compact controller is part of the DDC Digital Intelligent Servo Drives series, engineered by Bosch Rexroth Indramat for precise motion control applications. With a Rated Current of 200 A and an Air, Natural Convention Cooling Type, this controller manages high-current three-phase drives while maintaining optimal temperatures. It features a Single Axis Positioning Control command module that allows direct integration with single-axis systems, providing accurate positioning and repeatable motion control. Designed to be mounted directly to a forward feed unit, it supports maintenance-free operation and vertical installation for unrestricted air flow.
This digital drive measures 657.5 mm in overall length with the blower installed and 517.5 mm without, making it compact yet powerful. The front panel incorporates an H1 LED status display and an S1 fault reset key for immediate diagnostics and recovery. Power connections are made through the robust X7 connector, while optional plug-in modules and the motor feedback cable attach beneath the unit. The controller delivers dynamic braking to bring a connected synchronous motor to a standstill, and requires grounding in accordance with manufacturer guidelines. Its IP65 protection rating ensures resistance against dust and water ingress, safeguarding internal electronics in harsh industrial settings.
The DDC01.1-K200A-DL02-01-FW offers broad compatibility with Bosch Rexroth’s CTA display and programming unit, enabling parameterization via Motion Manager editor and communications program. Firmware is supplied as a separate subitem, and drive parameters must be programmed after power-on to ensure safe start-up. The housing and natural convection design guarantee durable, maintenance-free operation, while the standardized noise emission at motor (50 A–200 A rated current) supports compliance with industrial noise regulations. Backed by a one-year Wake Industrial warranty and shipped through a reliable distribution network, this drive controller delivers enhanced efficiency, precise control, and robust longevity in demanding sequential finishing and automation applications.
