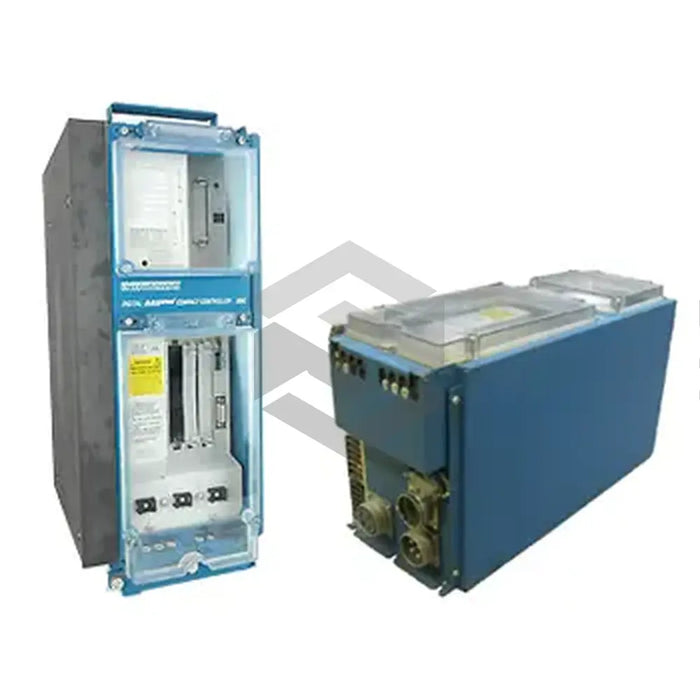

series image of DDC01.2-K100A-DA02-01-FW

DDC01.2-K100A-DA02-01-FW

by Bosch Rexroth Indramat
Request a quote
The DDC01.2-K100A-DA02-01-FW digital servo drive, a product of Bosch Rexroth Indramat, is used across industries for managing diverse tasks. This model is designed with a bleeder resistor, which dissipates extra power during deceleration, with a consistent power output of 0.25 kW and a peak of 10 kW. It comprises a basic unit with a DC bus rectifier, a mains control voltage section, and five slots for installing customizable modules. The drive uses digital servo feedback and uses an ANALOGY interface and the DLC 1.1 module for controlling AC servo motors. Designed to connect directly to the 3 × 220 – 230 V main voltage line, it operates at a frequency of 50/60 Hz. The model is IP65 protection-rated and uses an inbuilt blower for heat regulation. Its power loss stands at 500W with a continuous current of 100A. It can operate efficiently within a temperature range of +5 to +45°C.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Digital Servo Drive
  • Model: DDC01.2-K100A-DA02-01-FW
  • Bleeder Power: Continuous 0.25 kW, Maximum 10 kW
  • Regenerated Power: 5 kWs
  • Unit Composition: Basic unit, 5 plugin slots, configuration rating plate
  • Customization Options: Installable plug-in modules
  • Interfaces: ANALOGY interface (DAA 01.1), DLC 1.1 module, DSM2.1 firmware module
  • Motor Feedback: Digital servo feedback
  • Electrical Connection: 3 × 220 – 230 V main voltage line
  • Operating Frequency: 50/60 Hz
  • Protection Category: IP65
  • Heat Dissipation: Blower unit using ambient air
  • Power Loss: 500 W at 100 A continuous current
  • Allowable Temperature Range: +5 to +45 degree Celsius
  • Ordering Information: Product must be ordered from Servo Supplier
