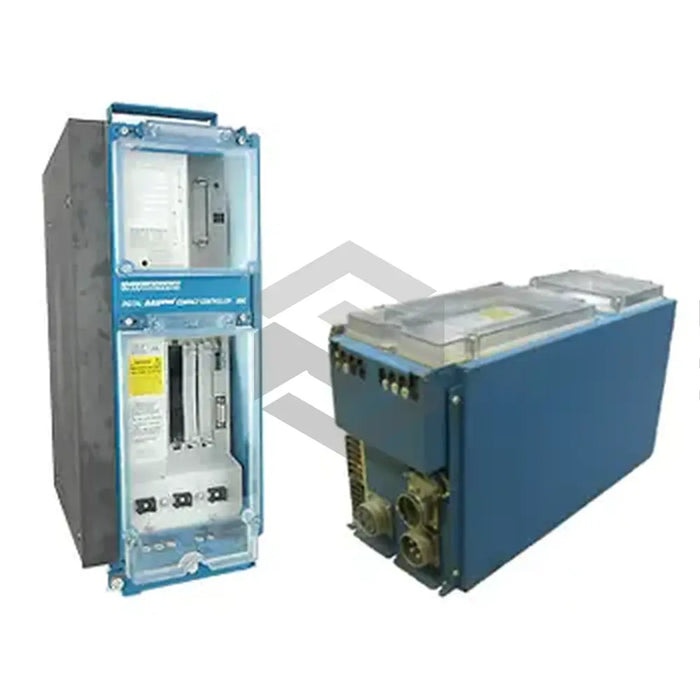

S image of DDC01.2-N100A-DL03-01-FW

DDC01.2-N100A-DL03-01-FW

by Bosch Rexroth Indramat
$2,718.29 - $2,718.29
$2,718.29
$2,718.29 - $2,718.29
$2,718.29

In Stock, Ships Fast

The Bosch Rexroth Indramat DDC01.2-N100A-DL03-01-FW from the DDC Digital Intelligent Servo Drives series is a robust intelligent servo drive designed for industrial automation. It accepts an input voltage of 3x 220 V (+15%/-10%) or 3x 230 V (+10%/-15%), delivers a continuous mechanical load of 6 kW and a short-term mechanical operating load of 12 kW (S6-100s). The drive supports a pulse frequency of 4 kHz and a peak current of 100 A, with a continuous current rating of 35 A. Power requirement at full load is 18 kVA and the module features passive cooling with airflow. It can regenerate up to 10 kWs and its weight is 22 kg, making it a reliable choice for single-axis positioning applications.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Continuous Bleeder Power (p(bd))

0.25 kW

Continuous Current (i(cont))

35 A

Continuous Mechanical Load (p(mech))

6 kW

Frequency (f(n))

50 ... 60 Hz

Input Voltage (u(n))

3x 220 V (+15%/-10%) or 3x 230 V (+10%/-15%)

Maximum Regenerated Power (w(max))

10 kWs

Peak Bleeder Power (p(bm))

20 kW

Peak Current (i(peak))

100 A

Power Loss (p(v))

500 W (without bleeder power loss)

Power Requirement With Maximum Drive Load

18 kVA

Pulse Frequency (f(t))

4 kHz

Short-term Current For 50% At 100 S Duty Cycle (i(s6-100s))

70 A

Short-term Mechanical Operating Load (p(s6-100s))

12 kW

Usable Mechanical Peak Load (p(msp))

17 kW

Weight Of Basic Unit

22 kg
