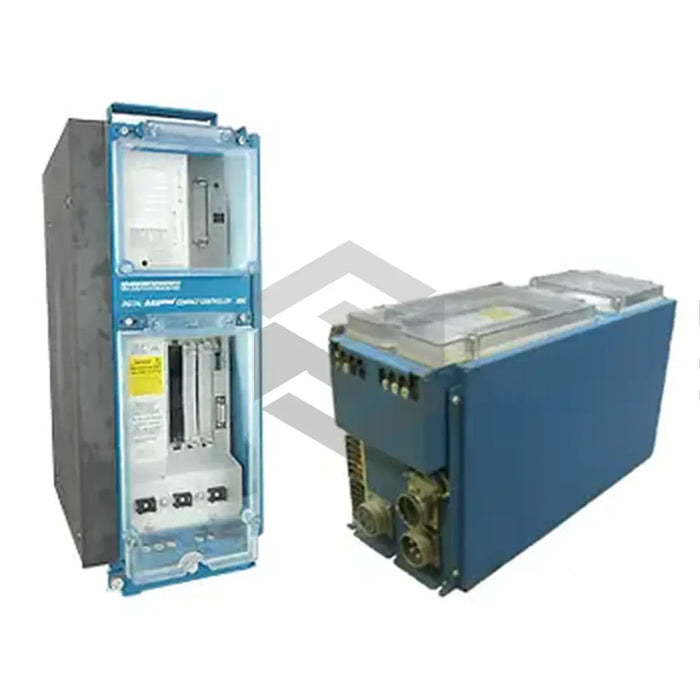

S image of DDC01.2-N200A-DA07-02-FW

DDC01.2-N200A-DA07-02-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DDC01.2-N200A-DA07-02-FW is an IP 65-rated drive controller from Bosch Rexroth Indramat. This unit, essential for controlling and monitoring electric motors, delivers a maximum current of 200 Amps and operates at a frequency range of 50-60 Hz. It is built for an input voltage rating of 3x 230 V (+10%/-15%) or 3x 220 V (+15%/-10%) and delivers a continuous average current of 45 Amps. Weighing approximately 22 kg, this device executes a duty cycle time of 100 seconds and ensures a short-term current of 70 Amps for 50% of the time. It is designed to operate in a humidity range of 5-95% and calls for firmware that must be ordered separately. The device supports an analog interface command module for digital communications and marks a permissible mounting altitude of 1000 meters above sea level. At full load, the drive controller pulls its power requirement of 22.5 kVA.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Drive Controller

Model

DDC01.2-N200A-DA07-02-FW

IP Rating

IP 65

Max Current

200 A

Operating Frequency

50 to 60 Hz

Input Voltage Rating

3x 230 V (+10%/-15%) or 3x 220 V (+15%/-10%)

Average Continuous Current

45 Amperes

PWM Frequency

4 kHz

Unit Weight

22 kg

Duty Cycle Time

100 seconds

Short-term Current

70 Amperes (at 50% duty cycle)

Absolute Humidity

5 % min, 95% max

Absolute Humidity Rating

25 g water/m3 air

Transformer Requirement

IP 55 rated three-phase autotransformer

Firmware

Separately ordered

Power Requirement at Max Load

22.5 kVA

Average Continuous Mechanical Load

7.5 kW

Peak Mechanical Load

33 kW

Motor Feedback

Digital Servo

Interface Command

Analog

Function Code

07

Function Code Version

02

Max Mounting Altitude

1000 meters.
