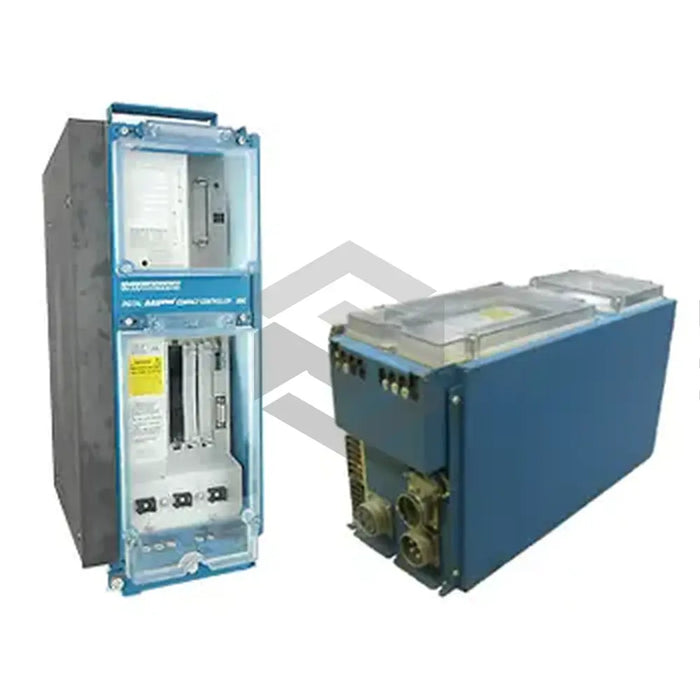

series image of DDC01.2-N200A-DS50-00-FW

DDC01.2-N200A-DS50-00-FW

by Bosch Rexroth Indramat
$8,538.00 - $8,538.00
$8,538.00
$8,538.00 - $8,538.00
$8,538.00
Available, Shipping Varies
The DDC01.2-N200A-DS50-00-FW, produced by Bosch Rexroth Indramat, is a digital servo drive that specializes in managing AC servo motors with intelligent control. This brushless device integrates a CLC-D02.2A multi-axis control module for coordinated and uncoordinated motion control, with the added benefit of inbuilt I/O functions. Communication between the motor and drive is through real-time optical fiber cables, with a DSS 01.3 SERCOS interface positioned in the U1 drive slot. A DEA 4.1 I/O interface, installed in the U3 slot, supports binary signal exchange while the U4 slot remains free for customization. The configuration-ordered DSM 02.1 software module is not inclusive. Key features of this model include a rated current of 200 A, input voltage of 3 × 220 – 230 VAC, a PWM frequency of 4 kHz, power loss of 500 W, and IP65 protection standard. With a weight of 22 kg, the drive has a maximum regenerated power of 20 kWs and is cooled naturally to maintain an ambient temperature of +45 Celsius.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Digital Servo Drive
  • Model Number: DDC01.2-N200A-DS50-00-FW
  • Design: Brushless
  • Control Module: CLC-D02.2A (Multi-axis Coordinate Control)
  • Communication Interface: DSS 01.3 SERCOS (Optical fiber cables)
  • Binary Signals Interface: DEA 4.1 Input/Output Interface
  • Customization: Availability for various plug-in modules
  • Software Module: DSM 02.1 (order separately)
  • Rated Current: 200 A
  • Input Voltage: 3 × 220 – 230 VAC
  • PWM Frequency: 4 kHz
  • Power Loss: 500 W
  • Protection Standard: IP65
  • Weight: 22 kg (excluding plug-in modules)
  • Max Regenerated Power: 20 kWs
  • Feedback System: Digital Servo Feedback
  • Cooling System: Natural Convection
  • Ambient Temperature: +45 degree Celsius
