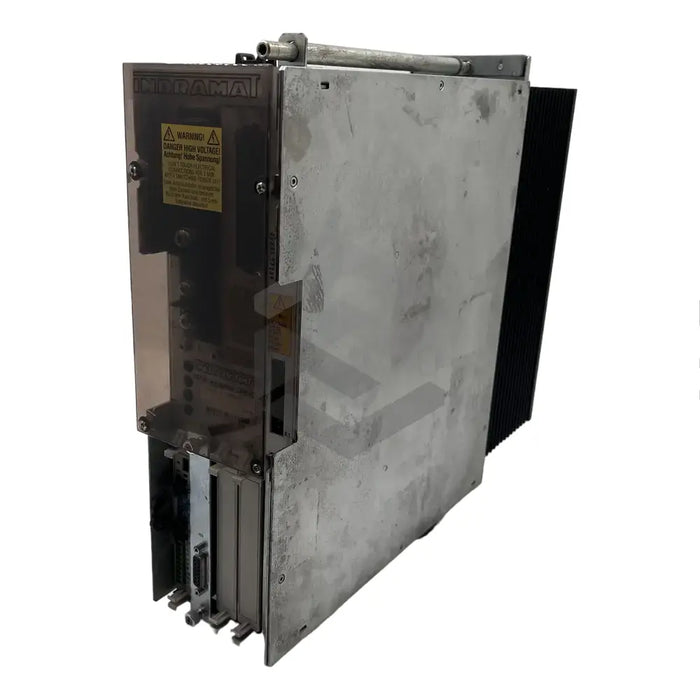

C image of DDS02.1-A050-DS04-01 | Main (Front Left)

DDS02.1-A050-DS04-01

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DDS02.1-A050-DS04-01 is a high-performing digital drive controller by Bosch Rexroth Indramat. Equipped with an intelligent function code of 04, this device operates using cold cooling technology and a current rating of 50 Amperes, offering a maximum continuous current and peak current of 50 Amperes. It features a Digital Servo feedback mechanism and a SERCOS interface command module for enhanced performance. The drive controller operates within an ambient temperature range of 0 – 45 degrees C and can be transported and stored in -30 to 85 degrees Celsius. It has a maximum permissible absolute air humidity of 25 g/m3 and a relative humidity of 95%. The unit boasts an IP 20 protection category and a DC bus voltage of 300 V (+/- 15 %). Operational requirements include a software module, a command interface, and optional auxiliary plugin modules. It connects to supply units with a regulated voltage of DC 24 V.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Design

Rexroth Indramat

Product Type

Digital Drive Controller

Cooling Technology

Cold Cooling

Current Rating

50 Amperes

Feedback Mechanism

Digital Servo

Interface

SERCOS

Function Code

04

Required Components

Software module, Command interface, Optional auxiliary plugin modules

Protection Category

IP 20

Max Permissible Absolute Air Humidity

25 g/m3

Max Permissible Relative Humidity

95 percent

Ambient Temperature Range

0 - 45 degrees Celsius

Transport/Storage Temperature Range

-30 to 85 degrees Celsius

DC Bus Voltage

300 V (+/- 15 %)

Max Peak Current

50 Amperes

Current Consumption

40 mA at DC +24 Volts

Connection

Supply units manufactured by Rexroth Indramat with a regulated voltage of DC 24 V

Input Evaluation

Reference switches, Sensor inputs, and Travel range limit switches

Storage Environment

Dry, Shock-free, and Dust-free

Transportation

Shock-damping supports if necessary

Cable Length

Max 75 meters.
