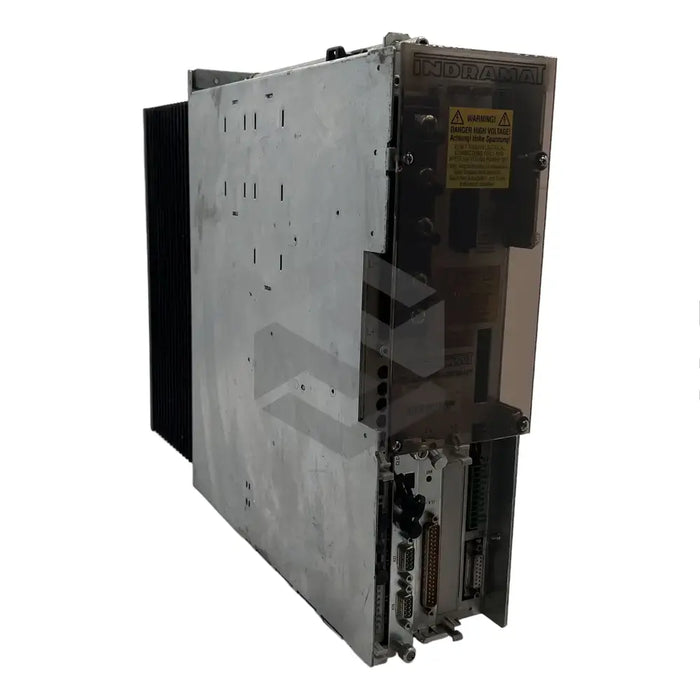

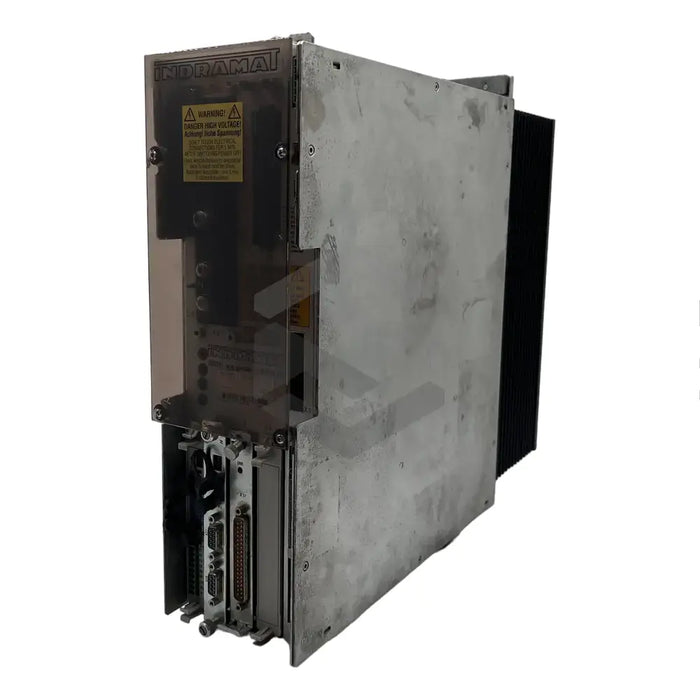

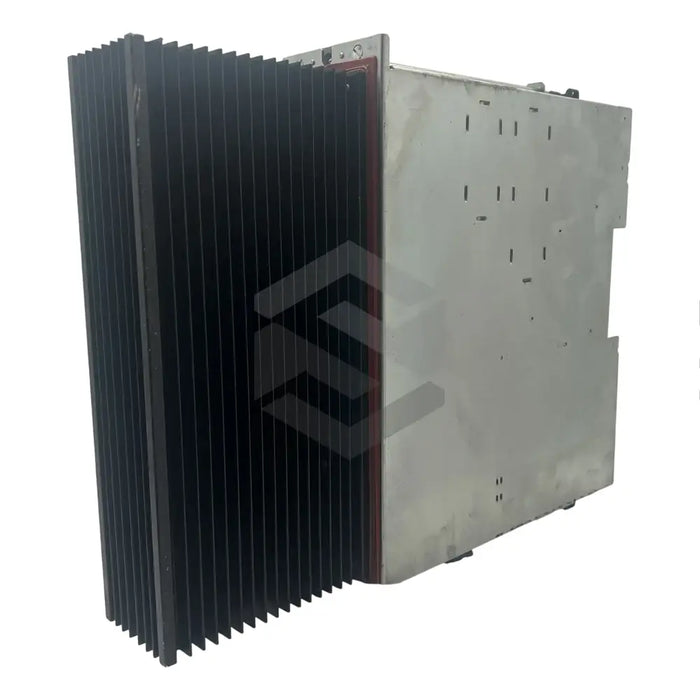

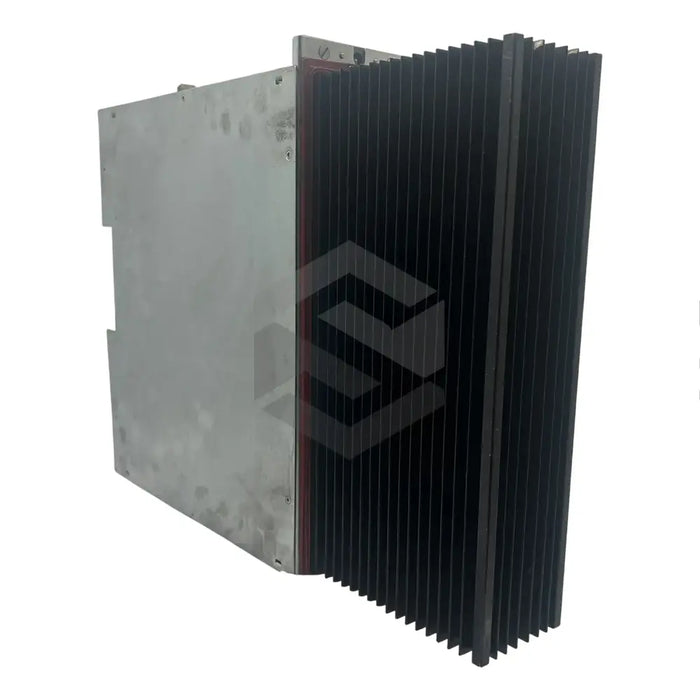

C image of DDS02.1-A050-DS24-03-FW | Main (Front Left)

DDS02.1-A050-DS24-03-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DDS02.1-A050-DS24-03-FW, a product of Bosch Rexroth Indramat, is a digital A.C. drive controller from the DDS Series 2, engineered specifically for effective servo motor control. This pre-configured 11 kg unit features a modular design, making it suitable for various drive applications, and includes all necessary hardware and software. Note that the firmware is acquired as a separate item. Uniquely, it incorporates cold cooling technology, pulling air from outside its IP 10-rated air control cabinet for heat dispersal. The DDS02.1-A050-DS24-03-FW utilizes a digital servo motor feedback, a SERCOS-type command interface module, and has a D.C. bus voltage rating of 300 Volts (± 15 %). It conforms to IP 20 material protection class according to EN 60 529 and experiences an energy loss of 54 Watts in its control cabinet. The device operates optimally at an ambient air temperature range of 0-45 degrees Celsius, or up to 55 degrees if operated at reduced data. Mounting elevation should not exceed 1000 meters above sea level to maintain power rating and specifications.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

DDS controllers Series 2

Purpose

Control of servo motors

Weight

11 kg

Cooling Technology

Cold cooling

Command Interface

SERCOS-type

Feedback Style

Digital servo motor

Bus Voltage

300 Volts (± 15 %)

RH value

Max. 95 %, Min. 5 %

Protection Class

IP 20

Energy Loss in Control Cabinet

54 Watts

Function ID

24

Function ID version

03

Ambient Temperature

0 C – 45 C (Max. 55 C at reduced data)

Acceptable Mounting Elevation

1000 meters above sea level.
