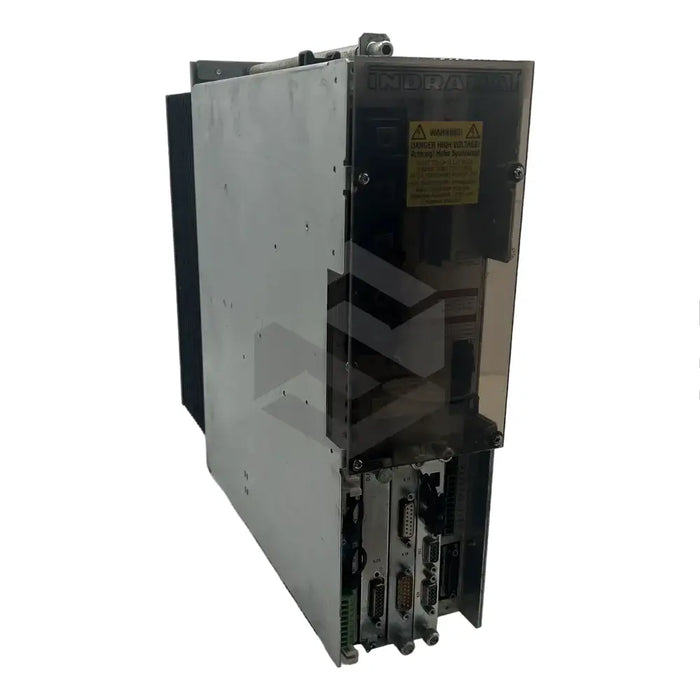

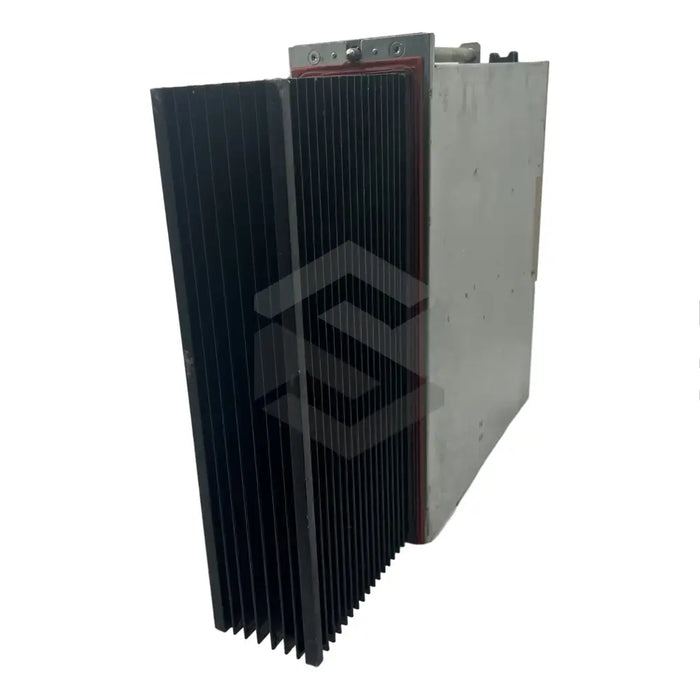

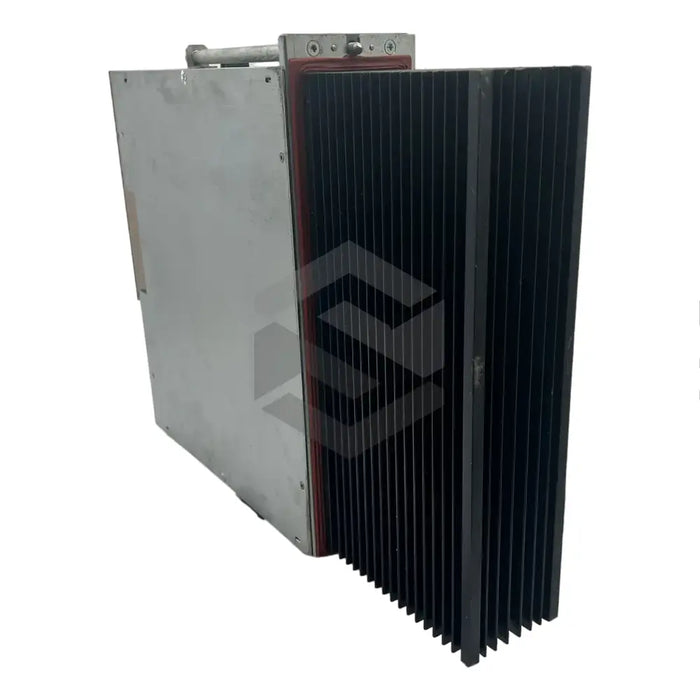

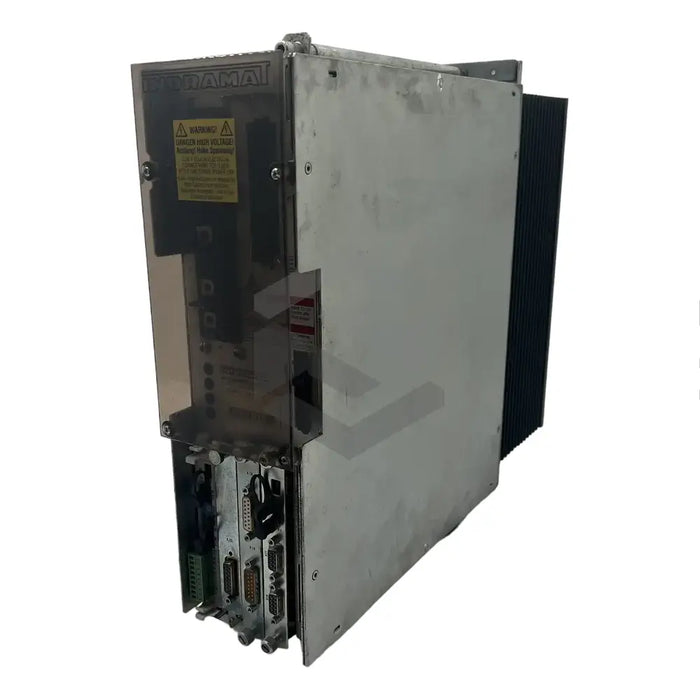

C image of DDS02.1-A100-DS06-02-FW/S002 | Main (Front Left)

DDS02.1-A100-DS06-02-FW/S002

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DDS02.1-A100-DS06-02-FW/S002 is a motor controller product from Bosch Rexroth Indramat, an industry leader in electrical and mechanical automation tools. Distinguished by its IP20 protection category per DIN VDE 0471-1-1992, it safeguards against dust particles larger than 12.5mm but isn't water-resistant. It operates within a temperature range of +0 to +45 degrees Celsius, making it suitable for environments such as machine tools, handling systems, and textile machines. The unit’s storage and transportation range is between -30 to +85 degrees Celsius with relative humidity below 95% to avoid condensation, and its elevation limit is 1000 m/sea level. Richard with an ambient cooling system and temperature sensor, it also includes a digital servo motor. This 11kg module requires a separate firmware module and utilizes an optical fiber cable to connect with its servo motor via the SERCOS interface. Servos are globally distributed by the supplier who also provides advice and maintenance services as needed.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Driver Controller, Servo Motor, Main Filters, Frequency Converter, Braking Resistor

Model

DDS02.1-A100-DS06-02-FW/S002

Series

2nd

Protection Category

IP20 according to DIN VDE 0471-1-1992

Protection against Dust Particles

12.5 mm

Water Resistance

No

Recommended Operating Temperature

+0 to +45 degree Celsius

Typical Usage

Machine Tools, Handling Systems, Textile Machines

Storage and Transportation Temperature Range

-30 to +85 degree Celsius

Relative Humidity

Less than 95% (without condensation)

Max Installation Elevation

1000 m/sea level

Cooling Technology

Airflow out of system

Temperature Control Sensor

Yes

Digital Servo Motor

Embedded

Separate Firmware Module

Required (based on type code)

Weight

11 kg (excluding accessories and mounting unit)

Communication

Real-time communication through SERCOS interface

Connection

Optical Fiber Cable

Rated Current Requirement

100 A

Global Availability

Yes

Maintenance Services

Provided by Servo Supplier.
