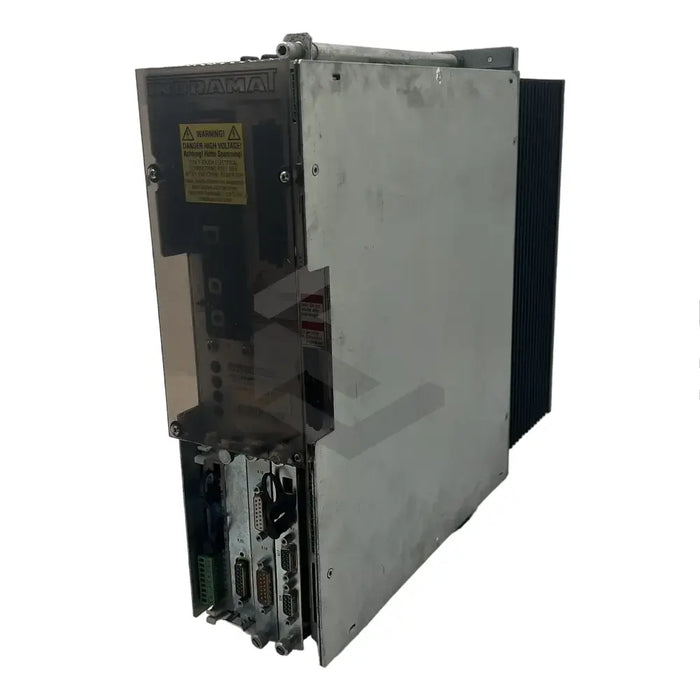

C image of DDS02.1-A100-DS06-03-FW/S002 | Main (Front Left)

DDS02.1-A100-DS06-03-FW/S002

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DDS02.1-A100-DS06-03-FW/S002 is an innovative industrial drive controller designed by renowned manufacturer Bosch Rexroth Indramat. It delivers high operational stability even under the most demanding conditions, making it suited for both commercial and industrial applications. The controller offers an array of sophisticated features, including a main filter, a frequency controller, braking resistors, and a brushless servo motor. It operates optimally between 0 to +45-degree Celsius and its housing adheres to an IP20 protection rating. This model communicates through a SERCOS interface via optical fiber cable and employs digital servo feedback. Notably, the controller is part of the 2nd series in the DDS family and weighs approximately 11 Kg without accessories. The specific firmware for the controller needs to be ordered separately, and only Rexroth-approved products are compatible with this model.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

DDS02.1-A100-DS06-03-FW/S002

Functionality Features

Driver controller, main filter, braking resistors, frequency controller, brushless servo motor

Rated Current Consumption

100 A

Current Consumption (+15 V and -15 V)

150 mA

Current Consumption (+25 VDC)

500 mA

Motor Feedback Current Consumption (+24 V)

40 mA

Standstill Current Consumption

9.5 A

Energy Loss

80 W

Power Loss in Control Current

97 W at 86 A

Installation Requirements

Control cabinet of at least IP54 protection

Product Series

2nd series of the DDS family

Weight

Approximately 11 Kg (excluding accessories)

Communication Interface

SERCOS interface (Optical Fiber Cable)

Feedback Mechanism

Digital servo feedback

Firmware

Ordered separately

Housing Protection

IP20

Ambient Temperature Range

0 to +45 degree Celsius

Additional Requirement

Only Rexroth-approved products are allowed to operate together.
