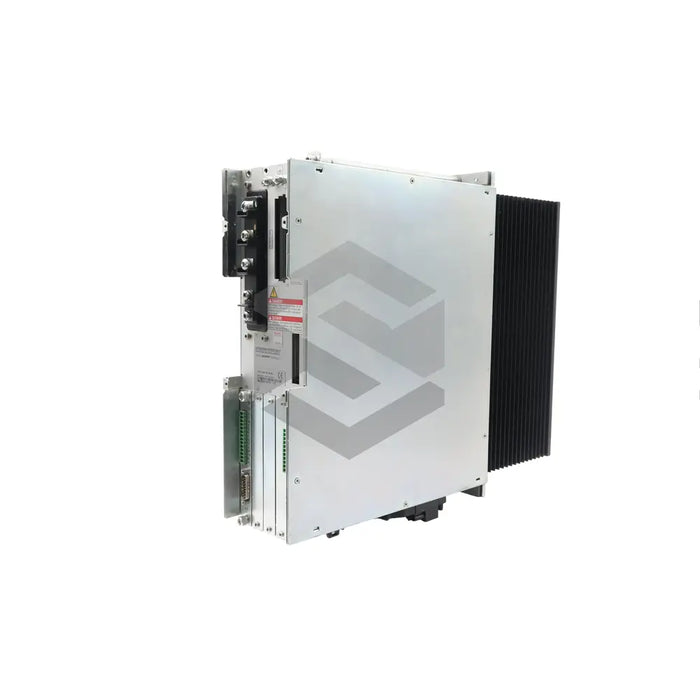

C image of DDS02.1-A100-DS12-01 | Main (Front Left)

DDS02.1-A100-DS12-01

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DDS02.1-A100-DS12-01, a product of Bosch Rexroth Indramat, is an energy-efficient drive controller using modern motion control technology, designed for use specifically with the company's digital servo motor. Communication between the controller and motor is established through the SERCOS interface using an optical fiber cable. It operates with a DC bus voltage input of 300 VDC (with a 15% tolerance) and draws a rated current of 100 A. Power provision includes three DC voltage supplies: +24 V, +15 V, and -15 V. The total weight of this module is 11 kg and it can be installed up to 1000 meters above sea level. Provided with IP20 protection under DIN VDE 0470-1-1992 standards for installation in switchgear cabinets, it functions optimally between 0°C and +45°C.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Drive Controller

Model

DDS02.1-A100-DS12-01

Compatibility

Rexroth Digital Servo Motor

Interface

SERCOS Interface

Data Transmission

Optical Fiber Cable

Rated Current

100 A

Input Voltage

300 VDC (+/- 15%)

DC Voltage Supply

+24 V, +15 V, -15 V

General Unit Current Consumption

1100 mA

Basic Unit Current Consumption (for +/-15 V)

150 mA

Basic Unit Current Consumption (for +24 V)

500 mA

Feedback Unit Current Consumption (for +/- 15 V)

0 mA

Feedback Unit Current Consumption (for +24 V)

40 mA

Maximum Elevation

1000 meters above sea level

Weight

11 Kg

Protection Standard

IP20 (according to DIN VDE 0470-1-1992)

Permissible Temperature Range

+0°C to +45°C
