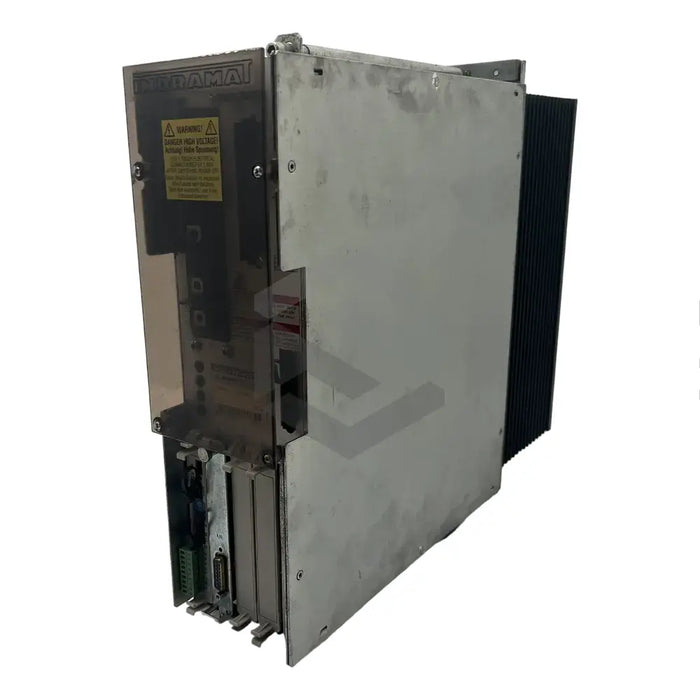

C image of DDS02.1-A100-DS13-01-FW/S002 | Main (Front Left)

DDS02.1-A100-DS13-01-FW/S002

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DDS02.1-A100-DS13-01-FW/S002 is an industrial automation tool made by Bosch Rexroth Indramat, renowned for their drive controllers, servo motors and frequency converters. This second series model uses digital servo feedback to control the speed and position of the shaft. Communication between the motor and controller is facilitated by a SERCOS interface via an optical fiber cable. Also note that the controller's firmware, containing the operating software, needs to be ordered separately. For heat management, the DDS02.1 drive controller employs a cooling technology that uses airflow to draw heat away from the cabinet. The unit needs an electrical connection to a dc-link voltage of 300 VDC with a 15% boost, operates at a nominal current of 100 A and consumes the current of 200 mA at ±15 V, and 1100 mA at +24 V. The model operates best with an ambient temperature range of 0°C to 45°C and 90% humidity.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

DDS02.1-A100-DS13-01-FW/S002

Series

2nd series

Feedback System

Digital Servo Feedback

Communication Interface

SERCOS

Connection Type

Optical Fiber Cable

Firmware

Ordered Separately

Cooling Technology

Airflow out of cabinet

DC-Link Voltage

300 VDC with 15% augmentation

Nominal Current

100 A

Peak Current

90 A

Continuous Current Requirement

80 A

Operating Current

200 mA at ±15 V and 1100 mA at +24 V

Basic Unit Current Utilization

150 mA at ±15 V and 500 mA at +24 V

Feedback Module Current Consumption

0 mA at ±15V and 40 mA at +24 V

Operation Temperature

0°C to 45°C

Humidity

90% equivalent to 25 g/m3

Storage and Transportation Temperature

-30°C to +85°C.
