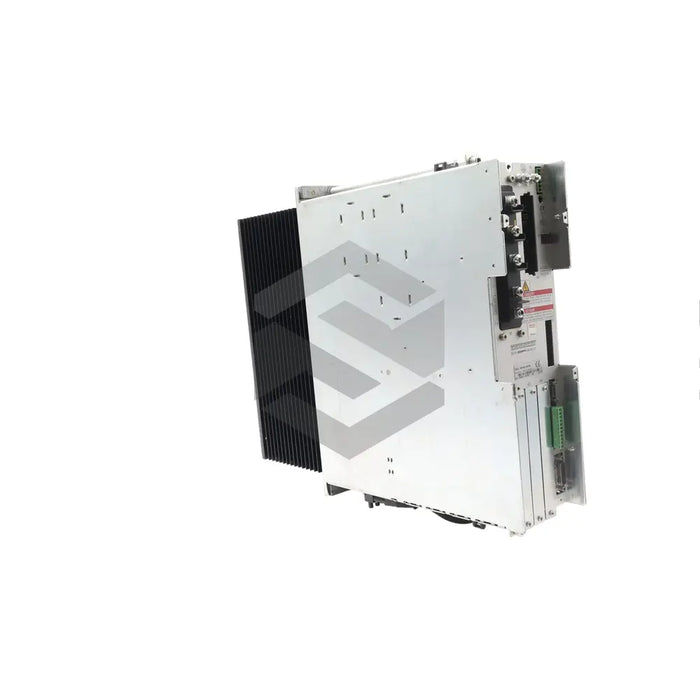

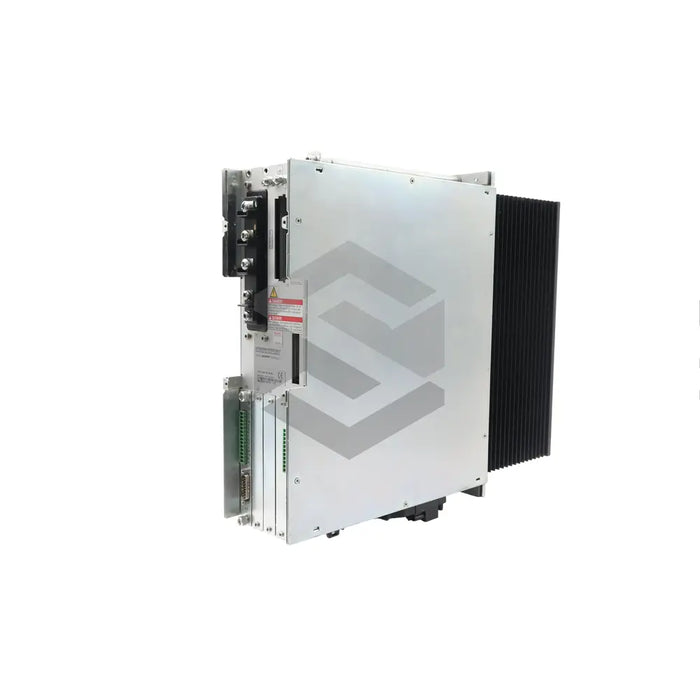

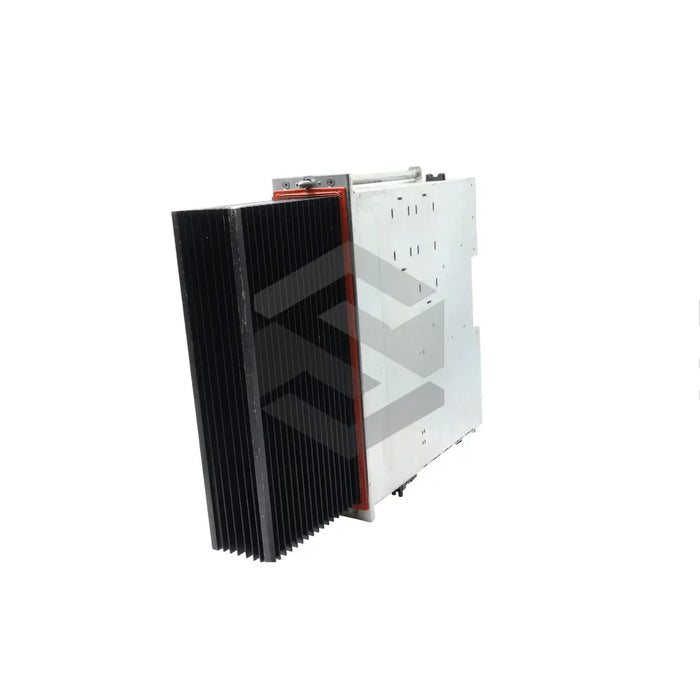

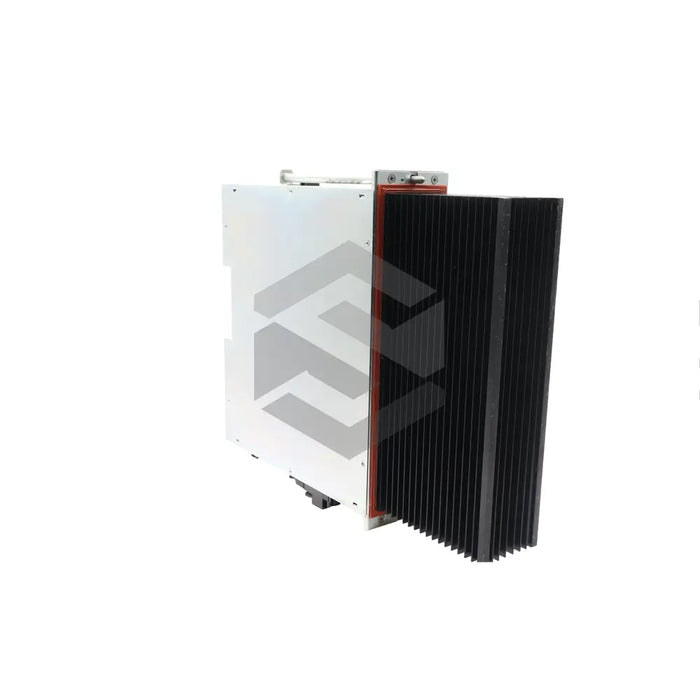

C image of DDS02.1-A100-DS23-03 | Main (Front Left)

DDS02.1-A100-DS23-03

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
Produced by Bosch Rexroth Indramat, the DDS02.1-A100-DS23-03 drive controller belongs to the Indramat DDC series. Designed with a cold technology cooling system, the 11kg drive controller can dissipate heat beyond its cabinet, an advantage for space-limited applications. Compatibility is common with most Rexroth Indramat supply units offering regulated DC voltage, but not necessarily with the unregulated TVM 1.2 power supply units. The device comes with a digital servo motor feedback mechanism and a current rating of 100 A, also incorporating a SERCOS interface for command communication. The compatible software module hosts the drive parameters and the firmware, and the hardware configurations dictate the required software modules. The device is designed for installation in control cabinets, meeting IP 10 class protection by DIN 40 050 regulations. Function ID is 23 with a function ID version of 03. The optimal operating environment ranges from 0 to 45 degrees Celsius and up to 1000m altitude. The packaging contains pre-configured components including the primary controller unit, firmware, plugin and software modules.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Drive Controller

Model

DDS02.1-A100-DS23-03

Series

DDC

Cooling System

Cold Technology

Weight

11 kg

Compatibility

Mainly with Rexroth Indramat supply units providing regulated direct current voltage

Incompatibility

Possibly with Unregulated TVM 1.2 power supply units

Feedback System

Digital Servo Motor

Current Rating

100 A

Command Communication

SERCOS Interface

Heat Dissipation

Mainly outside the cabinet

Software Requirement

Determined by hardware configuration

Software Content

Firmware and Drive Parameters

Installation Requirement

Control Cabinet

Protection Class

IP 10 (DIN 40 050)

Function ID

23

Function ID Version

03

Environmental Temperature Range

0 to 45 degrees Celsius

Maximum Setup Altitude

1000 meters

Configuration

Basic Unit, Plugin Modules, Software Modules, Firmware.
