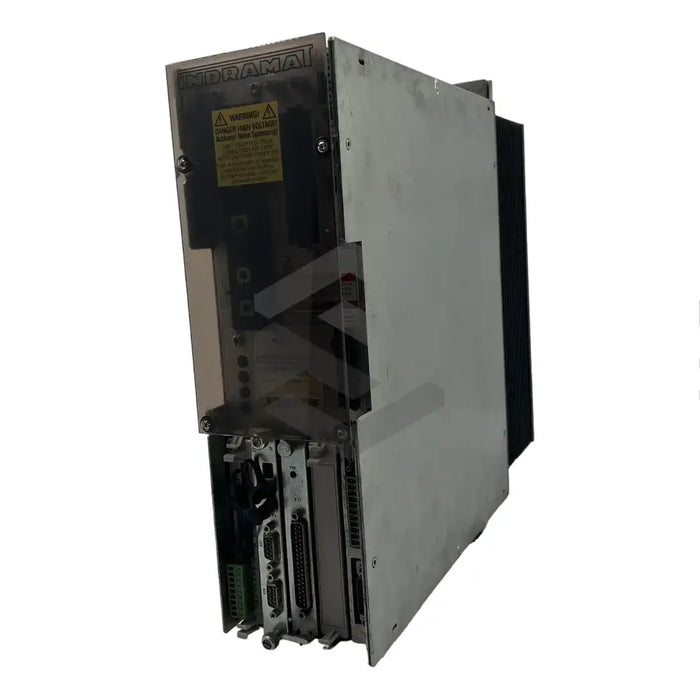

C image of DDS02.1-A100-DS24-04-FW | Main (Front Left)

DDS02.1-A100-DS24-04-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DDS02.1-A100-DS24-04-FW is a configurable DDS drive controller from Bosch Rexroth Indramat, equipped with specific software and components to carry out various functions. It features a firmware responsible for the primary operations, plugin modules, and software modules. Rated at 100 Amps, the controller employs air-cooling technology and a digital servo feedback motor. It utilizes the SERCOS interface for communication and has a function ID of 24 with a version of 00. The unit operates at a D.C. voltage of 300 volts (±15%), dissipating 97 Watts of power. It requires a 40 mA current at 24 volts, and the storage temperature ranges between -30 oC to 85 oC. Operating best with supply units from Rexroth Indramat, it is unsuitable for use with the unregulated TVM 1.2 series of power supply units. The controller can support a range of drive applications, with software modules including drive instructions, settings, and firmware, and allows for parameter transfer between similar units.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

DDS02.1-A100-DS24-04-FW

Amperes

100

Cooling Technology

Air

Motor

Digital Servo Feedback Motor

Primary communication module

SERCOS Interface

Function I.D

24

Function I.D. Version

00

Direct Current Voltage

300 Volts (±15%)

Power Dissipation

97 Watts

Motor Feedback Type Current Consumption

40 mA at 24 Volts

Transport and Storage Temperature Range

-30 oC to 85 oC

Continuous Current

80 Amps

Max Continuous Current

90 Amps

Compatibility

Rexroth Indramat supply units (not suggested for unregulated TVM power supply units, particularly TVM 1.2 series)

Configurable

Yes (Through multiple software and plugin modules)

Applications

Various drive applications through specific software modules.
