S image of DDS02.1-A100-DS63-01-FW

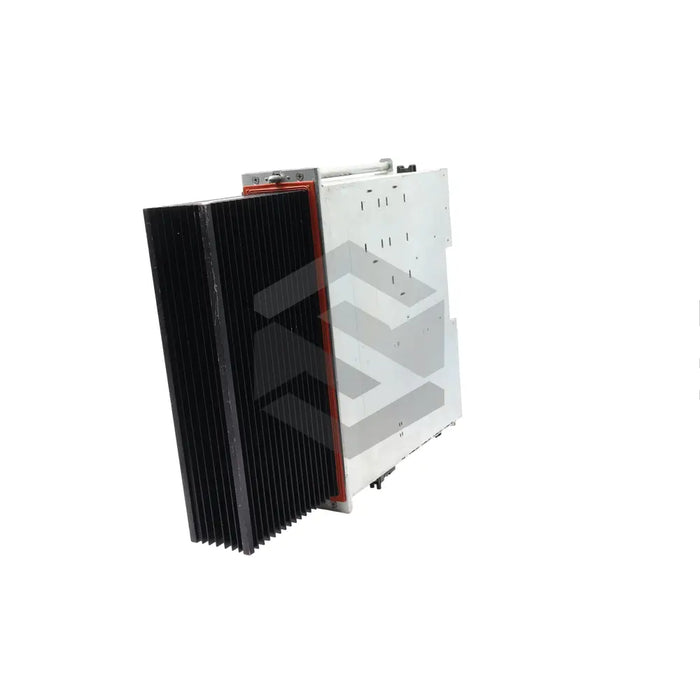

DDS02.1-A100-DS63-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth DDS02.1-A100-DS63-01-FW drive controller is a sophisticated device that utilizes D subminiature connectors or clamps for its signaling lines alongside an X3 connector which serves as an RS 232 interface for PC or VT-100 terminal connections. To ensure safety from unintentional startups, its power connection must be isolated via a starting lockout or emergency stop circuit. The drive controller comes integrated with a basic unit, firmware, and plugin modules, including a software module located in the U5 slot. The firmware receives regular updates to ensure optimal performance. The drive communicates through a fiber optic cable, thanks to its SERCOS interface. Further, the device, which has a rated current of 100A and an 80A continuous current rating, can operate at temperatures up to 55°C. However, it may require air conditioning during operation and does not offer water penetration protection.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

DDS02.1-A100-DS63-01-FW

Signal Line Connector Type

D subminiature plugin connectors or plugin clamps

Connectivity Type

X3 connector that serves as RS 232 interface

Power Connection Requirement

Isolation using a starting lockout or an emergency stop circuit

Unit Components

Basic unit, software and plugin modules, firmware

Software Module Placement

Inserted in the U5 slot at the top

Current Rating

100A

Air Conditioning Requirement

Required during operation

Firmware

Continuous updates without function changes

Communication Interface

SERCOS

Placement of Plugin Modules

Inserted in the U1 to U4 slots

Configuration Plate Feature

Helps to procure the replacement parts

Information on Configuration Plate

COVER indicates the corresponding slot of the basic unit is empty

Continuous Current Rating

80A

Operational Maximum Temperature

55°C

Water Resistance

No protection against the penetration of water.
