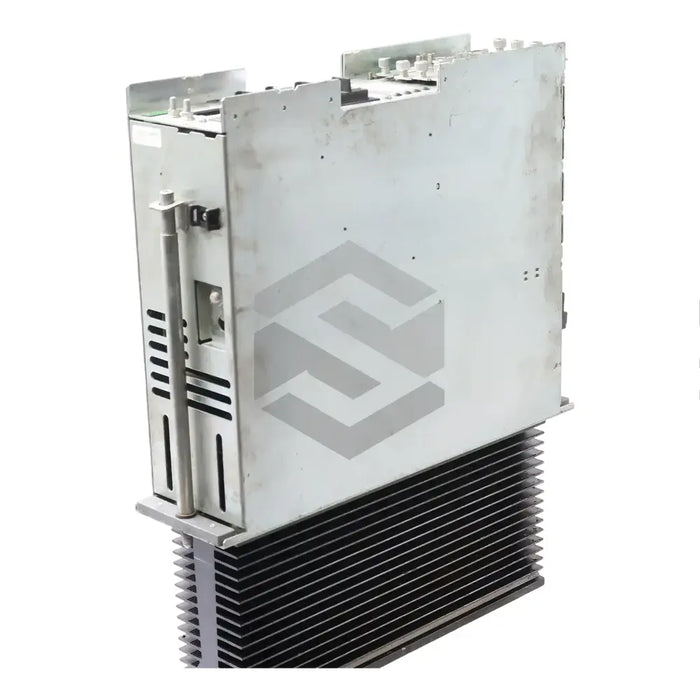

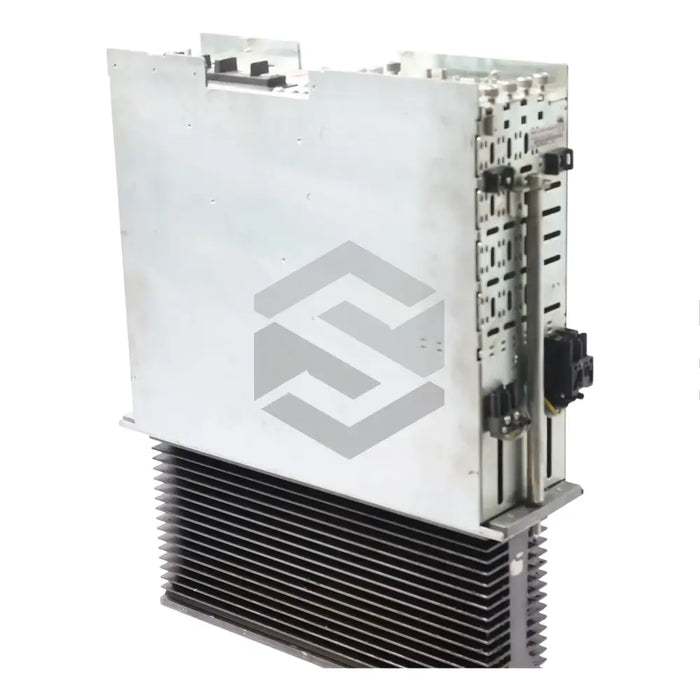

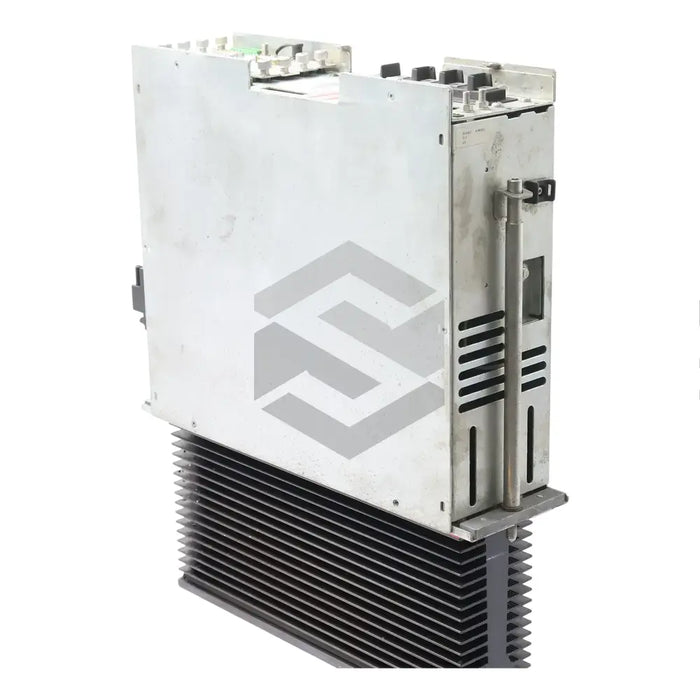

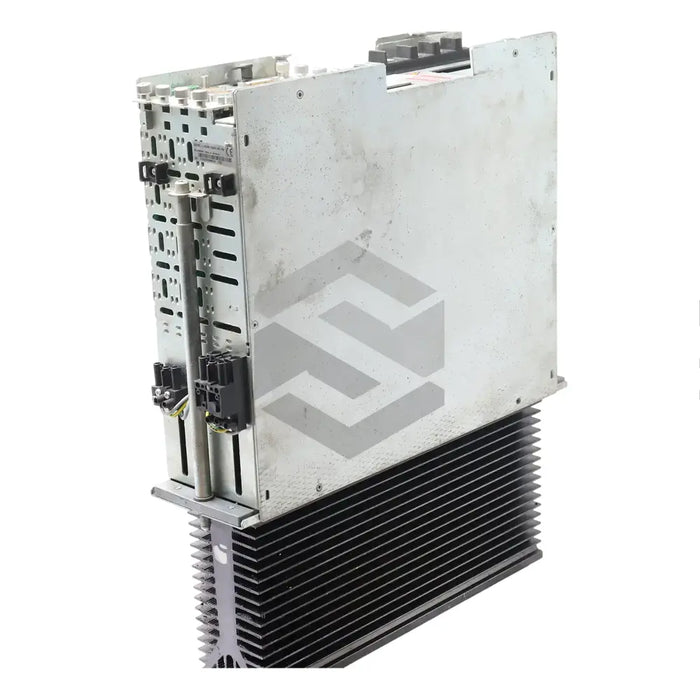

C image of DDS02.1-A100-RA02-02-FW | Main (Front Left)

DDS02.1-A100-RA02-02-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DDS02.1-A100-RA02-02-FW is a drive controller produced by Bosch Rexroth Indramat, renowned for its resolver feedback attribute. Adhering to DIN VDE 0470 specifications, this device comes with IP 20 protective rating and can be installed up to a height of 1,000m above sea level. It is mandatory for the device to be installed in a closed housing or a control cabinet, maintaining certain clearance from controllers or related power supply units. It's a compatible match for the LAR series AC motors, often used in machine tool applications. The operating rules strictly require the use of manufacturer-approved spare parts, installation in commercial machinery, and compliance with national EMC directives. Installation, repair, and cleaning necessitate the deenergization of the product via the master switch. The device is equipped with four plug-in module connections and requires a 115V/230V blower connection. This controller is dispatched via notable logistics freight carriers.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

DDS02.1-A100-RA02-02-FW

Feedback Type

Resolver

Protection Rating

IP 20

Maximum Installation Elevation

1000m over sea level

Function ID Code

01

Compatibility

Manufacturers LAR series of AC motors

Usage

Commercial Machinery Only

EMC Directives Adherence

Mandatory

Grounding Conductor Connection

Permanent

Electrical Connection Touching

Forbidden when ON

Discharge Current

More than 3.5mA

Potential Issues

Dangerous movements due to software errors or faulty wiring

De-energization

By master switch

Installation Caution

Avoid pinching or crushing

Plug-in Module Connections

Four

Blower Connection Requirement

Connected next to controller with 115V/230V

Connector Housing

Must be shielded

Delivery

Via reputed logistics freight carriers
