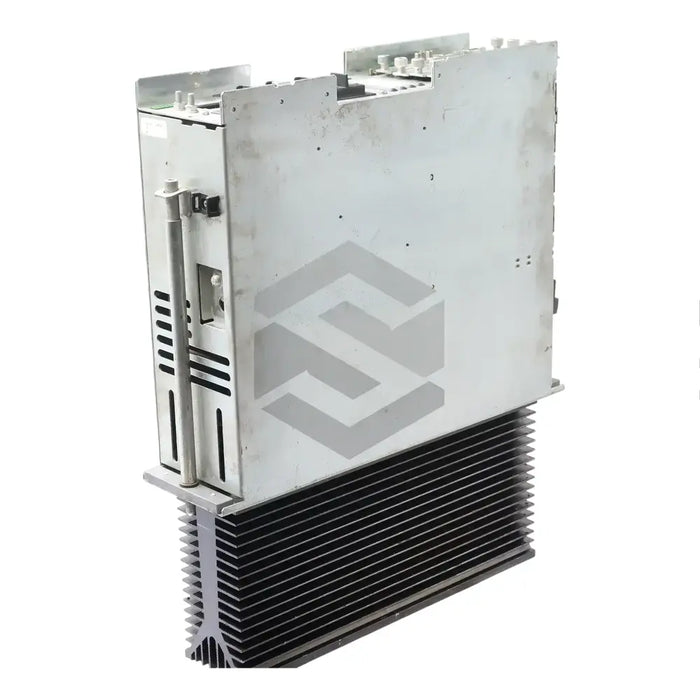

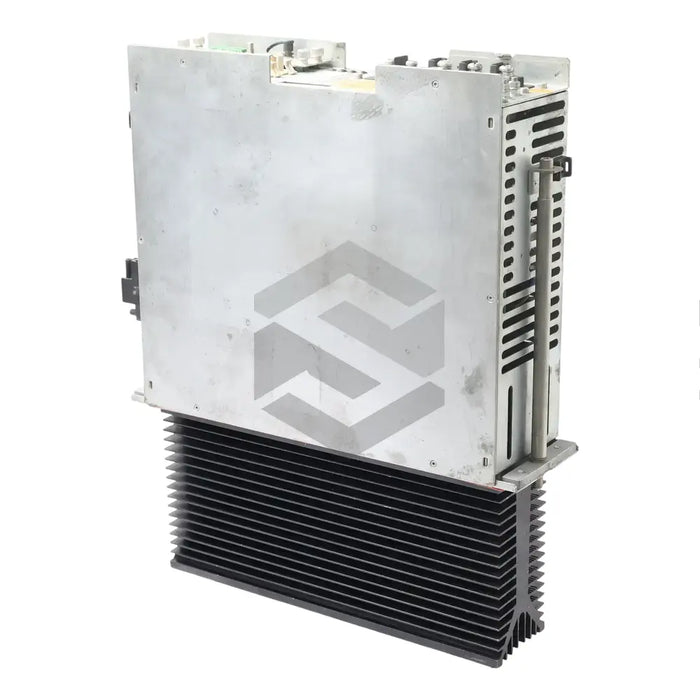

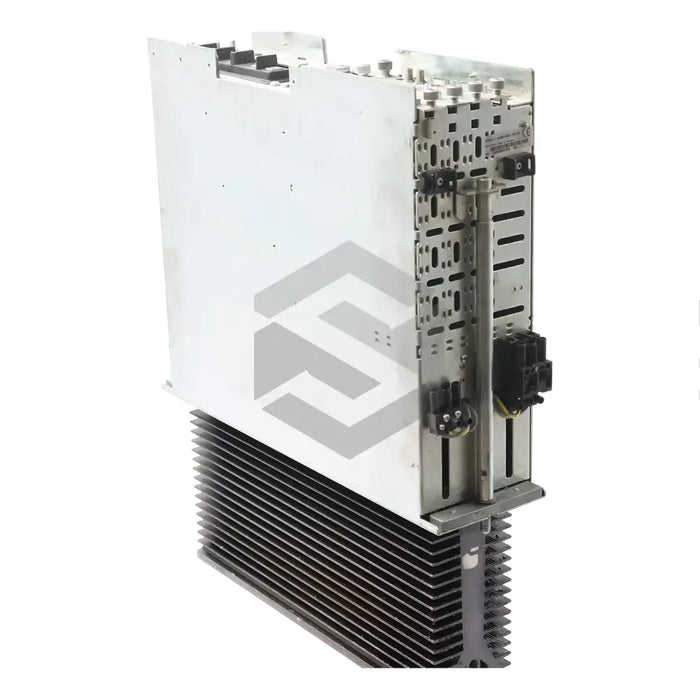

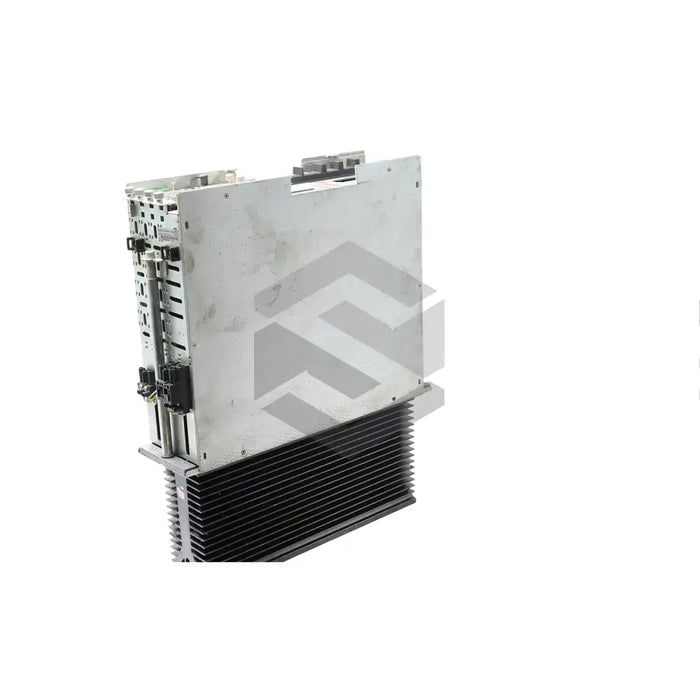

DDS02.1-A100-RS01-03-FW
The DDS02.1-A100-RS01-03-FW drive controller, crafted by Bosch Rexroth Indramat, offers compatibility with left or right connections to power supplies. Its distinguishing features include a versatile SERCOS interface for communication, an array of inputs for travel range limit switches, and sensor inputs, punctuated by a Bb contact that signals readiness to output power. The unit must be stored and transported within a temperature range of -30 to 85°C, preferably with shock dampening supports if required. The device boasts a 95% maximum permissible relative air humidity and dissipates standstill energy depending on the continuous current of the connected motor. Key physical features include an external blower impeller and heatsink, M6 screws on A1, A2, and A3 terminals, and a length of 390mm. While transportation must ensure the device is dry and without electrostatic loads, user interaction includes analog signals through shielded leads, separately packaged plugin modules, and a basic unit with a fault reset key and status display.
