DDS02.1-A100-SK01-00

Original price $0.00 - Original price $0.00
Original price
Request a Quote
$0.00 - $0.00
Current price Request a Quote

Request a quote

Add a Message

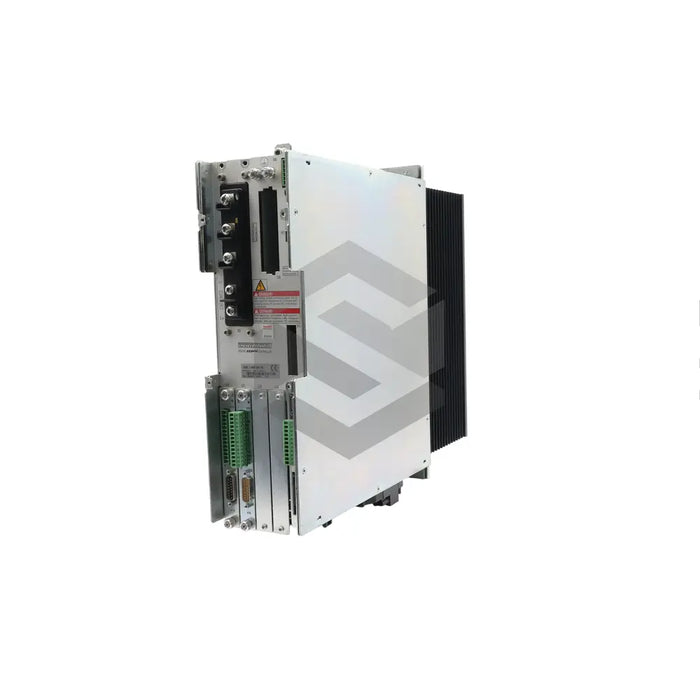

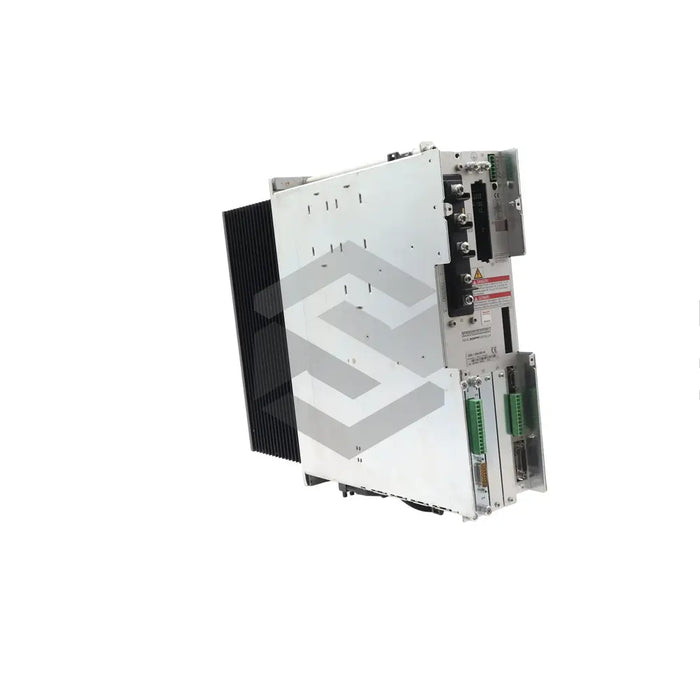

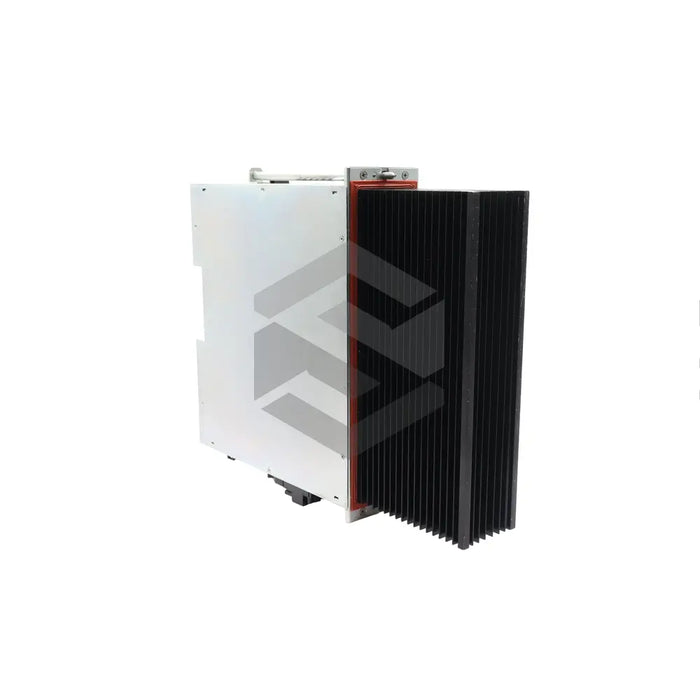

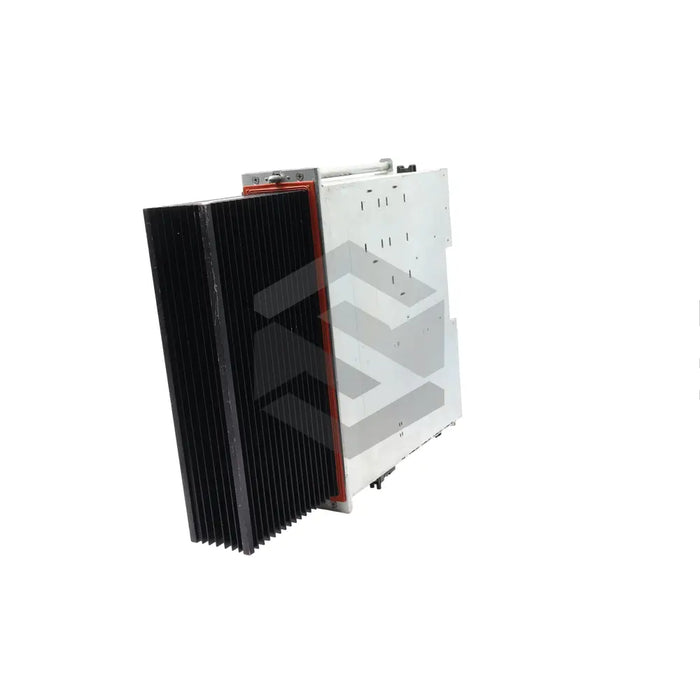

The DDS02.1-A100-SK01-00 is a state-of-the-art drive controller, expertly designed and generated by Rexroth Indramat, a division of Bosch Rexroth. Primarily used for operating synchronous, linear, and frameless motors, it's an integral piece in many motion control systems, part of the DIAX04 drive system. Drawing 300V of DC power through the DC bus rail and consuming 100A of rated current consistently, the drive controller ensures optimal performance. It comes equipped with an efficient air cooling system and needs to be installed in an IP54 protected control cabinet, given its own protection category of IP10. The model features five configurable plug-in slots, with its firmware located in the U5 slot. This model operates best from 0 to 45 degrees Celsius, a maximum of 1000 meters above sea level and is compatible with an RS232 interface, consuming a maximum power of 500 mA when operating at +24VDC.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer


Bosch Rexroth Indramat

Product Model


DDS02.1-A100-SK01-00

Component Type


Drive Controller

Compatible Motors


Synchronous, Linear, Frameless

Drive System


DIAX04

Electrical Power Input


300 V DC

Input Terminals


L-, L+

Output Terminals


A1, A2, A3

Rated Current


100 A

Cooling System


Air cooling

Protection Class


IP10

Required Housing Protection


IP54

Number of Plugin Slots


5

Firmware Slot


U5

Ambient Temperature Range


0 to +45 degree Celsius

Maximum Altitude


1000 meters

Interface Type


RS232

Maximum Power Consumption


500 mA at +24VDC
