DDS02.1-A200-DL22-01-FW

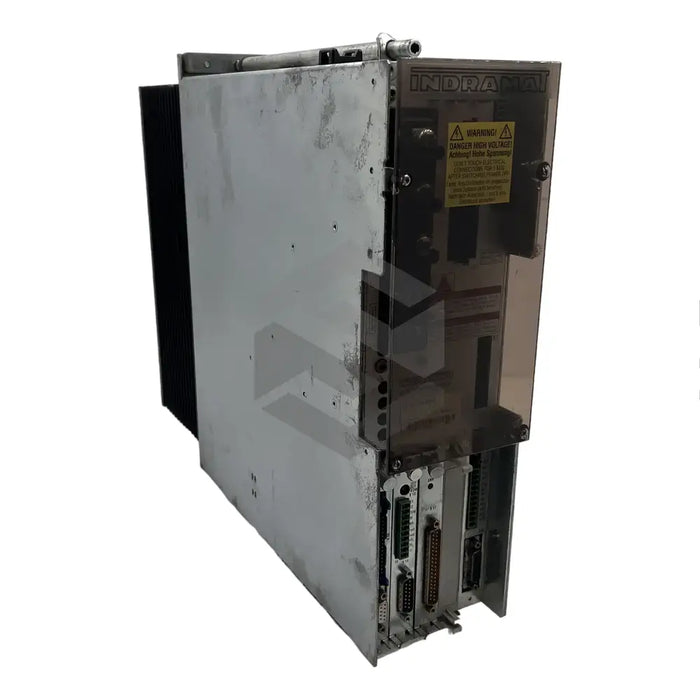

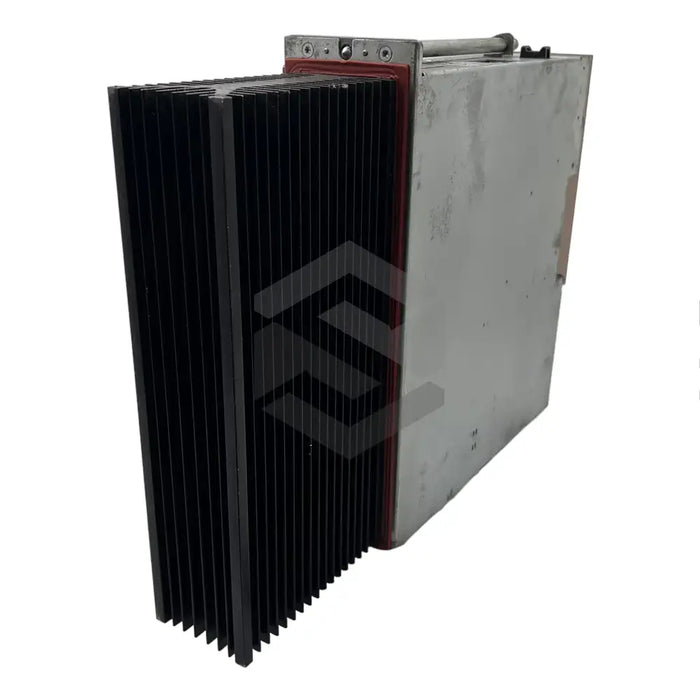

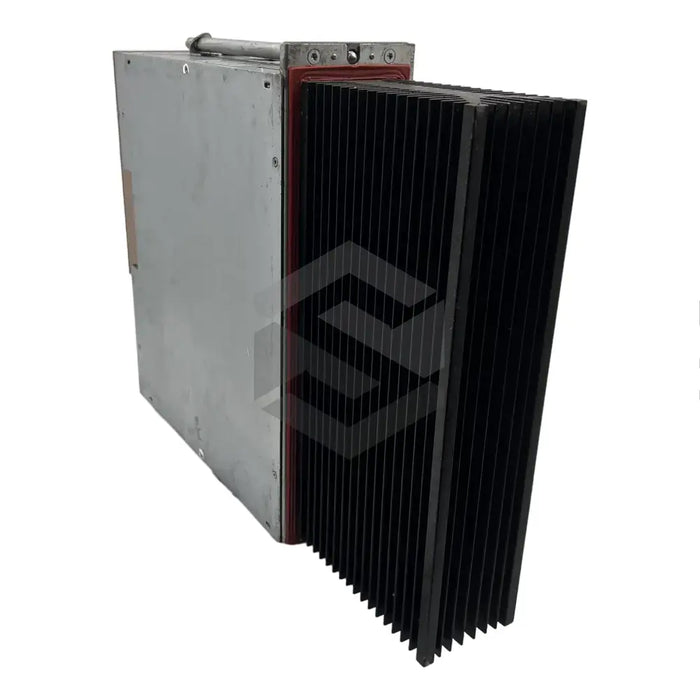

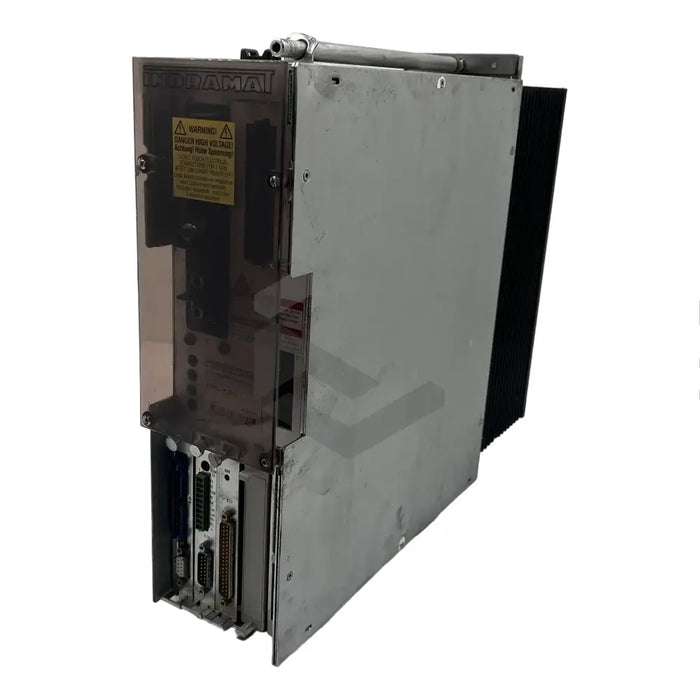

The Bosch Rexroth Indramat DDS02.1-A200-DL22-01-FW is a high-functioning drive controller celebrated for its superior performance and reliability in industrial settings. Key features include a DBS02.1 Interbus-S slave interface, facilitating direct load speed values in compliance with the DRIVECOM standard 22 provisions and handling the I/O level of the DLC. The unit operates with a 24VDC power supply at a rated power consumption of 200 A in continuous use. It provides an optimum performance at an ambient temperature range of 0 to 45 degree Celsius at and below 1000 m/sea level. An important feature to note is its IP20 protection category, granting resistance against any solid particles greater than 12.5 mm. Incorporated within the controller as standard are digital servo feedback and single-axis position control module. Power is fed through the L+ and L- terminals, and supplies a 3-phase rated power to the electrical motor via terminals A1, A2, and A3. Cooling is facilitated through an external blower, maintaining the unit's temperature. The controller also includes a DEA04.1 I/O interface, accommodating versatile connectivity options.
