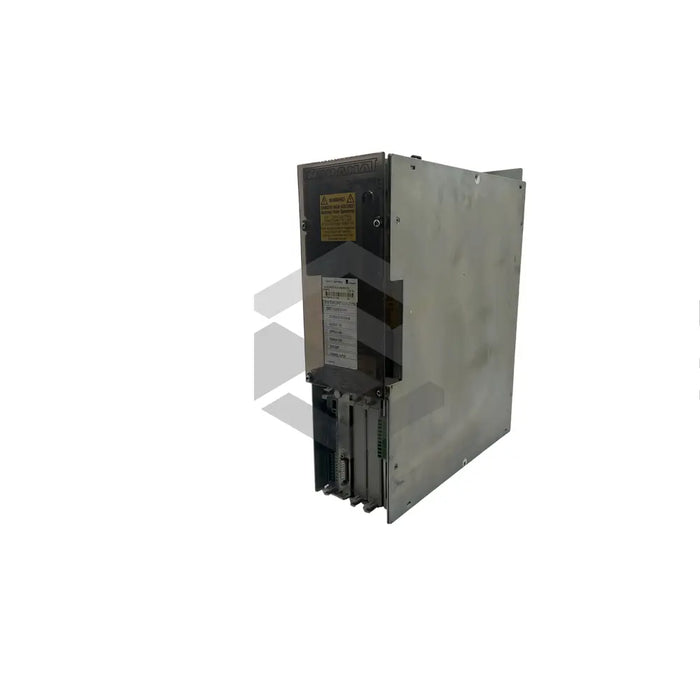

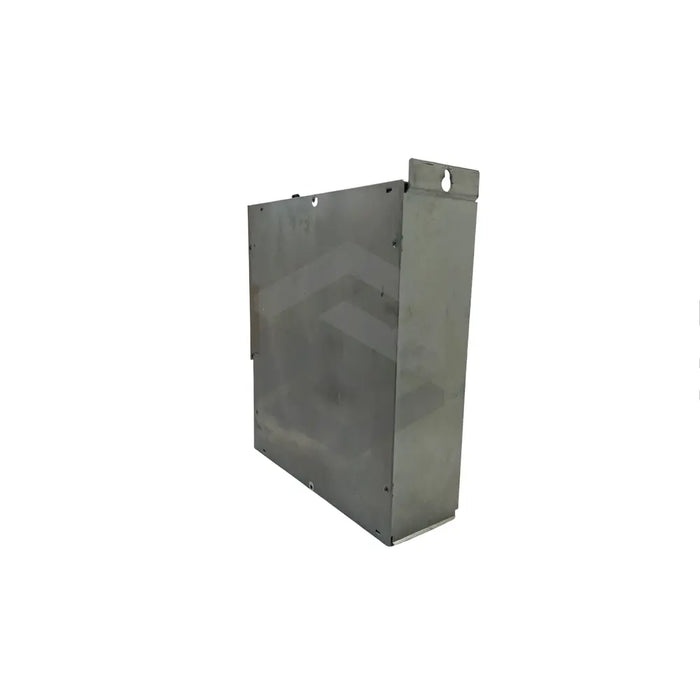

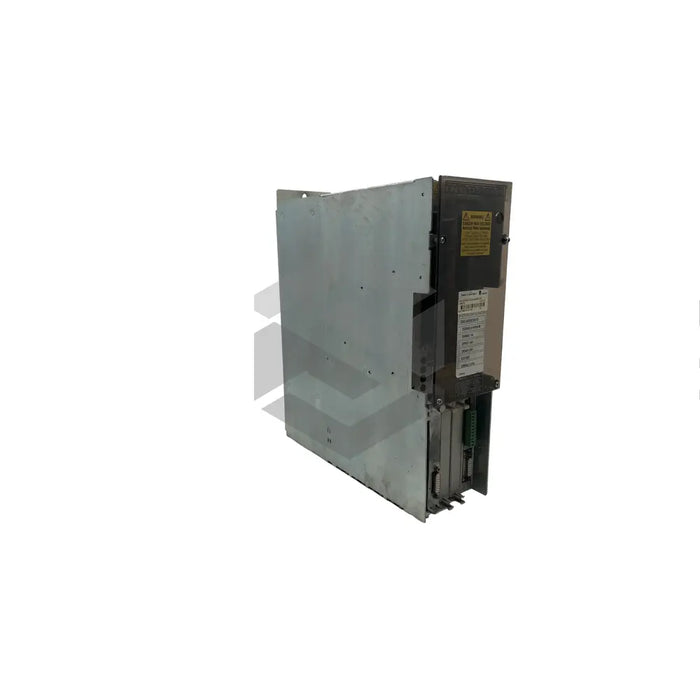

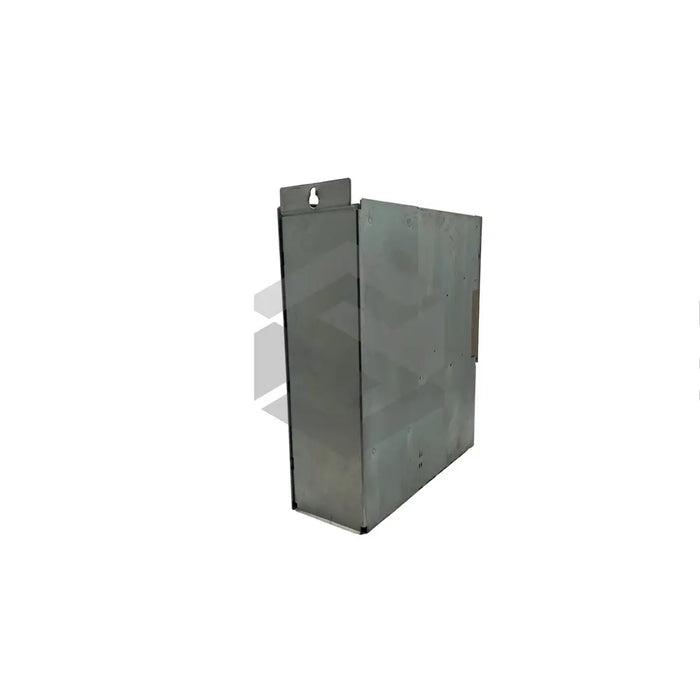

S image of DDS02.1-F200-DA02-00

DDS02.1-F200-DA02-00

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DDS02.1-F200-DA02-00, a product of Bosch Rexroth Indramat, is a control drive intended for use with MDD, MKD and LAR motors. It utilizes DC input power and aligns with a Bosch-regulated power supply that outputs 24 Volts DC. Under acceptable conditions, the drive outputs 200 Amps. With a function ID and version of 02 and 00 respectively, it features an IP10 rated housing defending it from solids larger than 50mm diameter, although it offers no liquid or intentional human access protection. The drive should be mounted near the supply unit within a control cabinet. Being liquid cooled, it operates efficiently between temperatures of 0-45 degrees Celsius and up to 1000 meters elevation. It has an analog communication interface, supports digital servo feedback, and should be vertically installed. The drive's dimensions are 390 x 105 x 325 mm, weighs 11 kg and demands a minimum space allowance for mounting.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Name

DDS02.1-F200-DA02-00

Product Type

DDS 2.1 Drive Controller

Compatibility

MDD, MKD and LAR motors

Input Power Required

DC

DC Output

24 Volts

Output

200 Amps

Function ID

02

Function Version

00

Housing Specifications

IP10 rated housing (Protection from solid objects exceeding 50 millimeters in diameter) No protection from liquids

Optimal Ambient Conditions

Ambient temperature: 0-45 degrees Celsius, Elevation: up to 1000 meters

Communication Interface

Analog

Feedback System

Digital Servo

Orientation

Vertical

Dimensions

390 x 105 x 325 millimeters

Minimum Spacing Recommendations

80 millimeters above the drive, 80 millimeters below the drive, 40 millimeters in front and 25 millimeters behind

Mounting Requirements

M6 screw size, Maximum tightening torque: 5 Nm

Weight

11 kilograms
