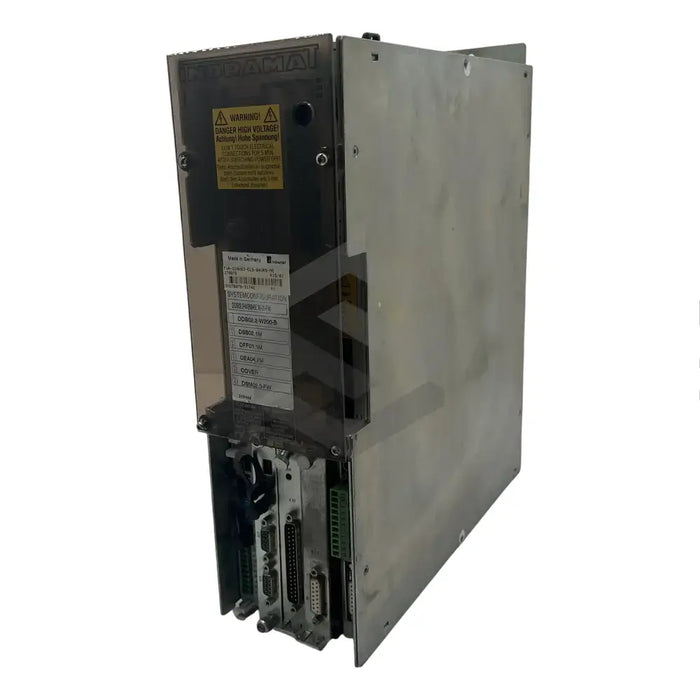

C image of DDS02.1-W015-DS51-02-FW | Main (Front Left)

DDS02.1-W015-DS51-02-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The DDS02.1-W015-DS51-02-FW is an air-cooled drive, constructed by Bosch Rexroth Indramat, that relies on natural convection for cooling. Designed for vertical mounting within a cabinet, it functions optimally at temperatures between 0 and 45 degrees Celsius and altitudes up to 1000 meters. However, it can operate up to 55 degrees Celsius and 5000 meters, albeit with 20% and 35% output derating respectively. It can tolerate storage and transport temperatures ranging from -30 to 85 degrees Celsius. This drive uses digital servo feedback, features a SERCOS communication module, and needs a regulated 24 Volt DC input. The DC bus is rated at 300 Volts DC and the device dissipates nearly 7.5 Watts during operation. The device is rated IP20 and requires a minimum spacing of 80 millimeters at the top and bottom for ventilation. Installation and handling should only be done by trained technicians to avoid injury or damage.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Name

DDS02.1-W015-DS51-02-FW

Cooling Method

Air cooling through natural convection

Ambient Temperature

0 to 45 degrees Celsius

Maximum Operating Temperature

55 degrees Celsius

Temperature Derating

20% at 55 degrees Celsius

Altitude Derating

35% at 5000 meters

Maximum Operating Altitude

5000 meters with derating

Rated Output Current

15 Amps

Temperature Range for Transport and Storage

-30 to 85 degrees Celsius

Connectivity

Digital servo feedback, SERCOS communication module

Protection Class

IP20

Mounting Style

Vertical inside a cabinet

Minimum Spacing Required

80 millimeters on top and bottom sides

Required Input Voltage

24 Volts DC

DC Bus Voltage

300 Volts DC

Heat Dissipation

7.5 Watts

Installation Guidelines

To be installed by trained and qualified technical personnel following safety instructions.
