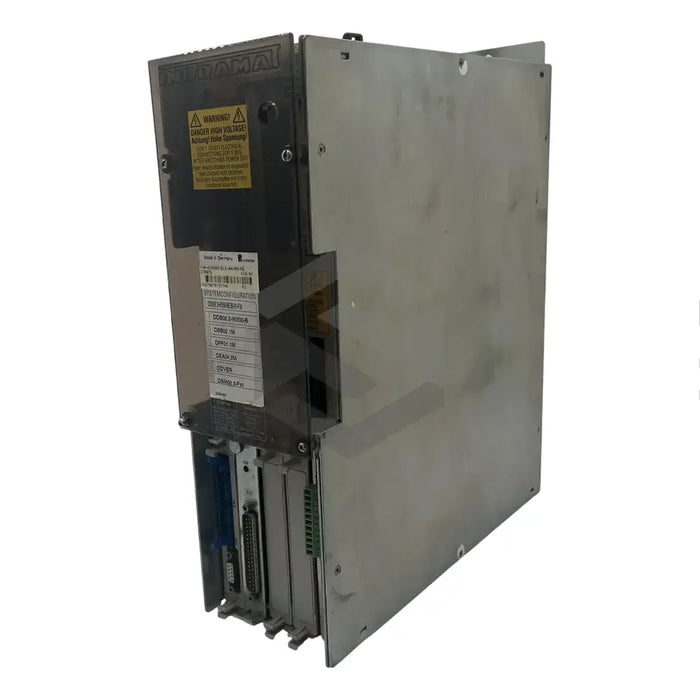

C image of DDS02.1-W015-RL01-01-FW | Main (Front Left)

DDS02.1-W015-RL01-01-FW

by Bosch Rexroth Indramat
$6,784.45 - $6,784.45
$6,784.45
$6,784.45 - $6,784.45
$6,784.45

In Stock, Ships 1 - 3 Days

The DDS02.1-W015-RL01-01-FW is a digital drive controller crafted by Bosch Rexroth Indramat, a leading provider of automation equipment. This intelligent device is developed to operate numerous synchronous and linear motors. Upholding UL standards, its modular design benefits from heat technology to counter excess heat in the control cabinet using interior cooling airflow. It adheres to IP20 protection specifications and should be housed in control cabinets with a minimum IP54 Protection Classification. Running on a 15A rated current, it connects to a 24VDC power supply module. The controller's firmware module is available separately and can be customized per specific tasks. It features plug-in slots (U1 – U5) and displays error signals through an H1 status display with an S1 fault reset key. It functions optimally between 0 and +45 degrees Celsius, can endure up to +55 degrees Celsius, and is enhanced with resolver feedback and a single-axis positioning module. Slot U1 harbours the DLC01.1 module, U2 the DEA04.1 interface, whereas U3 - U4 are empty and U5 houses the firmware module DSM02.1-FW.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

DDS02.1-W015-RL01-01-FW

Type

Digital Intelligent Drive Controller

Design

Modular

UL Standards Compliant

Yes

Cooling System

Heat technology: cooling airflow inside control cabinet

IP Protection

IP20 (suitable for minimum IP54 protection control cabinet)

Rated Current

15 A

Power Supply Requirement

24 VDC supply module

Firmware Module

Order separately

Slots on Basic Unit

Plug-in slots U1 - U5, Firmware module slot in U5

Status Display & Reset Key

H1 status display and S1 fault reset key

Ambient Operating Temperature

0 to +45 degree Celsius

Max Bearable Temperature

Up to +55 degree Celsius

Installed Features

Resolver feedback, single-axis positioning module, DLC01.1 in U1 slot, DEA04.1 in U2 slot, DSM02.1-FW in U5 slot

Availability

Order from Servo Supplier.
