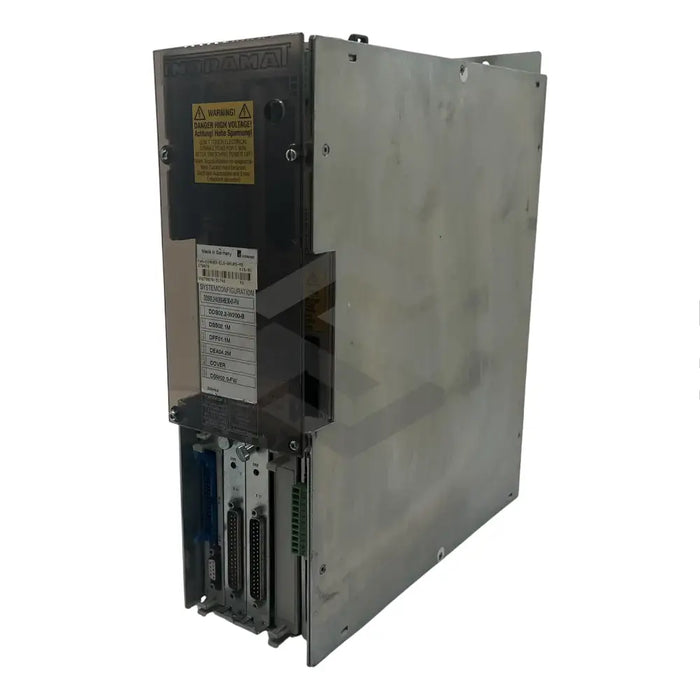

C image of DDS02.1-W015-RL02-01-FW | Main (Front Left)

DDS02.1-W015-RL02-01-FW

by Bosch Rexroth Indramat
$7,450.32 - $7,450.32
$7,450.32
$7,450.32 - $7,450.32
$7,450.32

In Stock, Ships 1 - 3 Days

Bosch Rexroth Indramat's DDS02.1-W015-RL02-01-FW leverages cutting-edge manufacturing technologies to offer superior control and monitoring for MDD and MKD synchronous motors as well as LAR and LAF inductance linear motors. As part of a digital intelligent drive system, this controller works most effectively with TVM and KDV power supply modules requiring a 24 VDC power supply for connection. The DDS02.1 controller, operating at ±15 VDC, uses 150 mA of power whilst at 24 VDC draws 500 mA of power. It thrives at an optimal ambient temperature of up to +45 degrees Celsius and an installation height up to 1000 m/sea level, maintaining system temperature with in-built heat technology. Constructed to American standards, it can handle continuous currents of 15 A and features a resolver feedback module for precise positioning. The firmware module DSM02.1-FW must be purchased separately. The controller is modular, featuring a DLC01.1-FW single-axis positioning module in Slot 1, and a DEA04.1 and DEA05.1 input/output interface module in the U2 and slot 3 respectively while slot 4 remains unoccupied.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

DDS02.1-W015-RL02-01-FW

Standard

American

Associated Devices

MDD synchronous motor, MKD synchronous motor, LAR inductance linear motor, LAF inductance linear motor

System

Digital intelligent drive system

Associated Power Supply Modules

TVM and KDV

Required Power Supply Module to Connect

Regulated 24 VDC

Operating Power at ±15 VDC

150 mA

Operating Power at 24 VDC

500 mA

Maximum Ambient Temperature Range

+45 degree Celsius

Maximum Installation Height

1000 m/sea level

Cooling Technology

Heat Technology

Continuous Current

15 A

Feedback Module

Resolver Feedback Module

Firmware Module

DSM02.1-FW

Slot 1 Equipped With

DLC01.1-FW Single-Axis Positioning Module

Slot 2 Equipped With

DEA04.1 Input/Output Interface Module

Slot 3 Equipped With

DEA05.1 Input/Output Interface Module

Slot 4

Empty.
